Harry Bissell - BBD HELL

After way too many hours of scanning and rescanning and just generally proving how NOT to scan in a manual, here it is, the official Panasonic Bucket Brigade Devices databook.
Please don't give me too much grief about the HTML, I wrote a shell script to generate it.

Many thanks to Harry for letting me waste my time on this!

All pages were scanned at 200dpi. I found this to be completely readable down to the smallest componant values in the schematics. I can't vouch for the png's, but I tested the PDF and everything was zoomable to readability. The TIF files are the original scanner format and are 3.5megs each so they are only only if you are going for a printable version or something. Personally I'd grab the PDF.
-Tom

16meg PDF of the whole thing
Now here is each individual page in png and tif	PNG	TIF
Front Cover
Inside Front Cover Contents

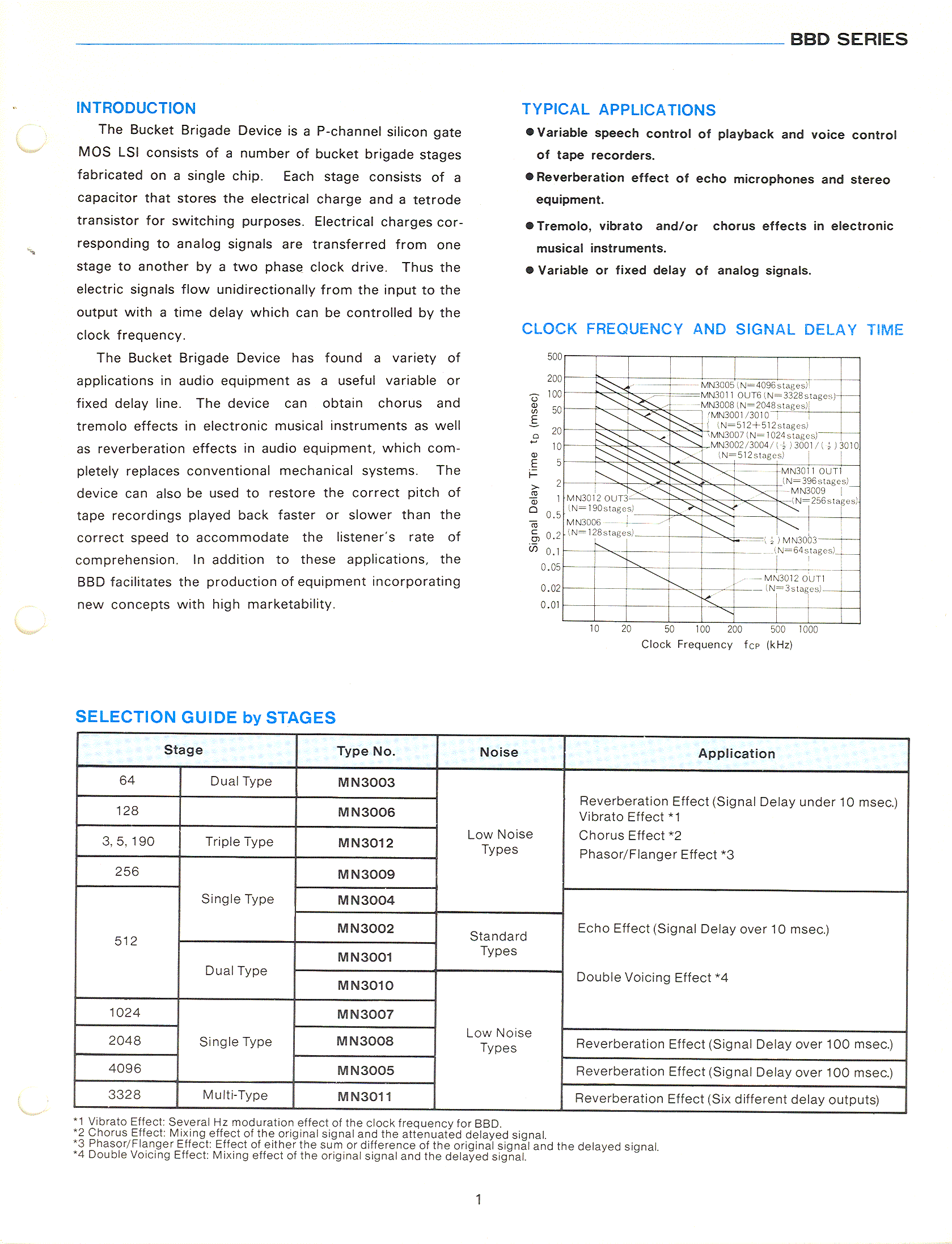

Page 1 Typical Applications Clock Frequency and Signal Delay Time Selection Guide by Stages
Page 2 BBD Quick Reference Table

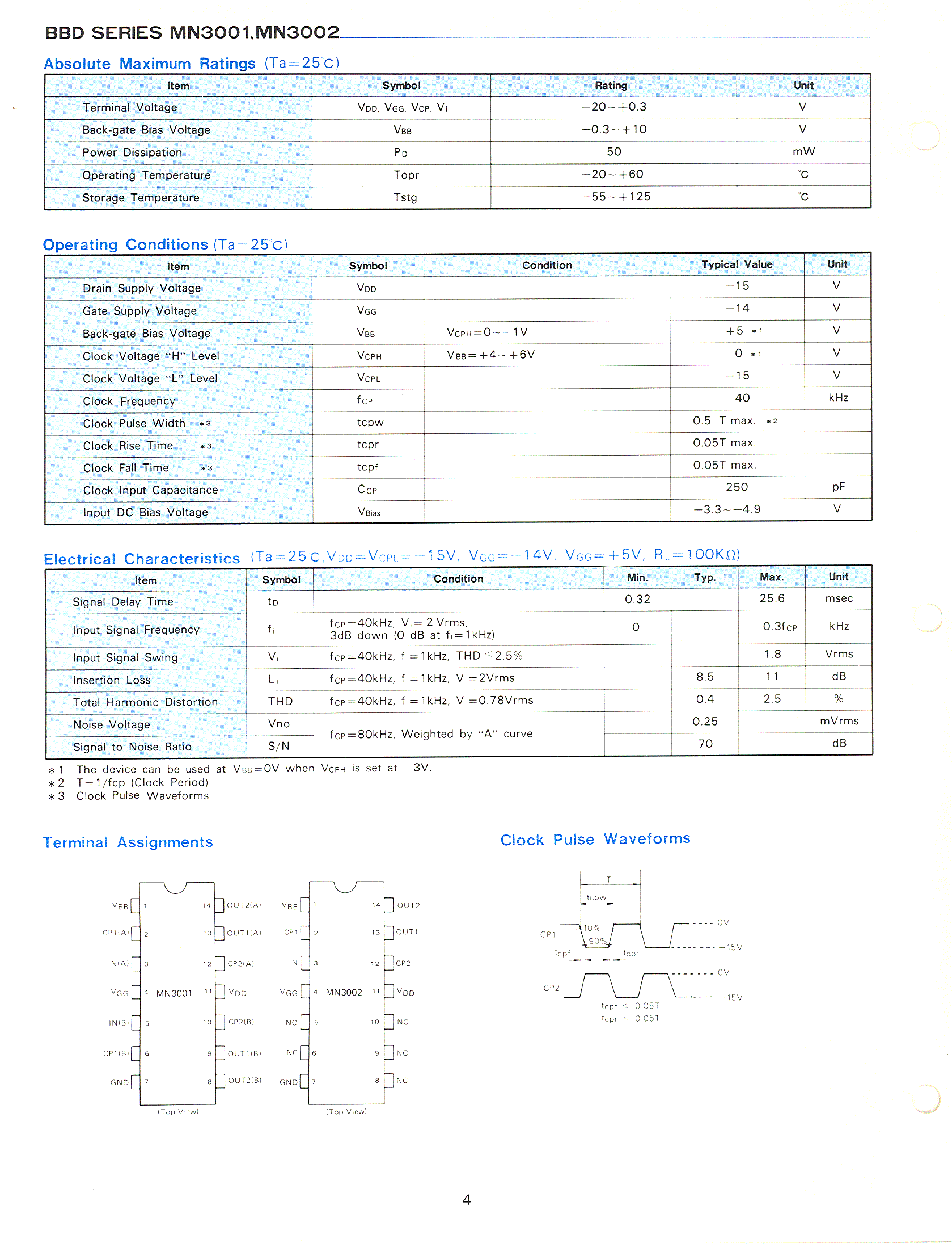

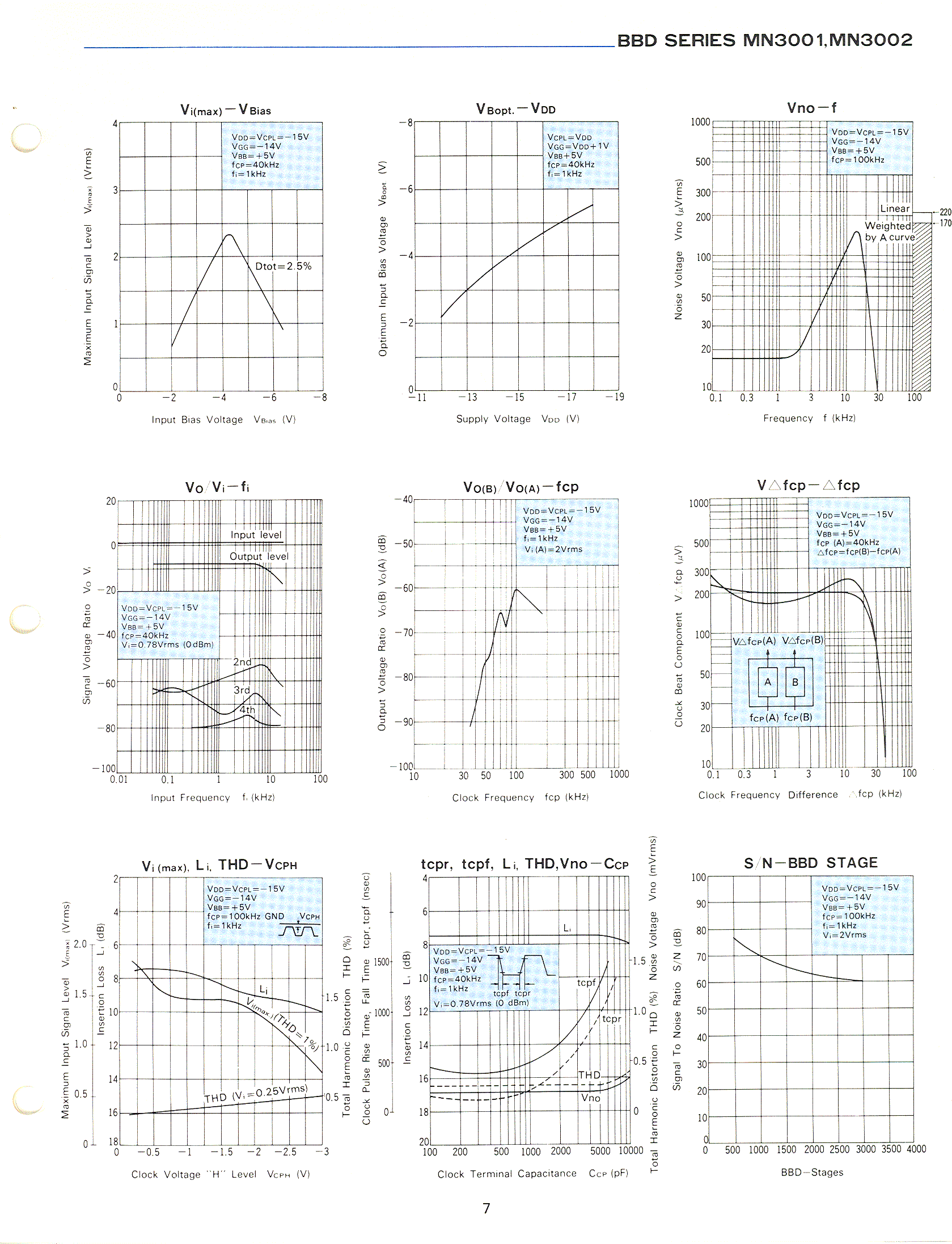

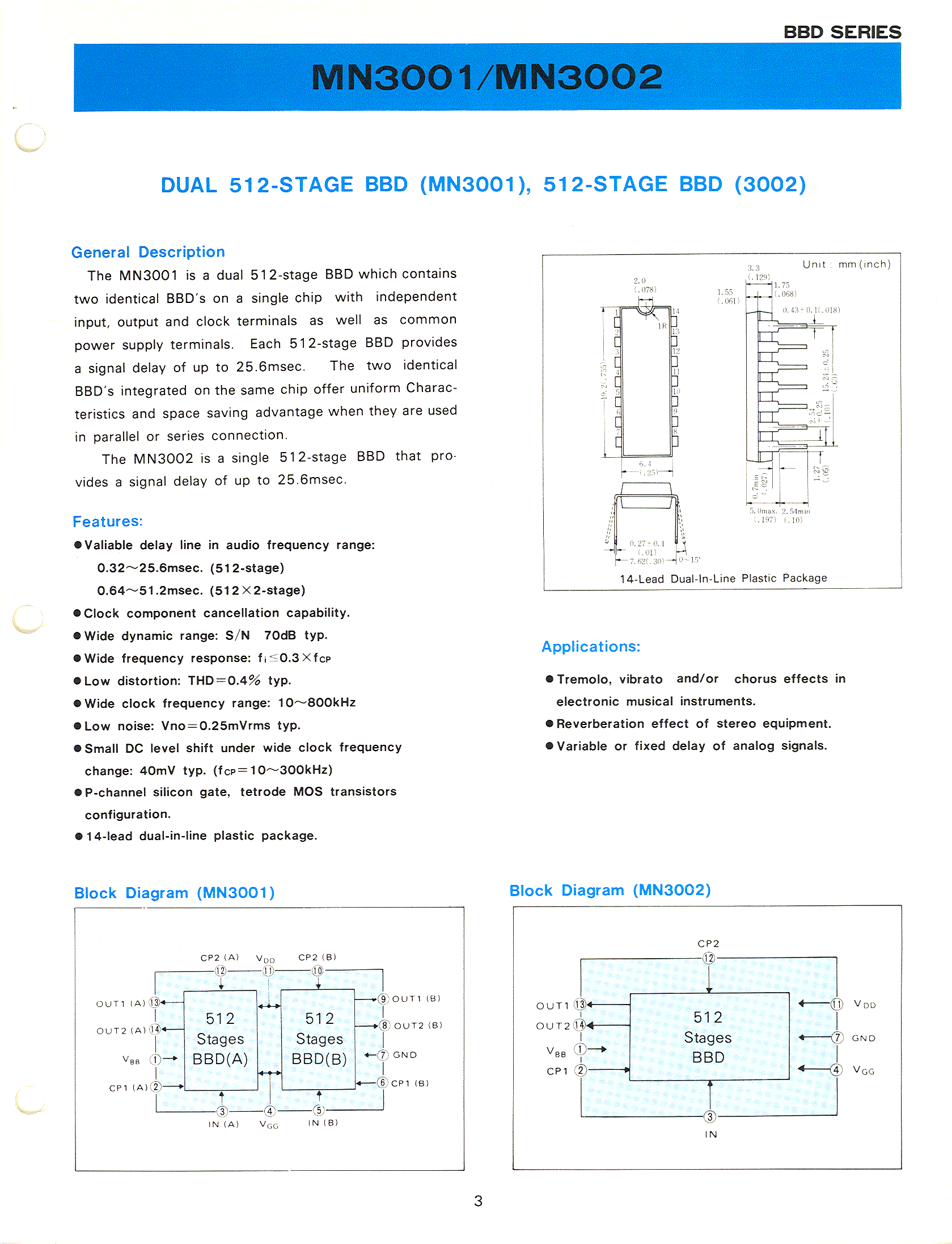

Page 3 MN3001,MN3002
Page 4

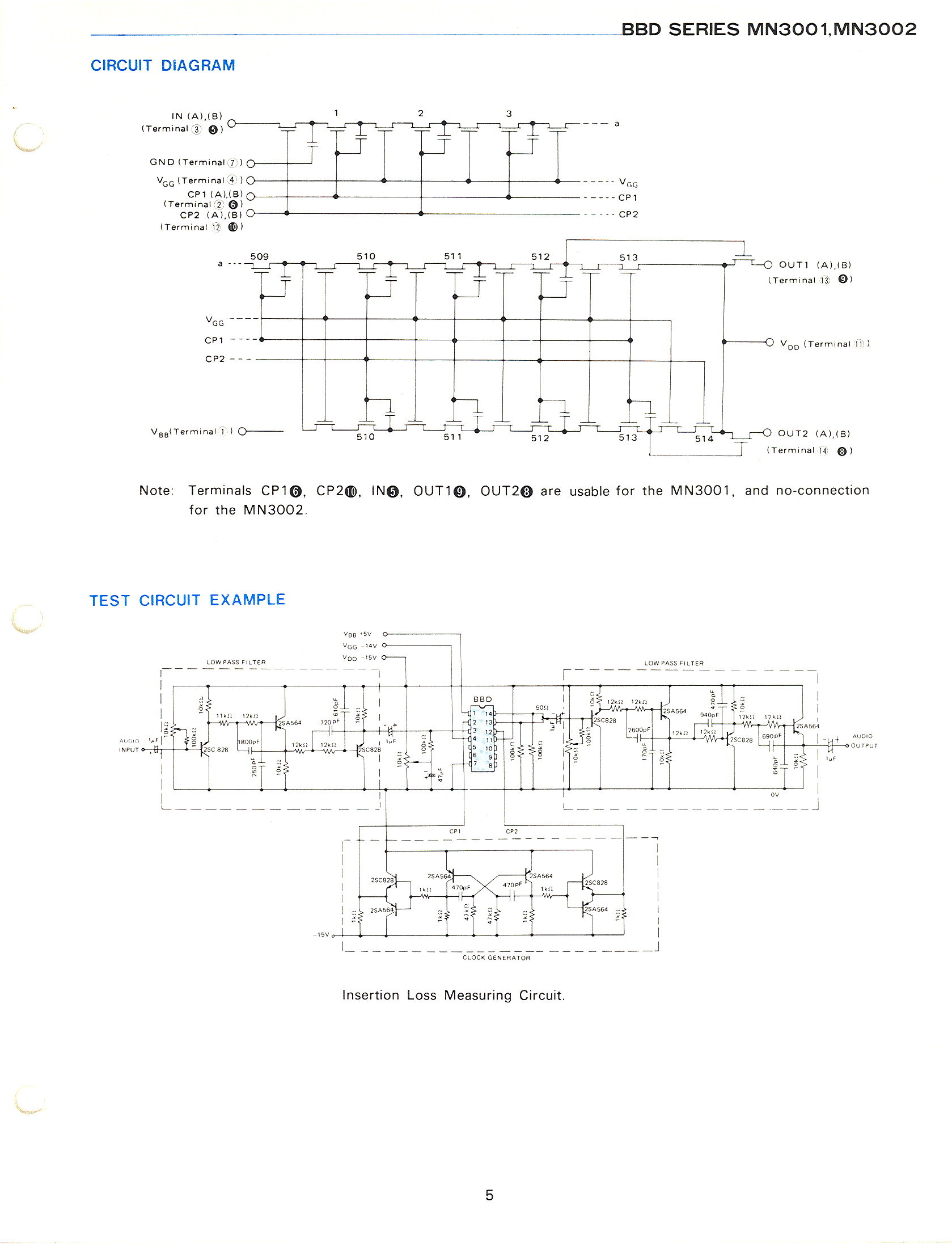

Page 5

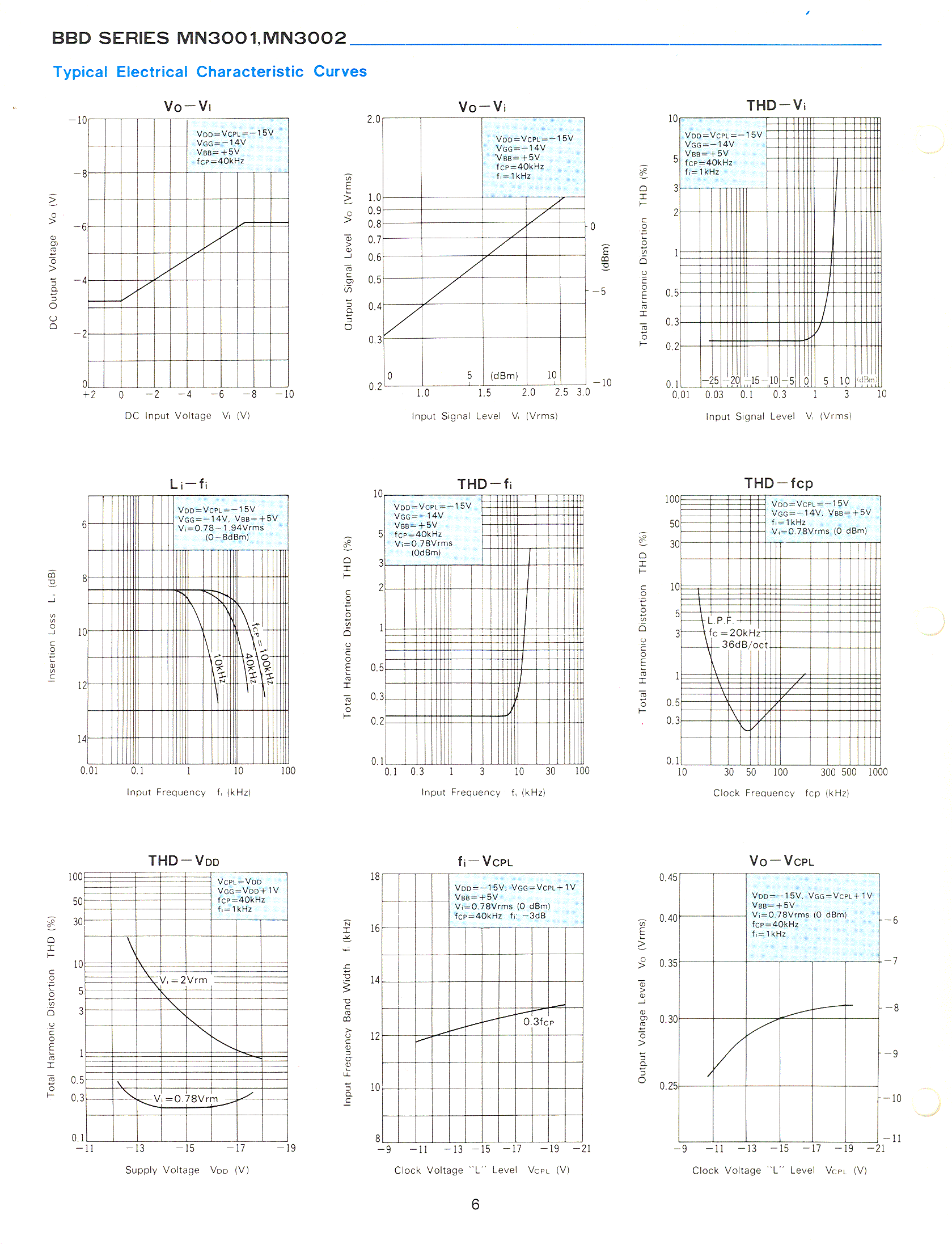

Page 6

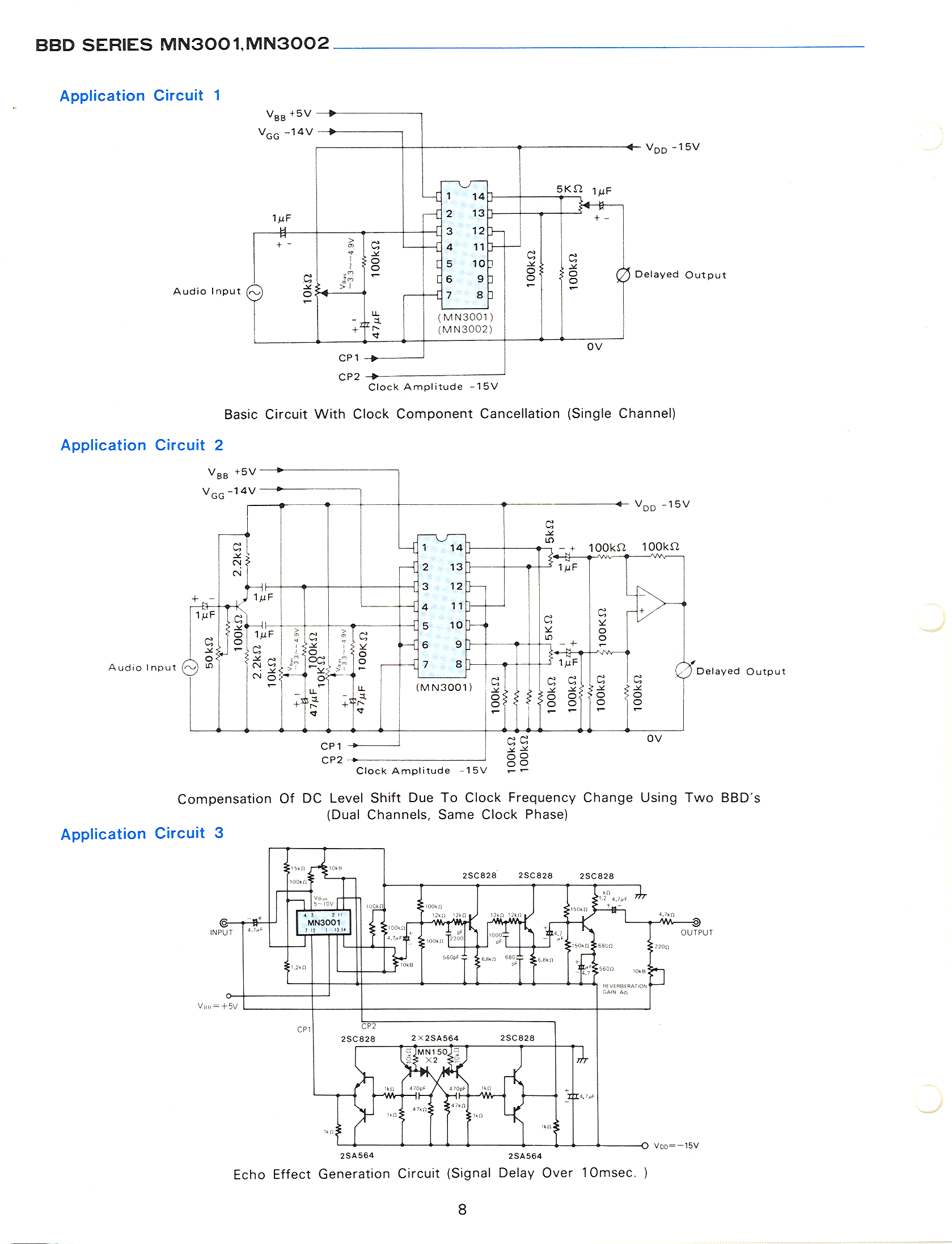

Page 7
Page 8

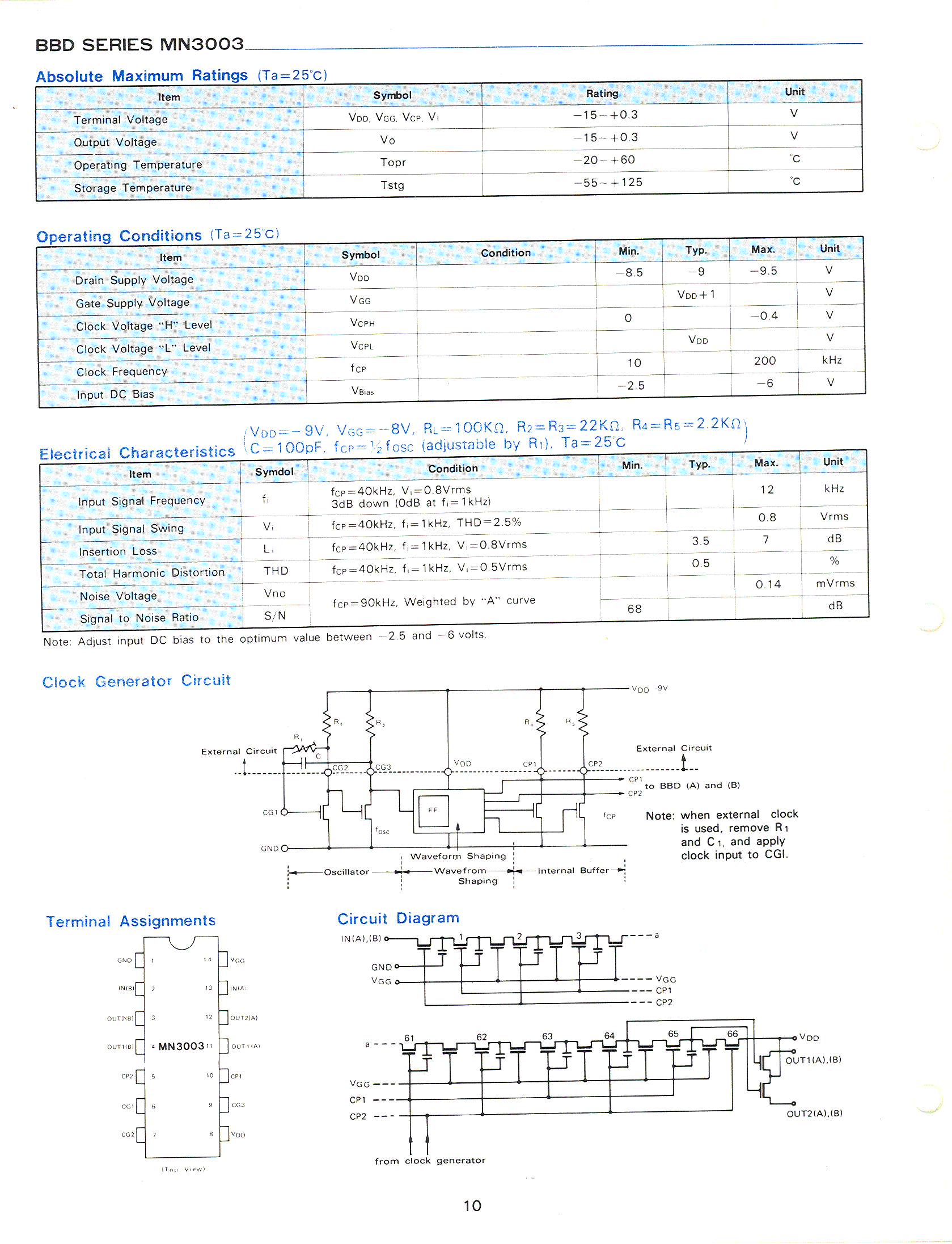

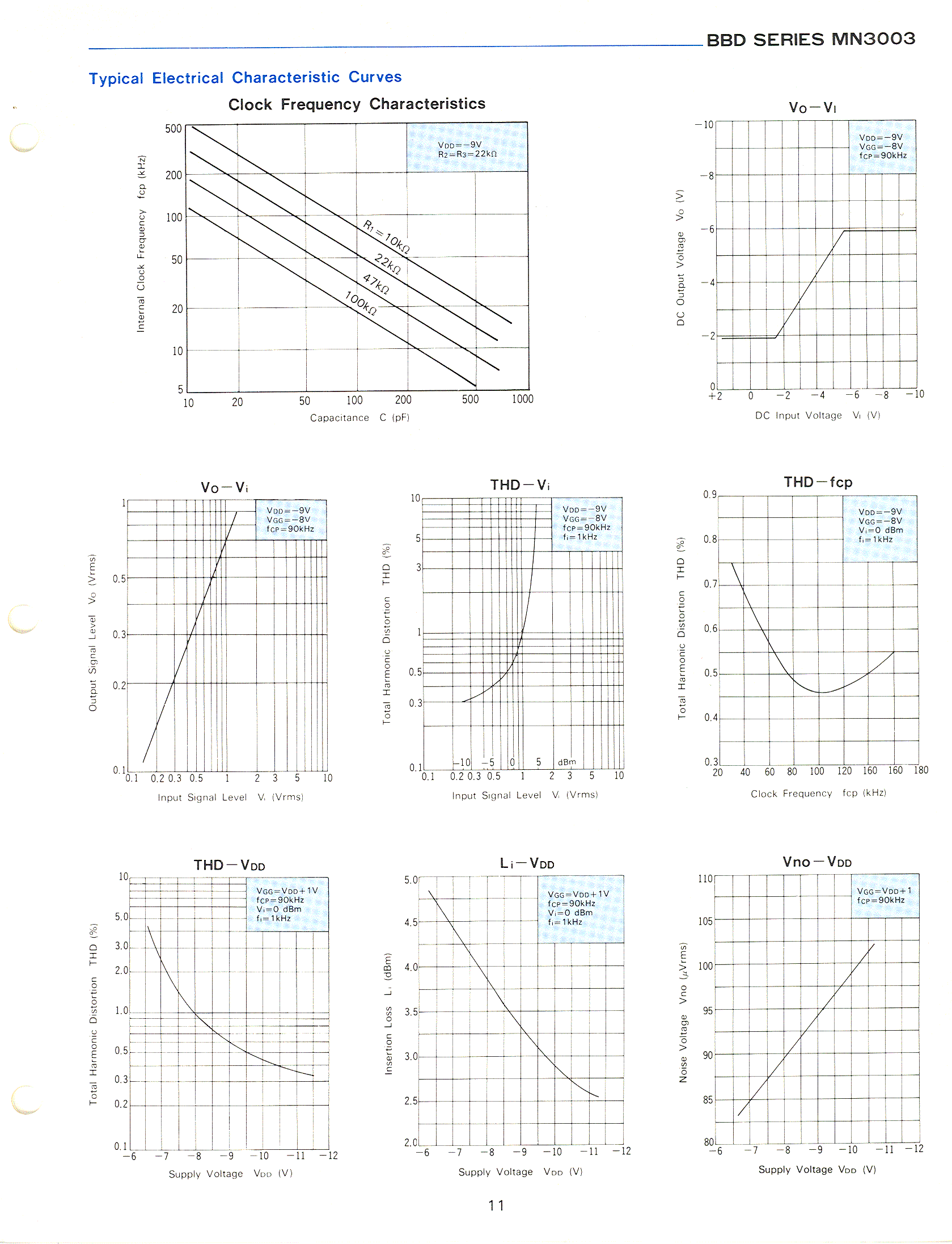

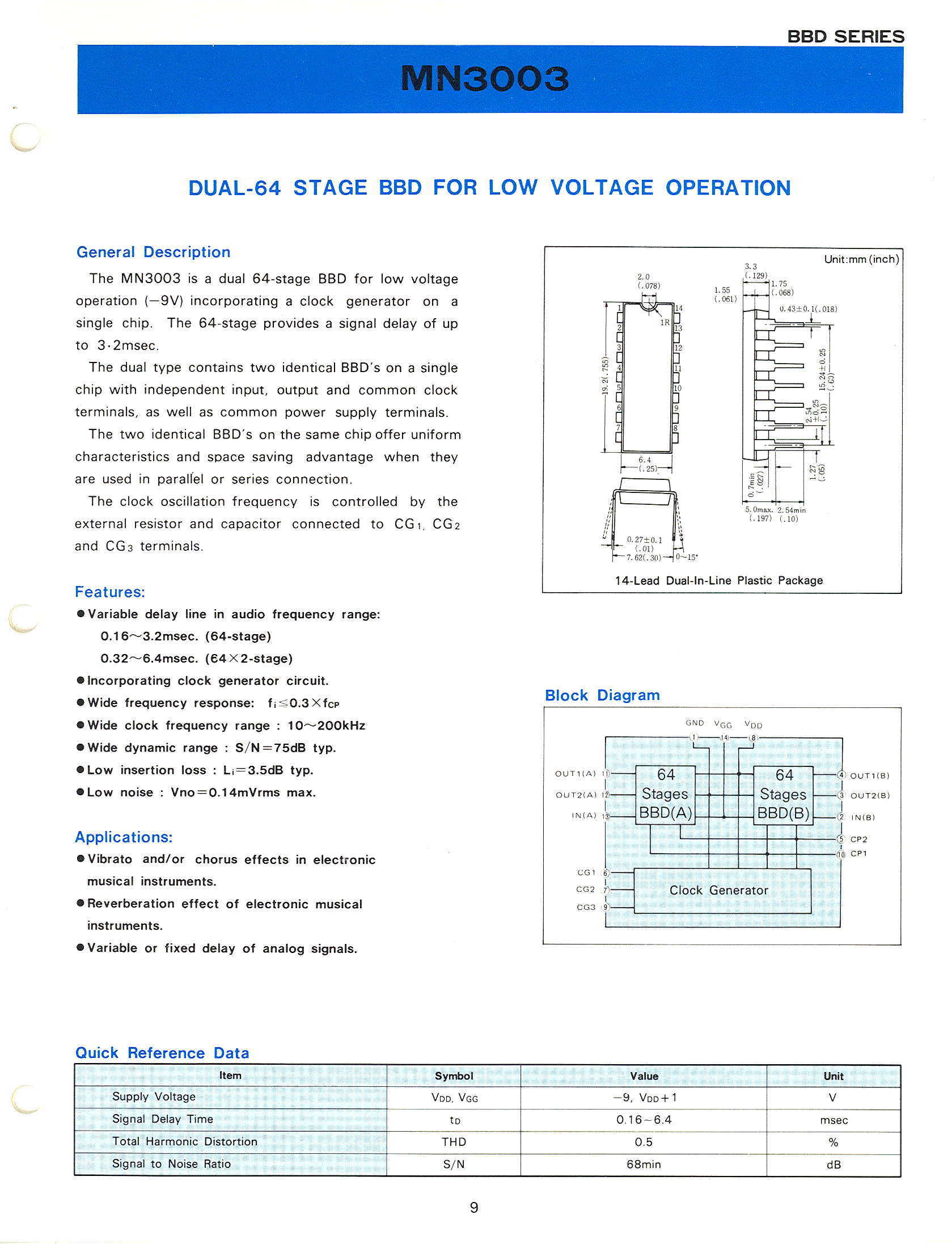

Page 9 MN3003
Page 10
Page 11

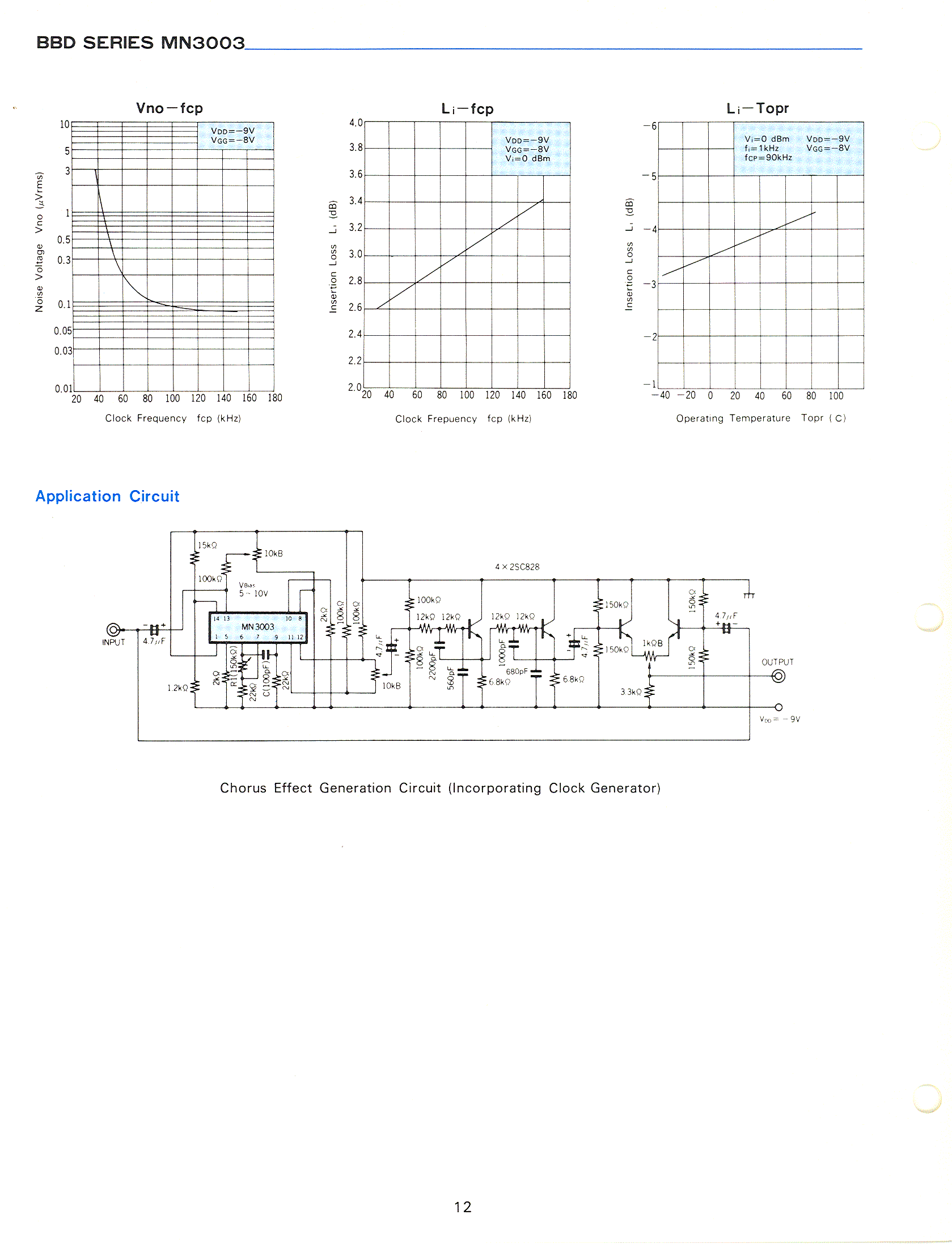

Page 12

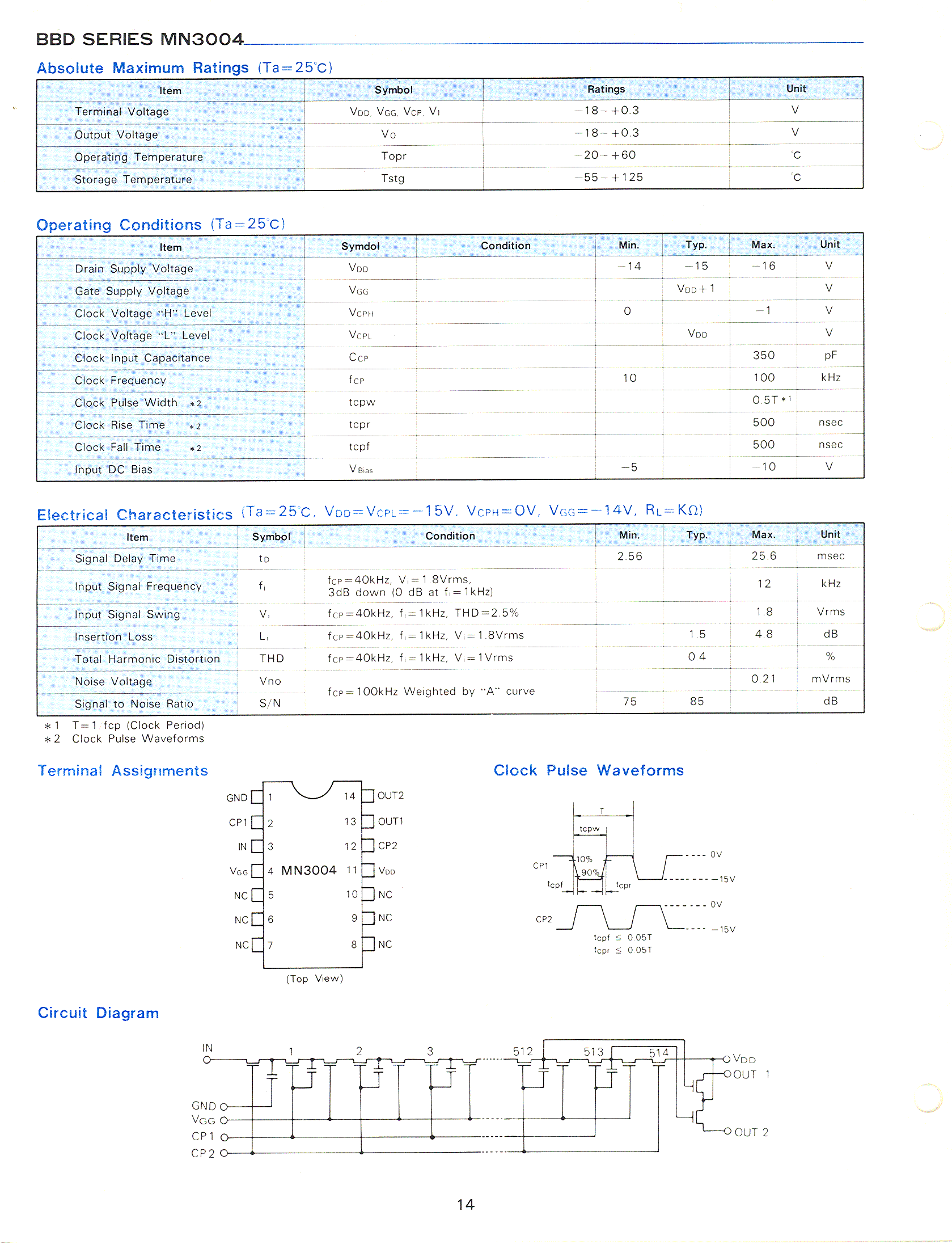

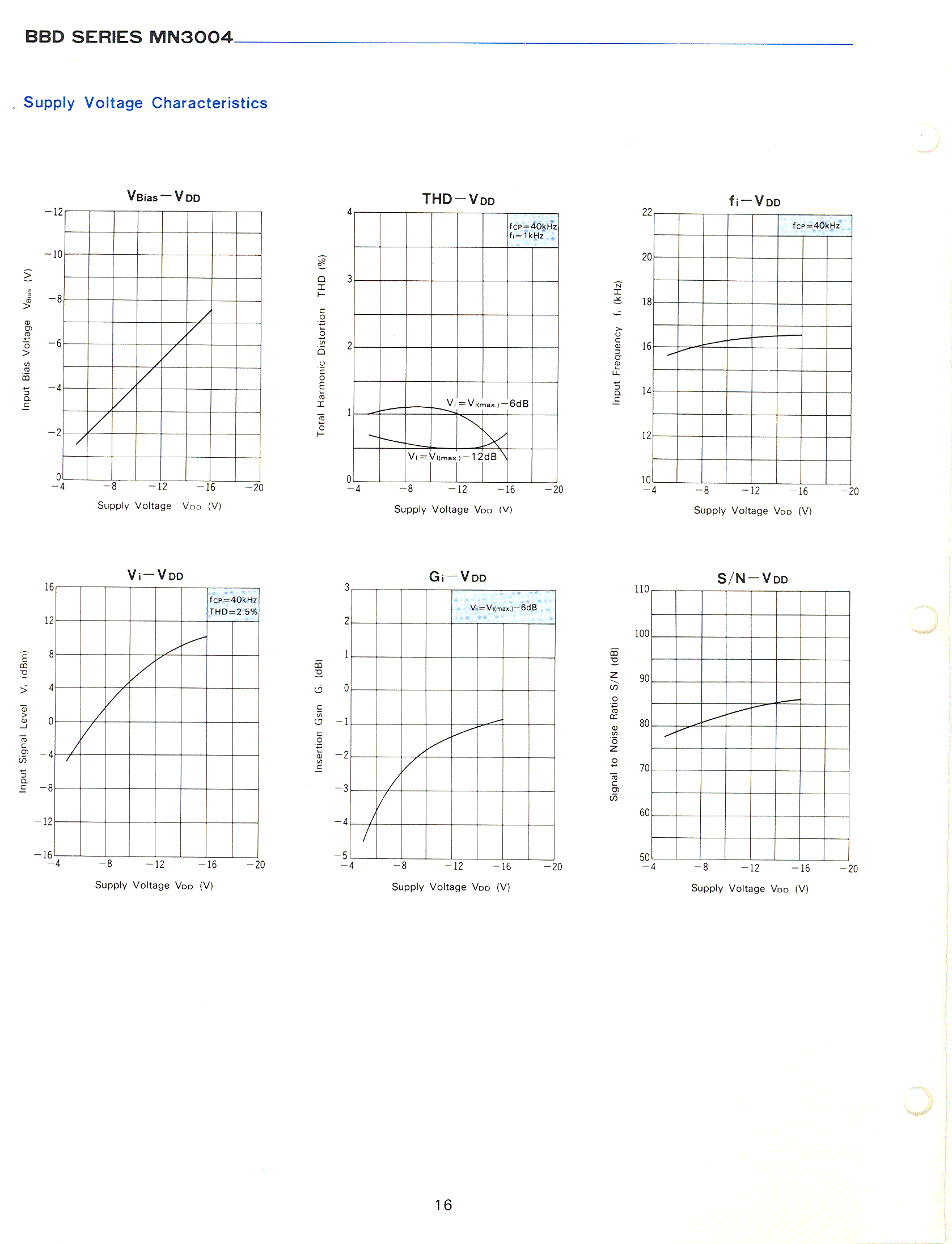

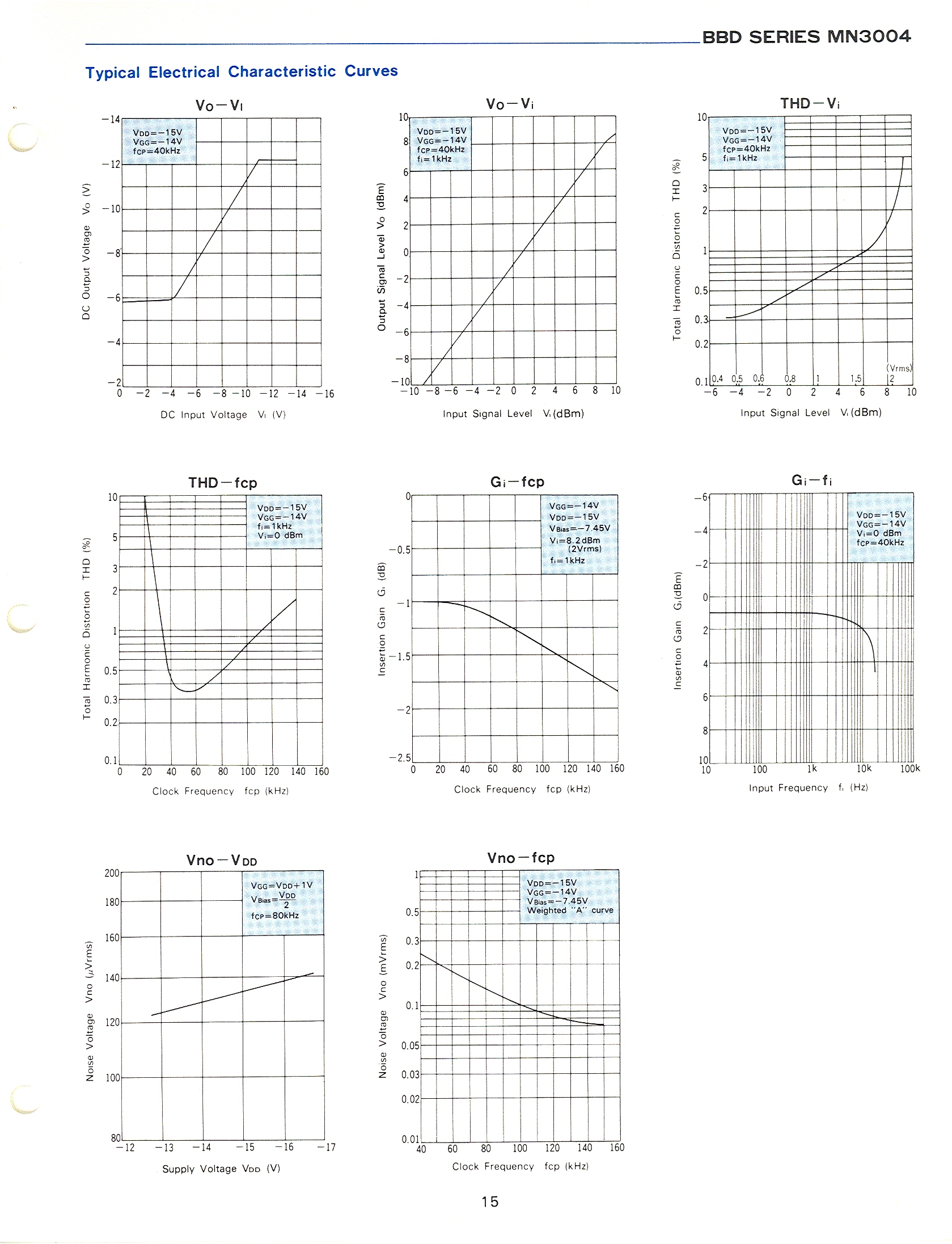

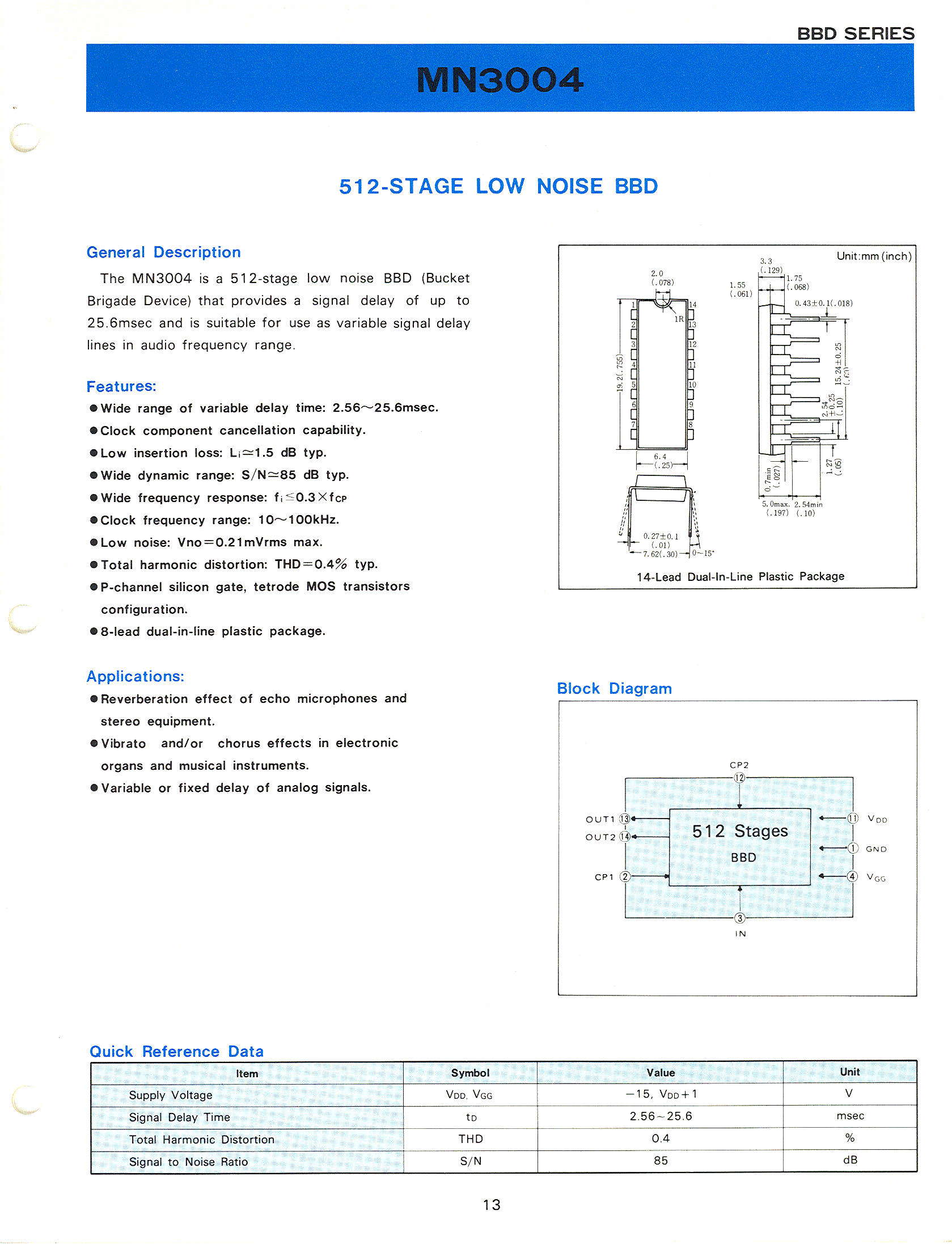

Page 13 MN3004
Page 14
Page 15
Page 16

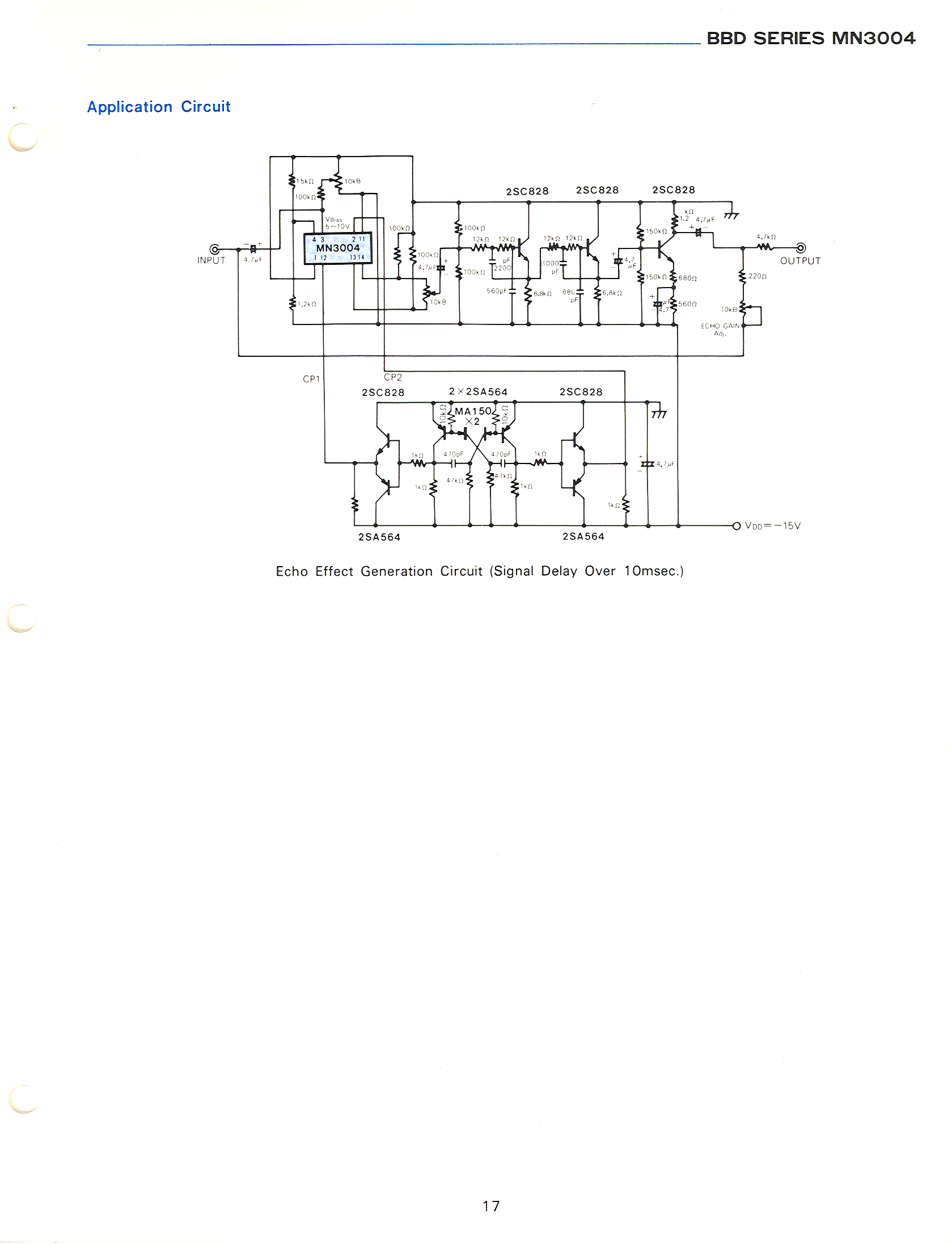

Page 17

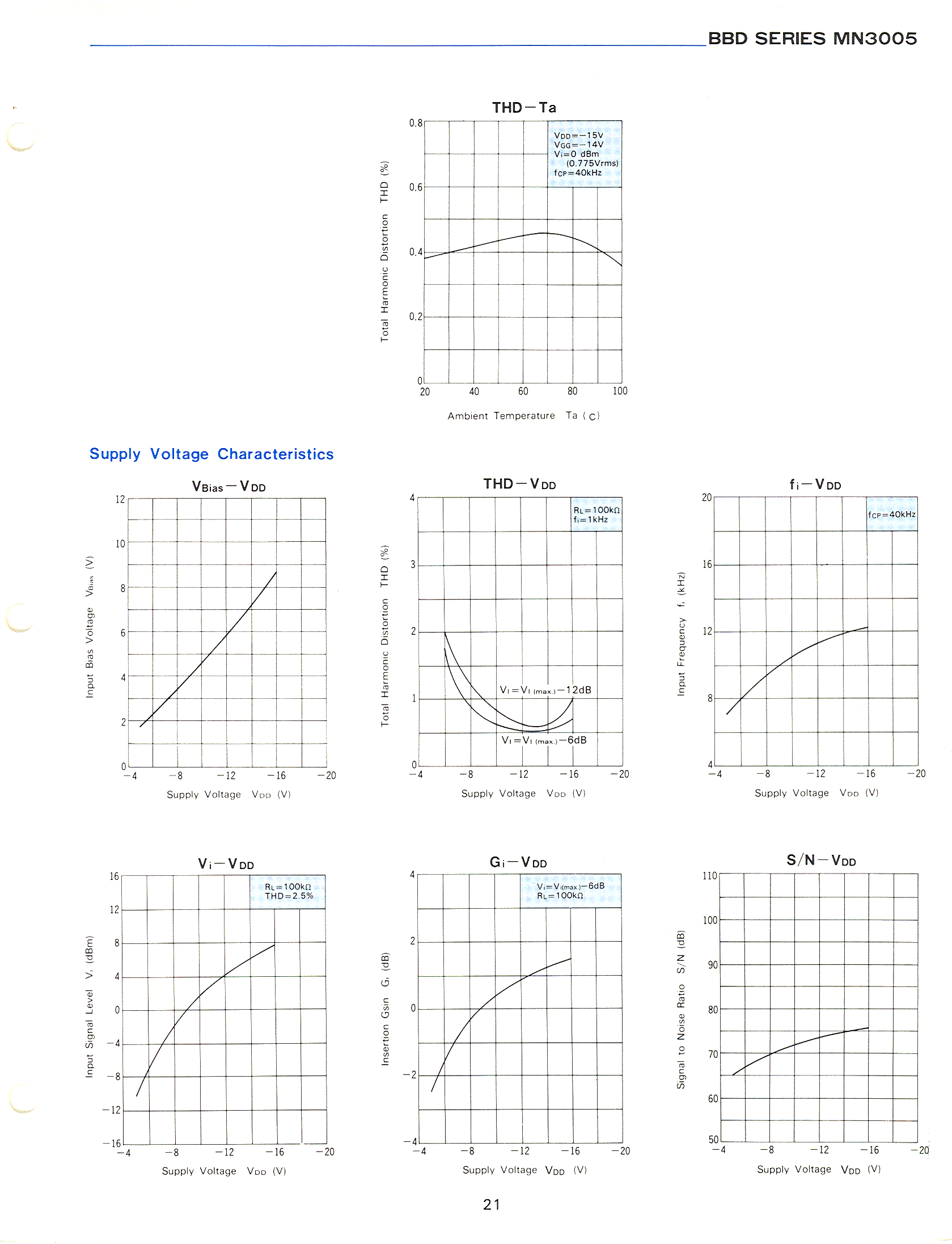

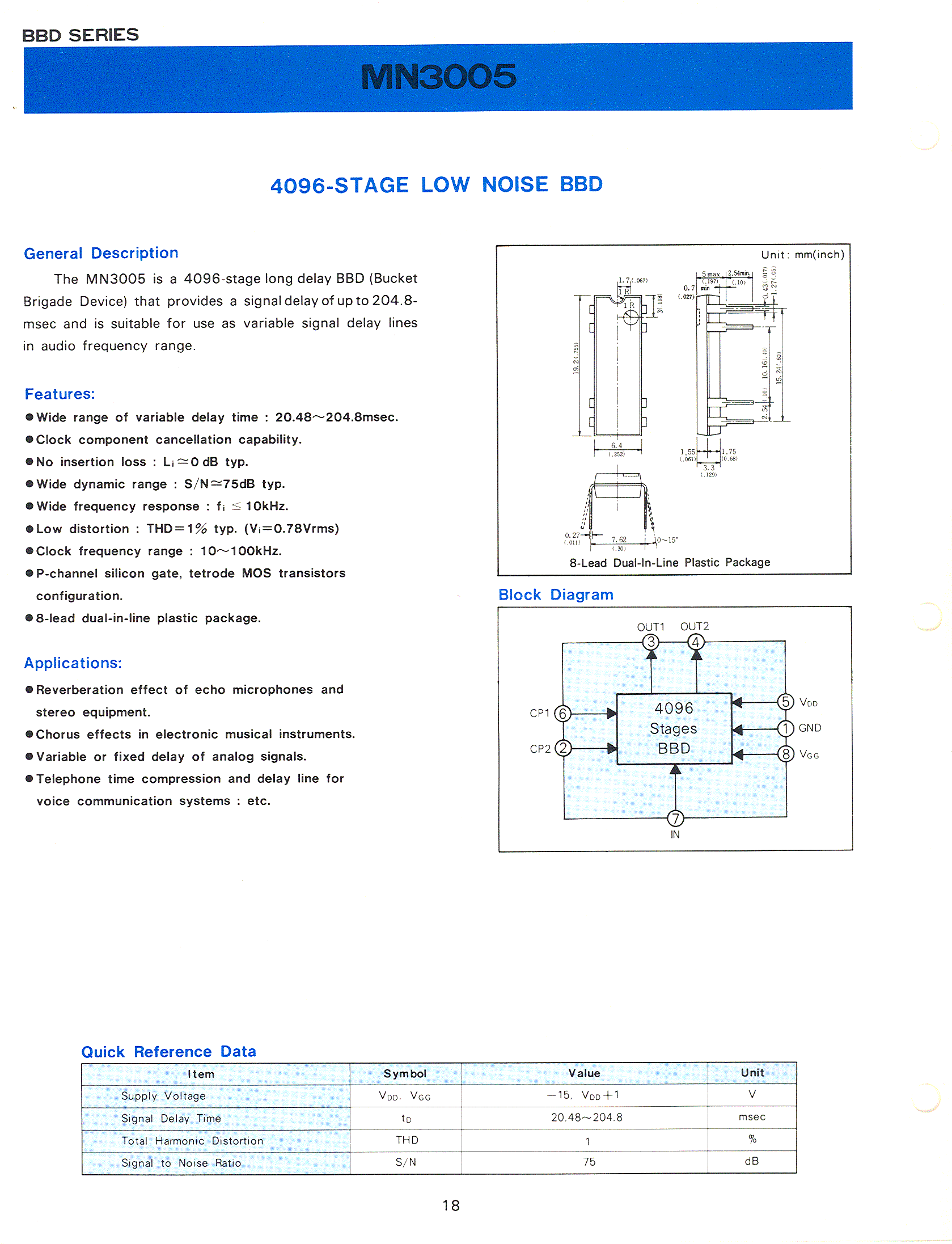

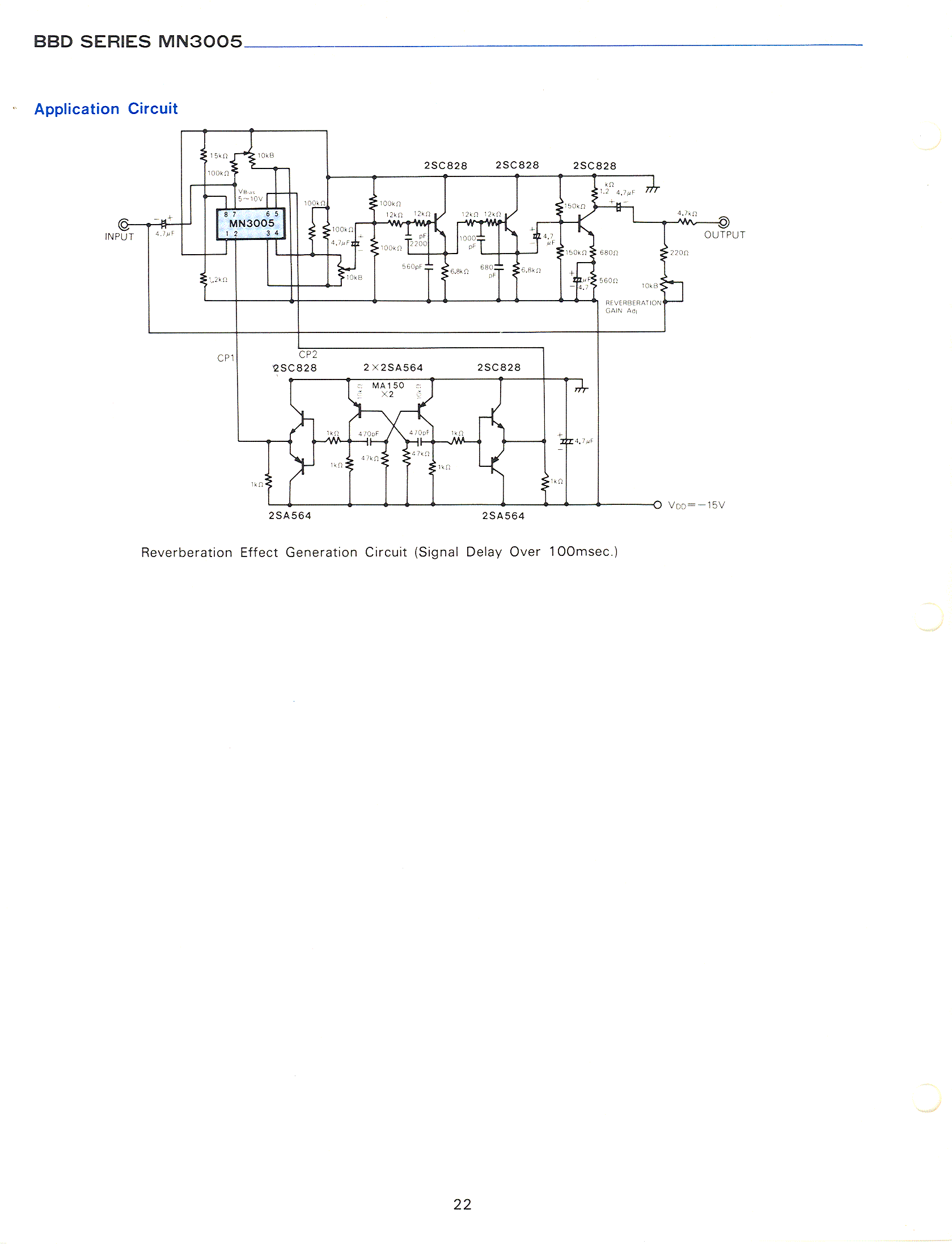

Page 18 MN3005

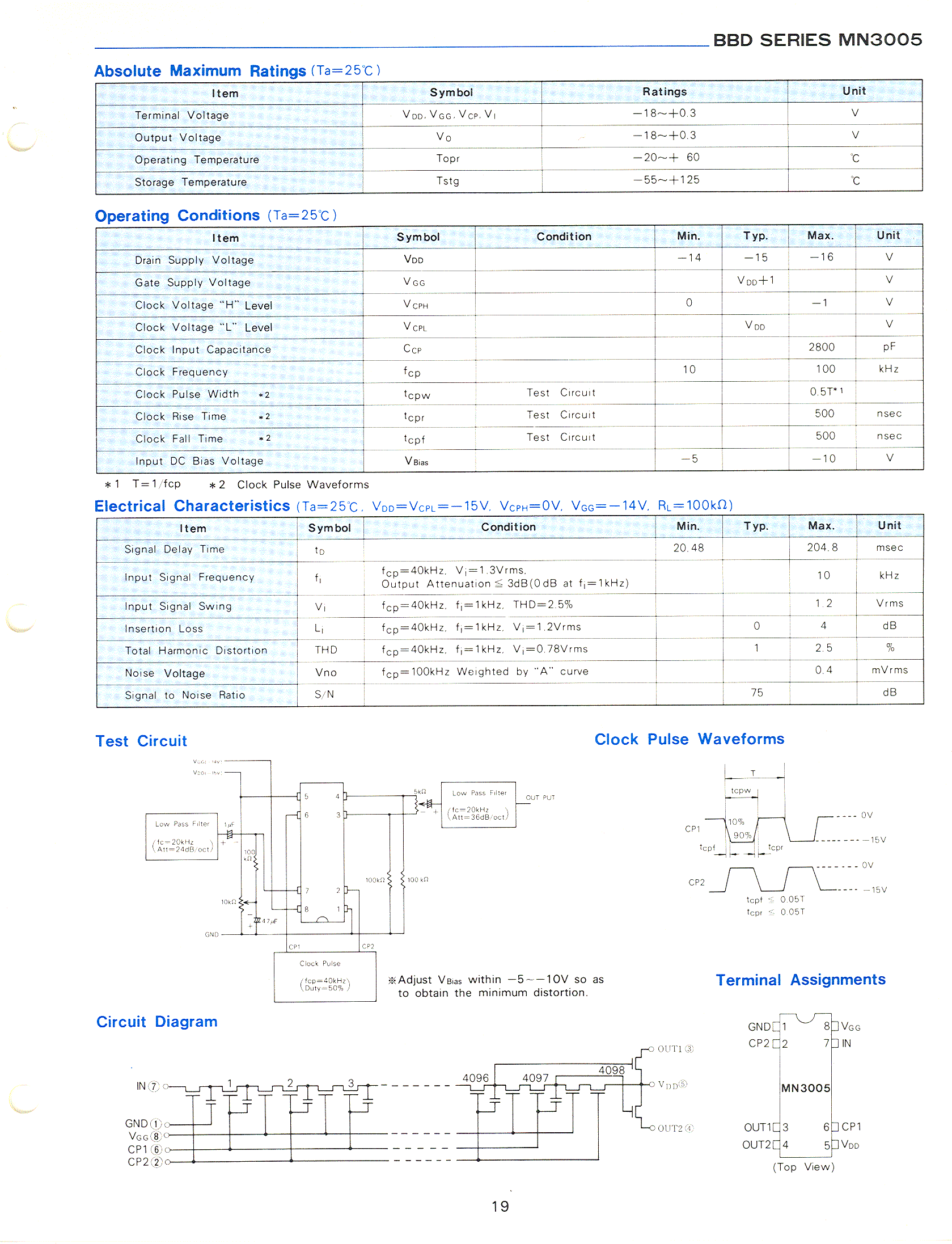

Page 19

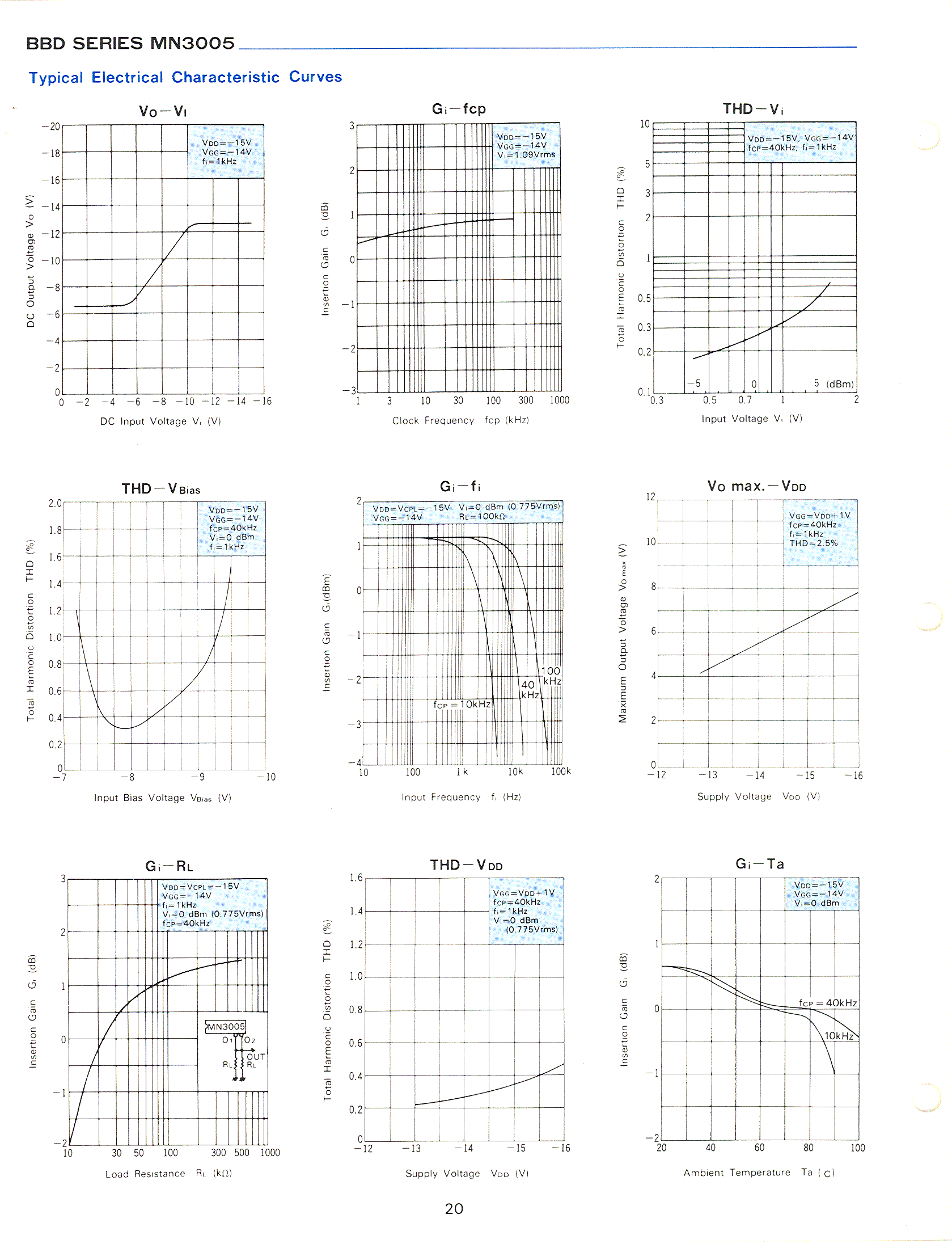

Page 20
Page 21
Page 22

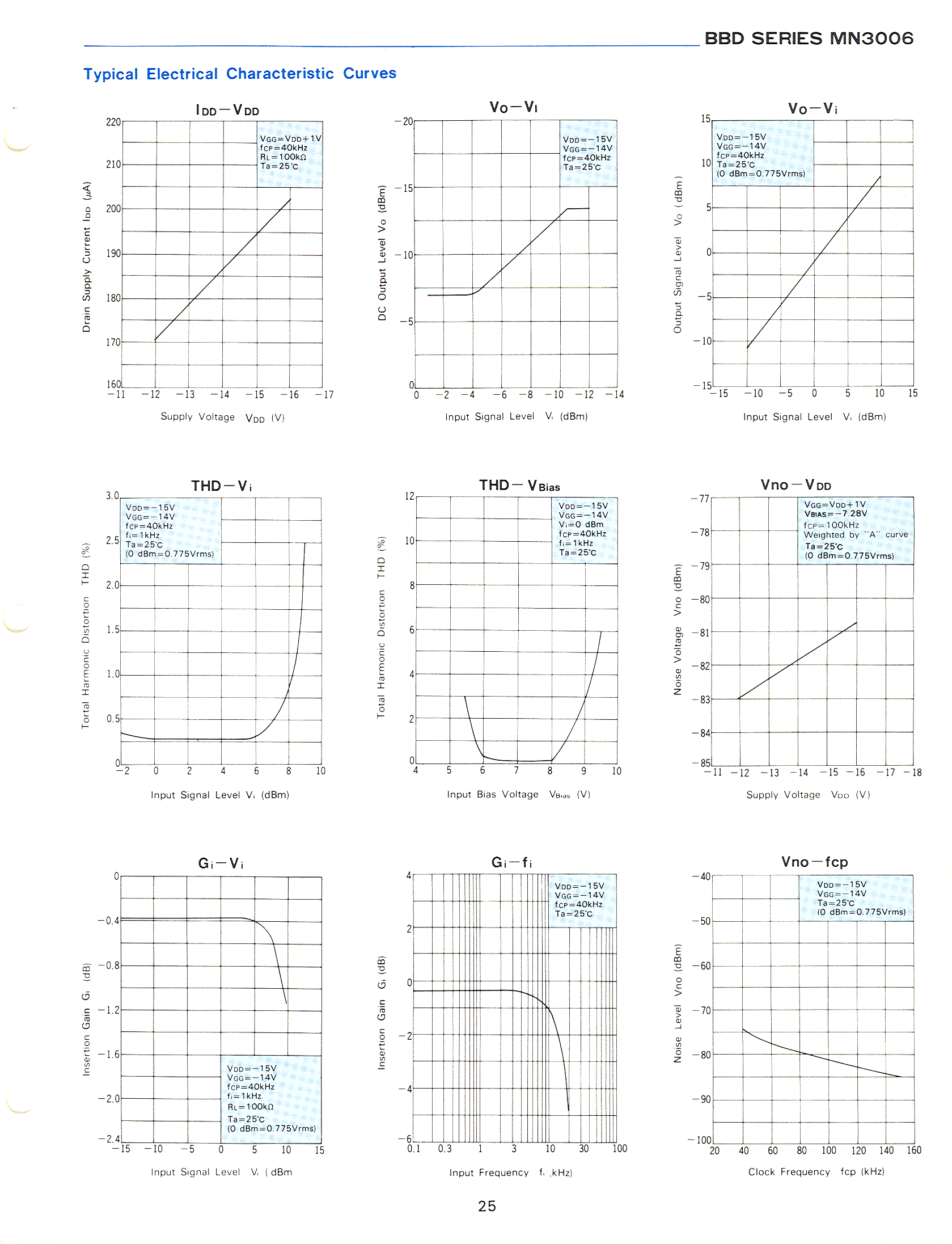

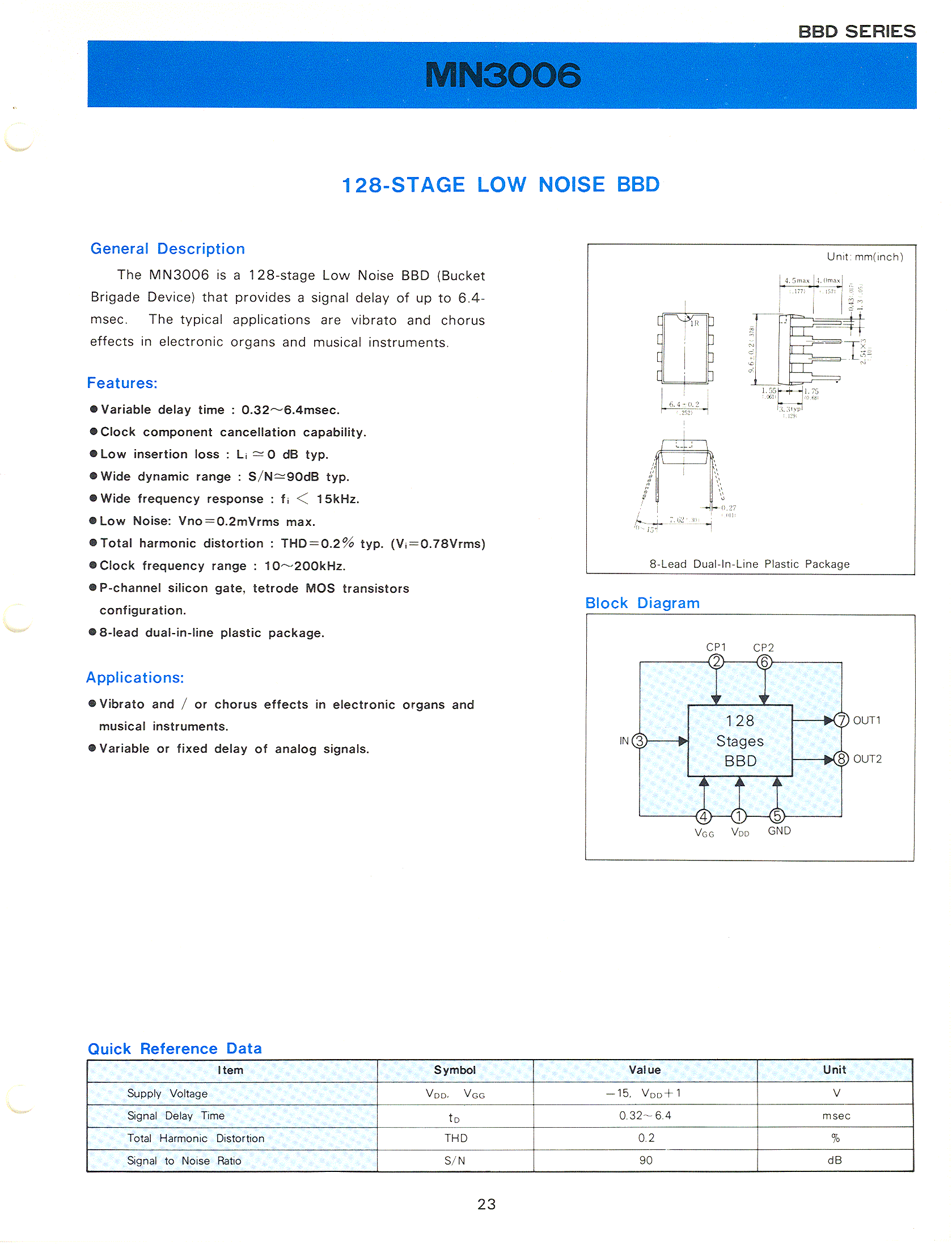

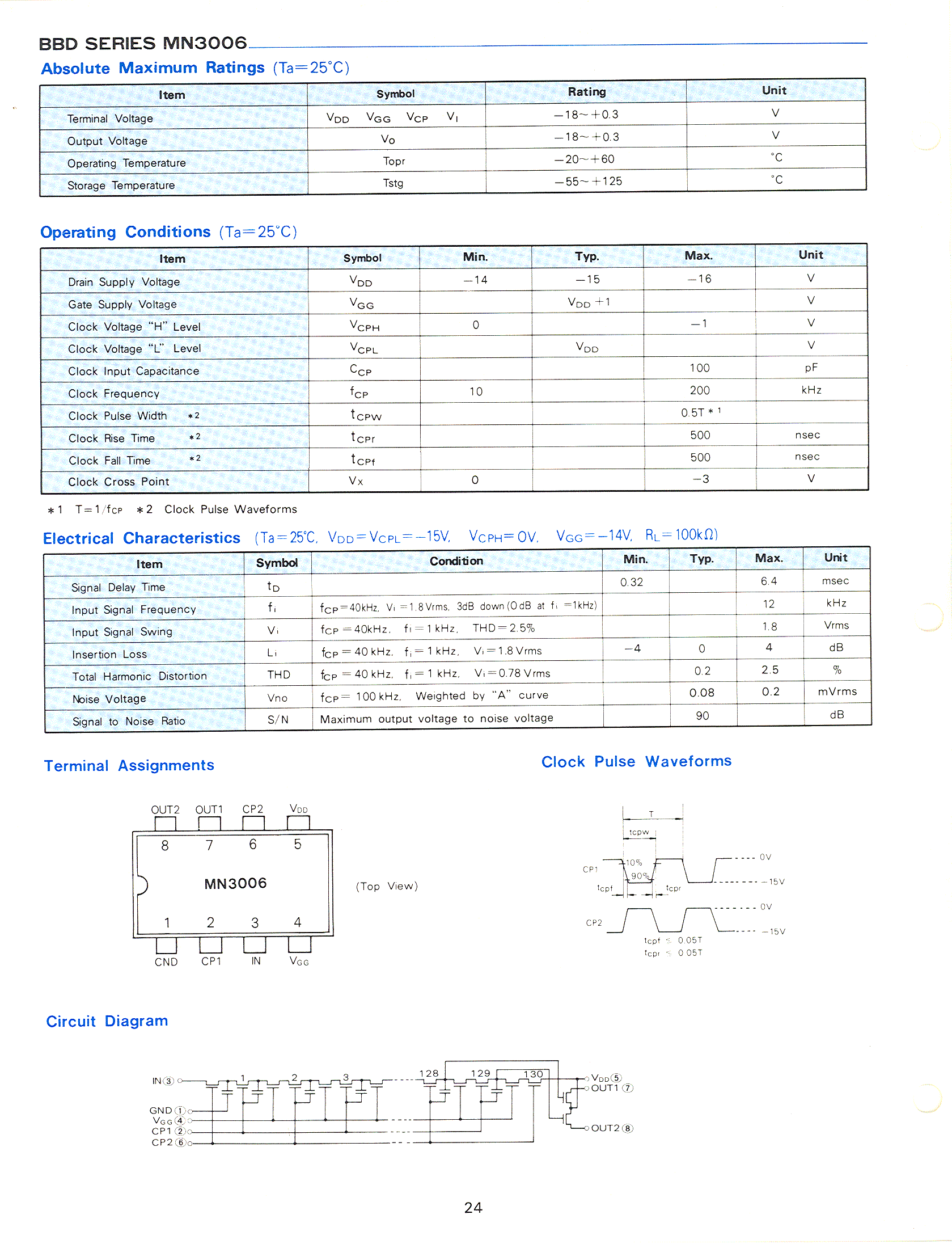

Page 23 MN3006
Page 24
Page 25

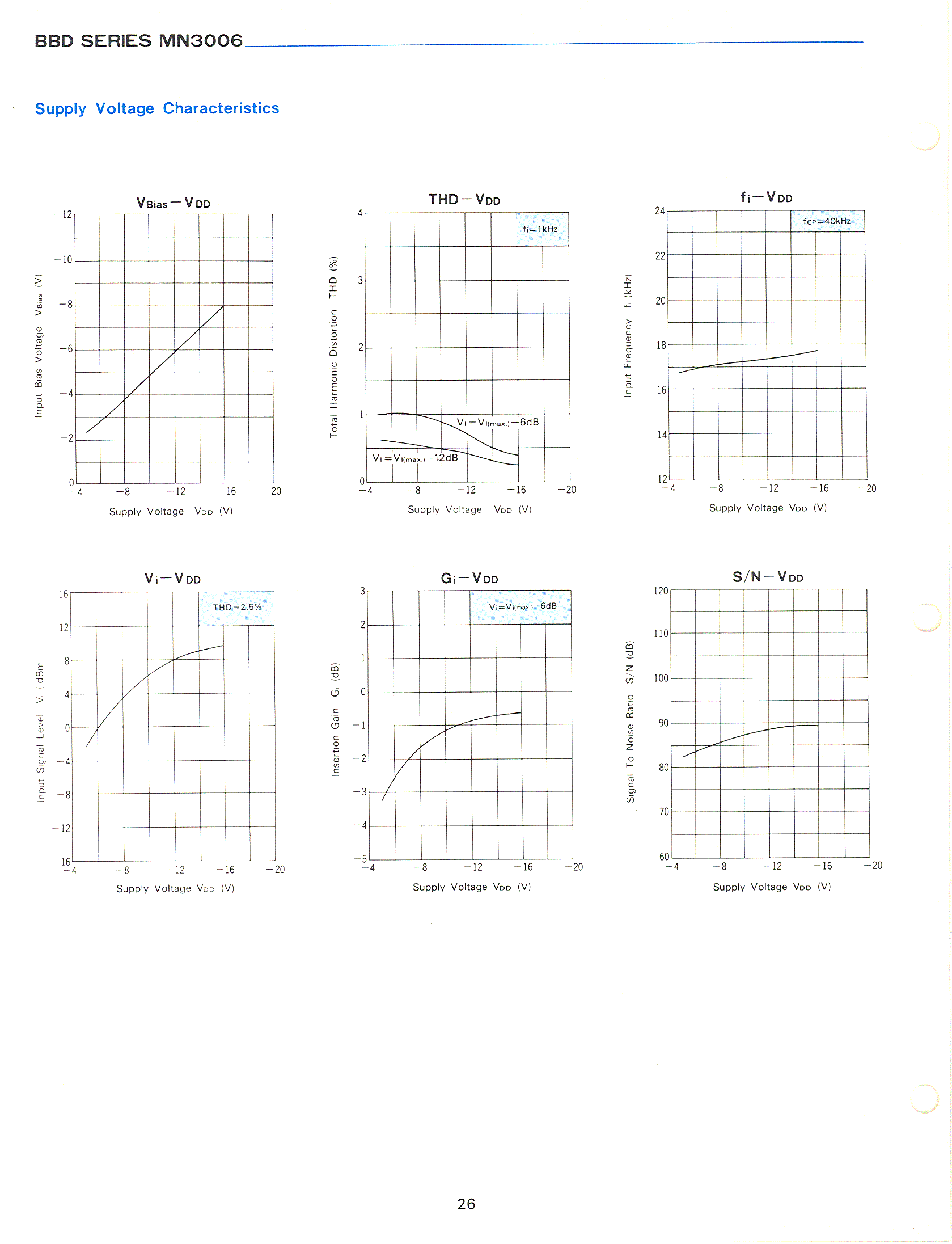

Page 26

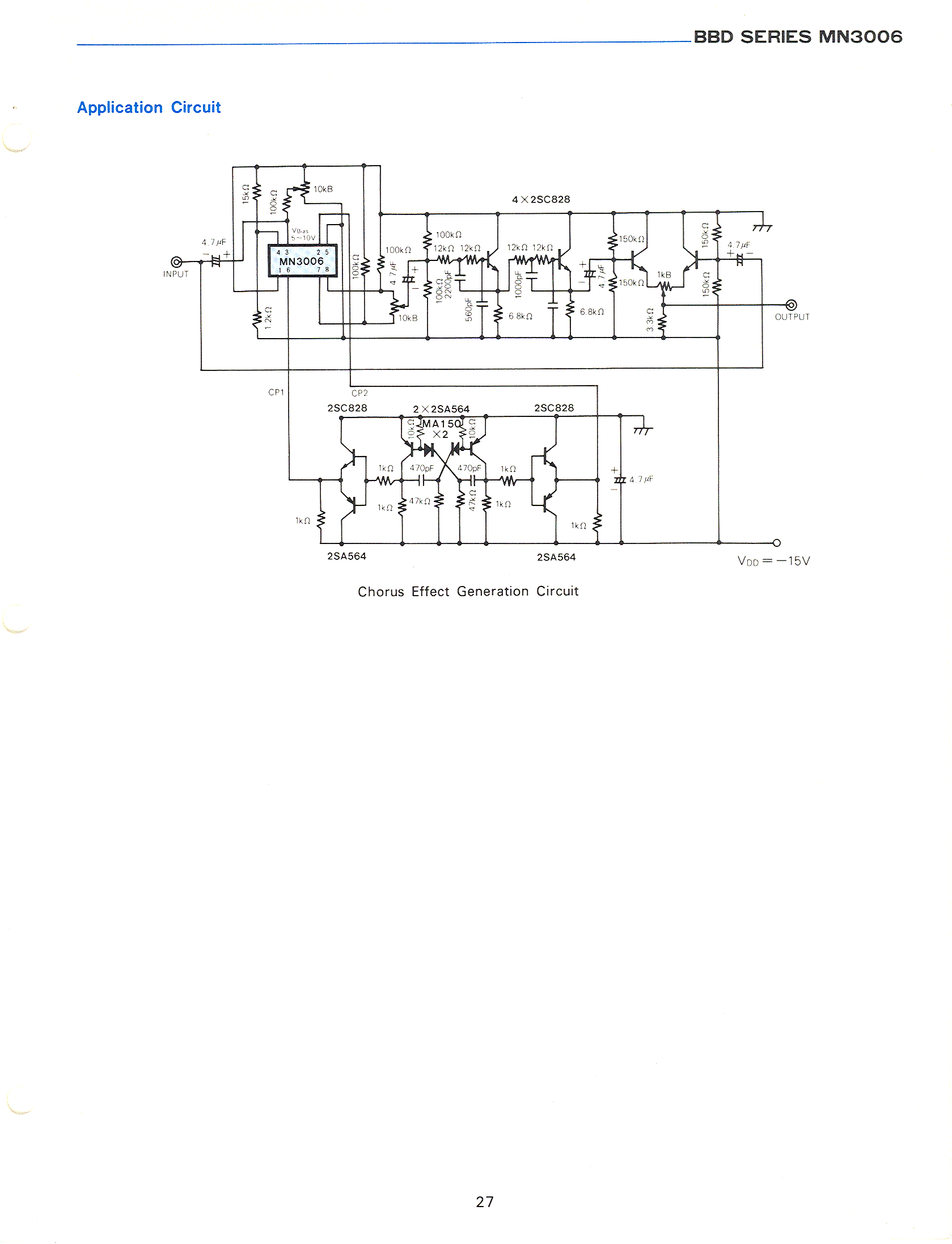

Page 27

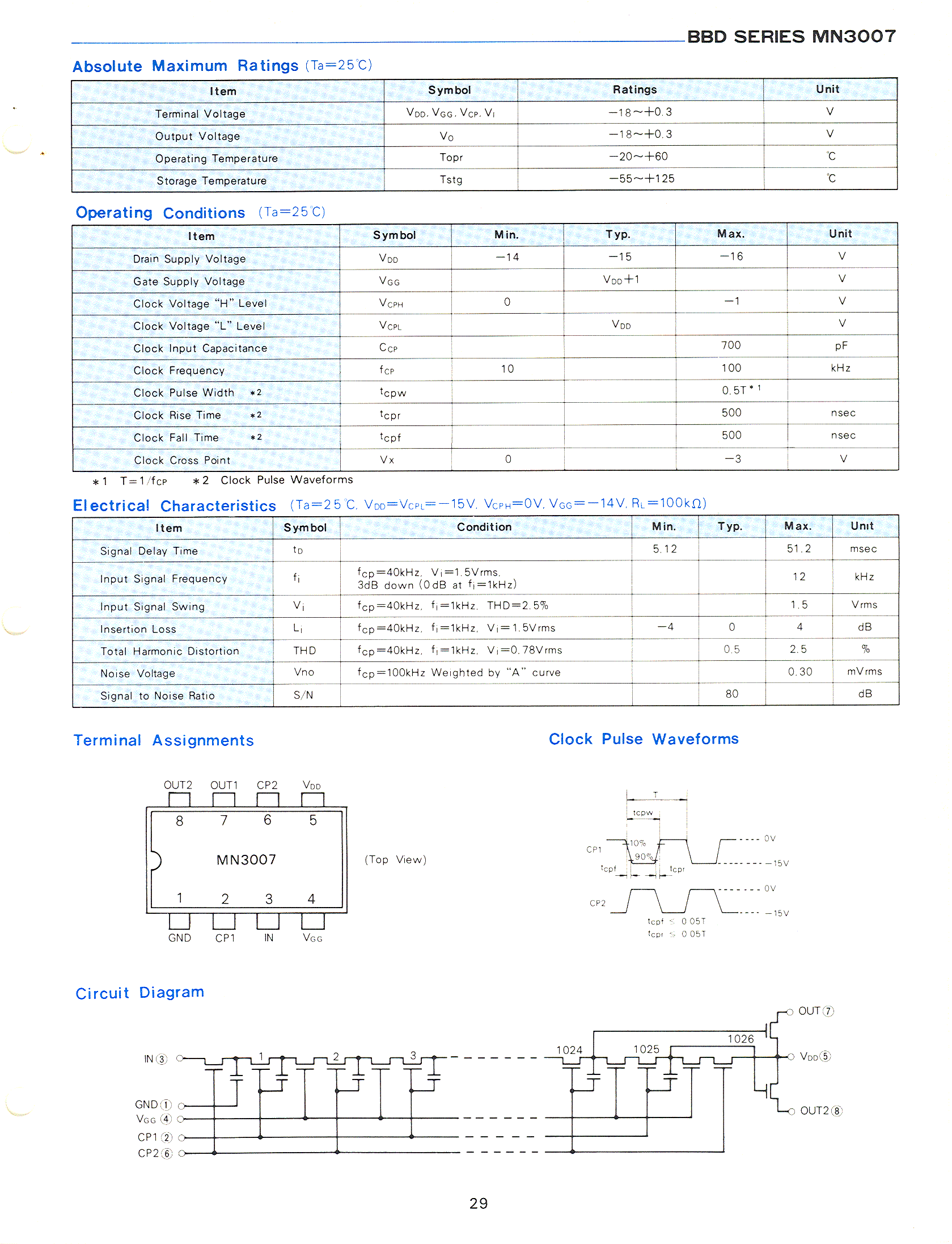

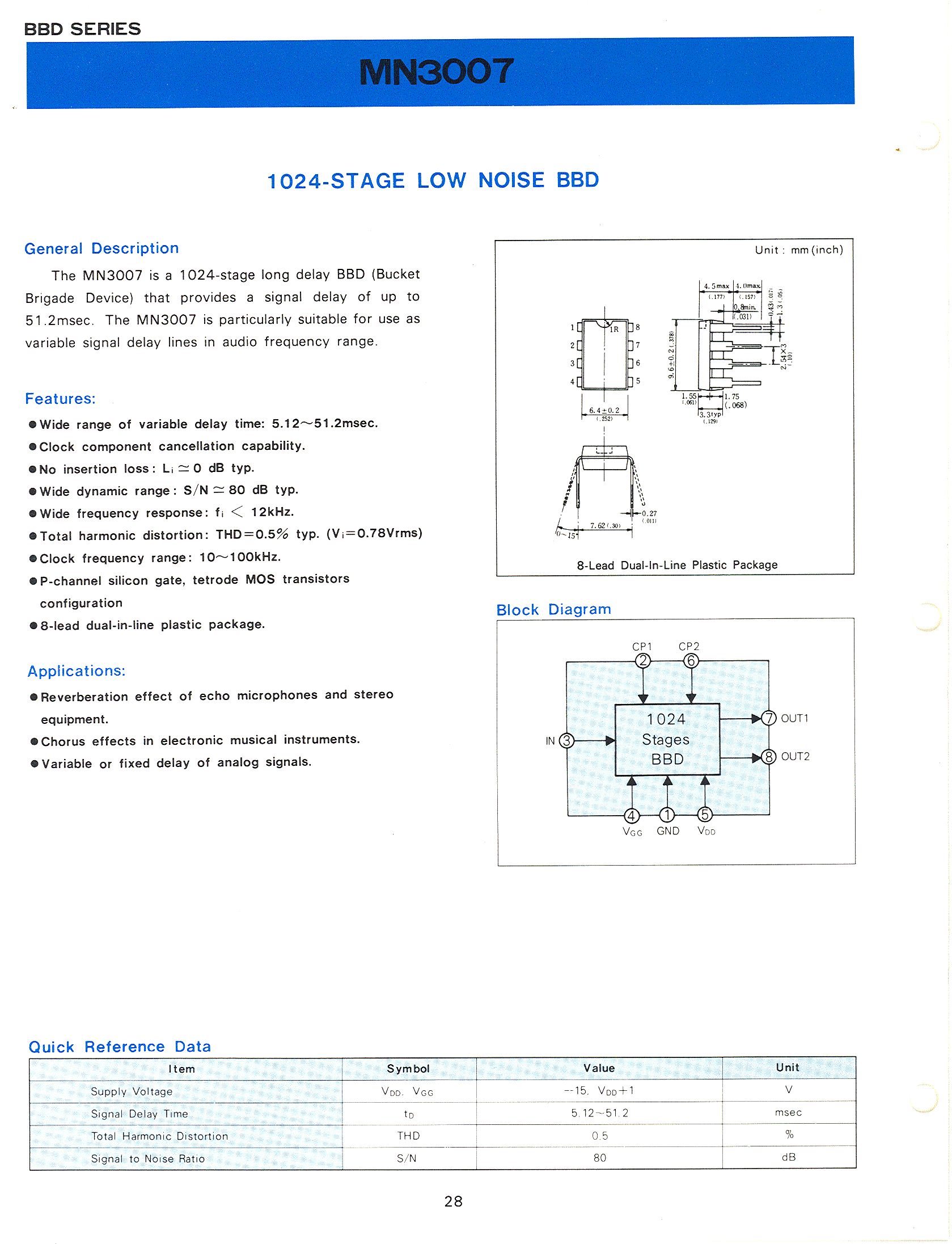

Page 28 MN3007 (note the table of contents typo)
Page 29

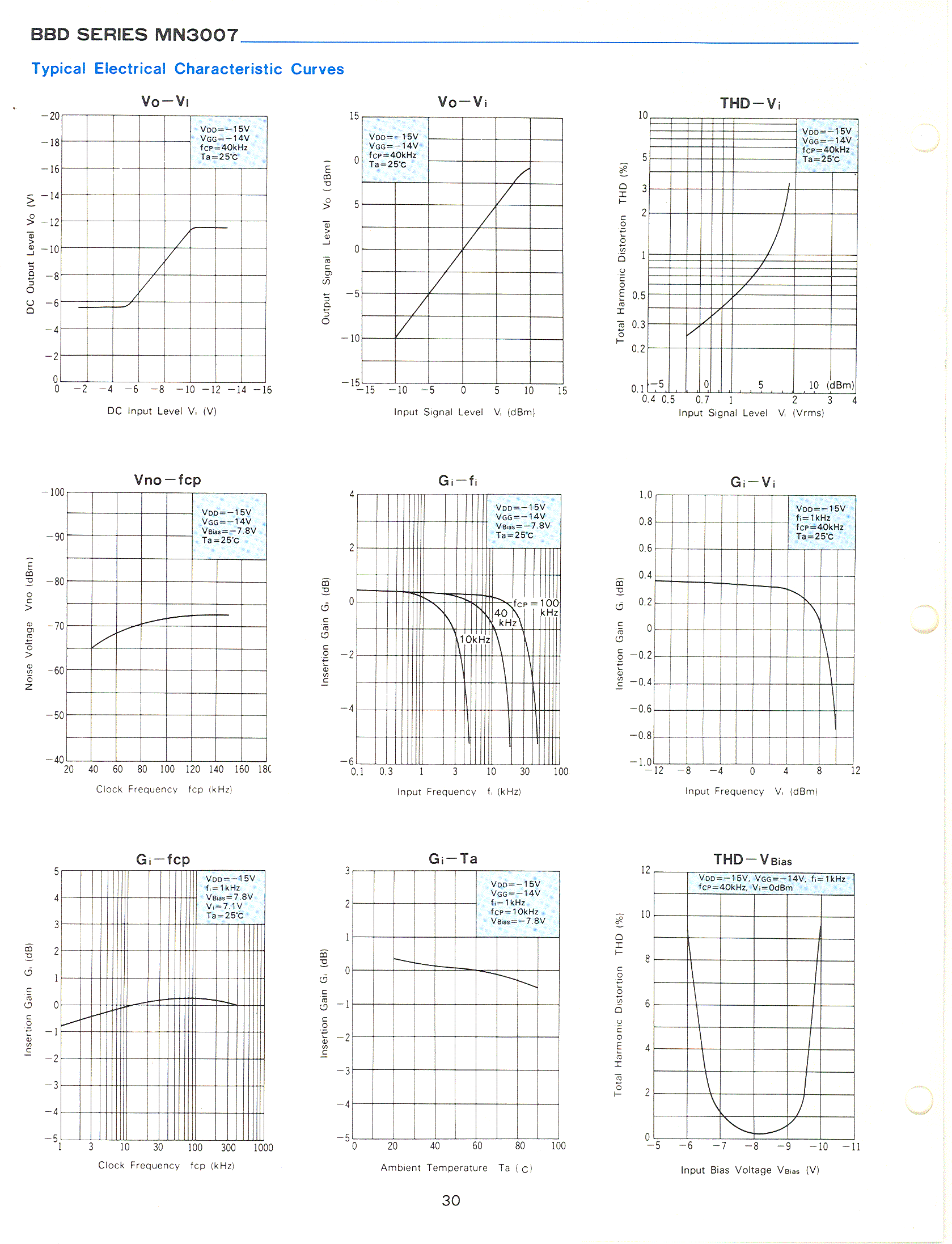

Page 30

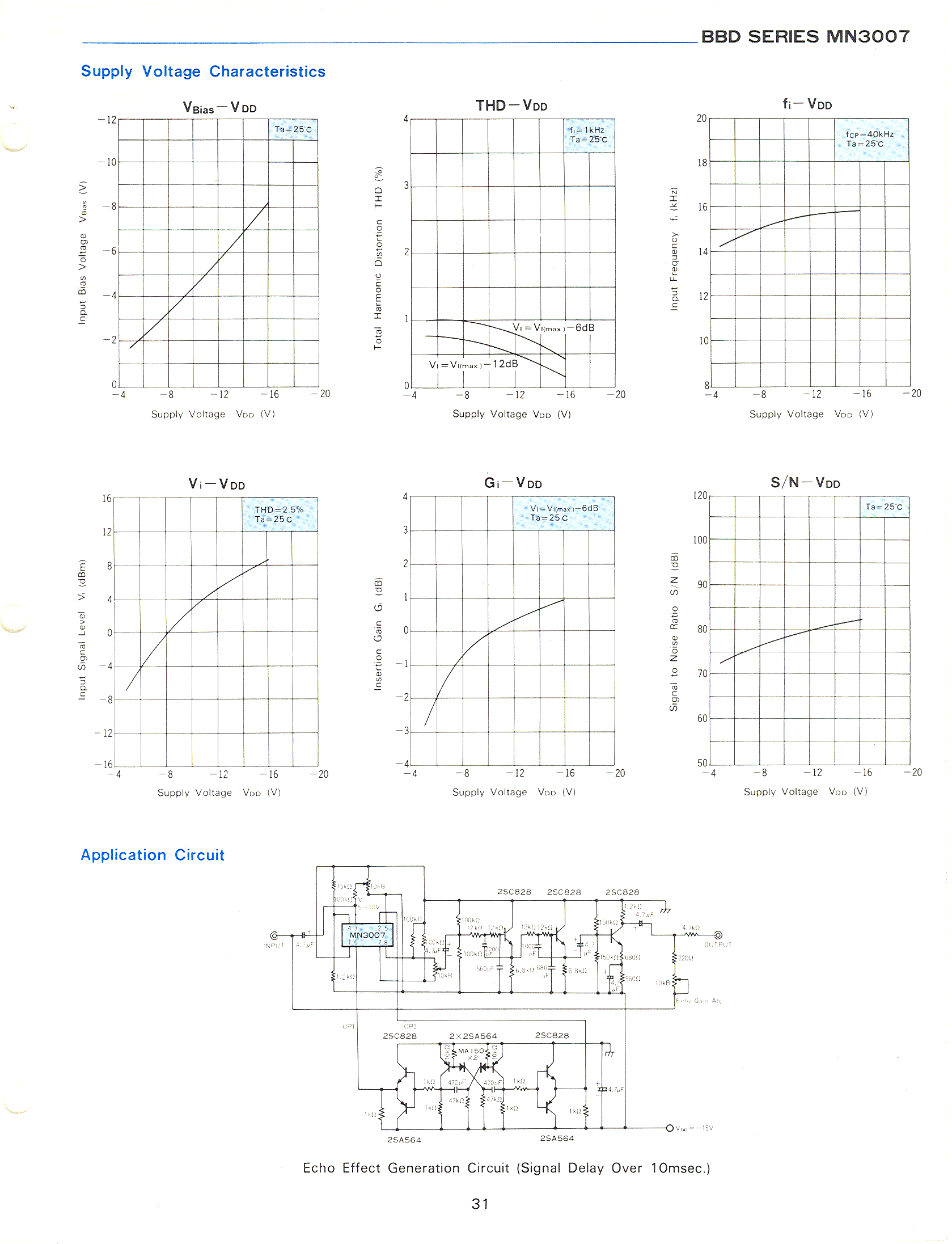

Page 31

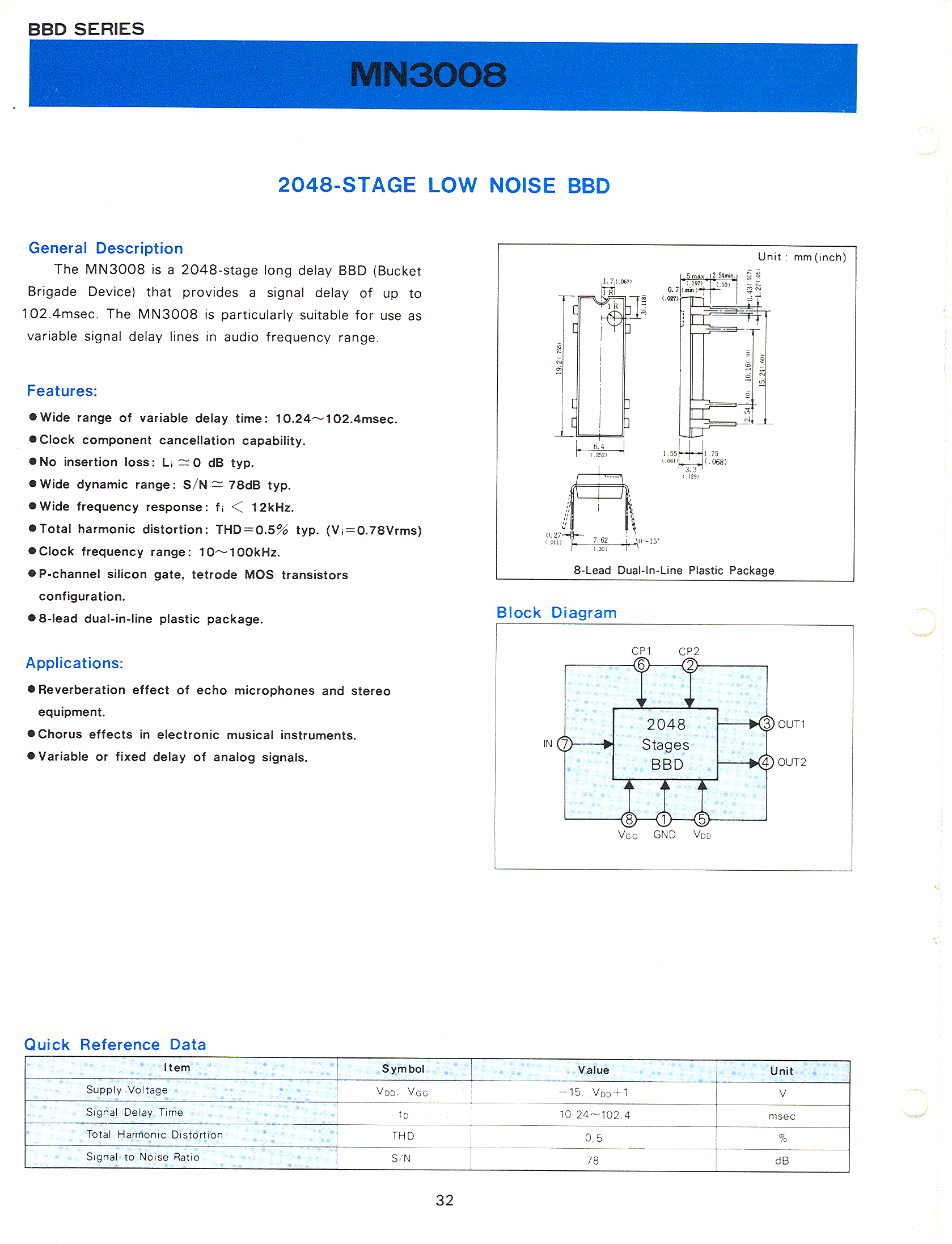

Page 32 MN3008
Page 33

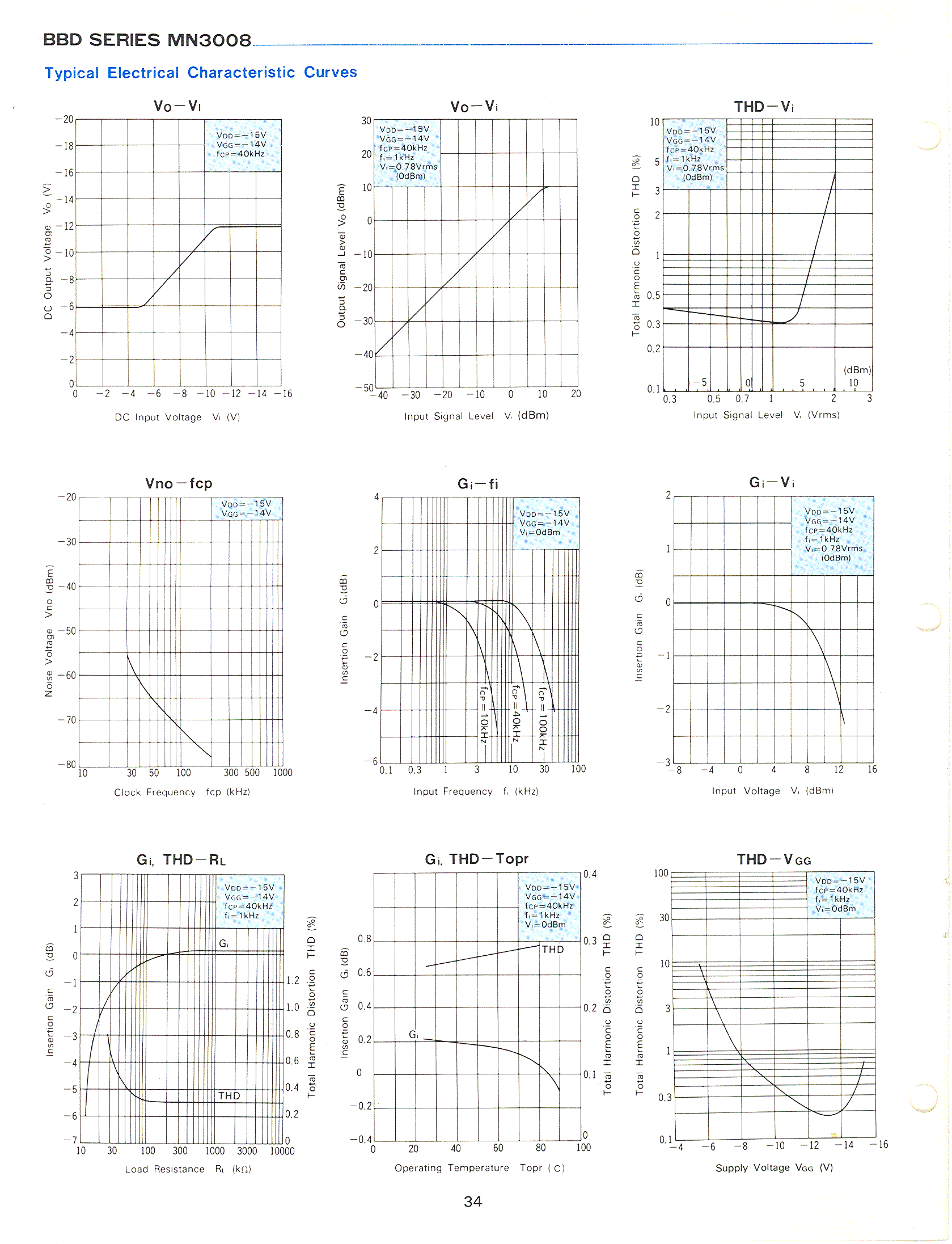

Page 34

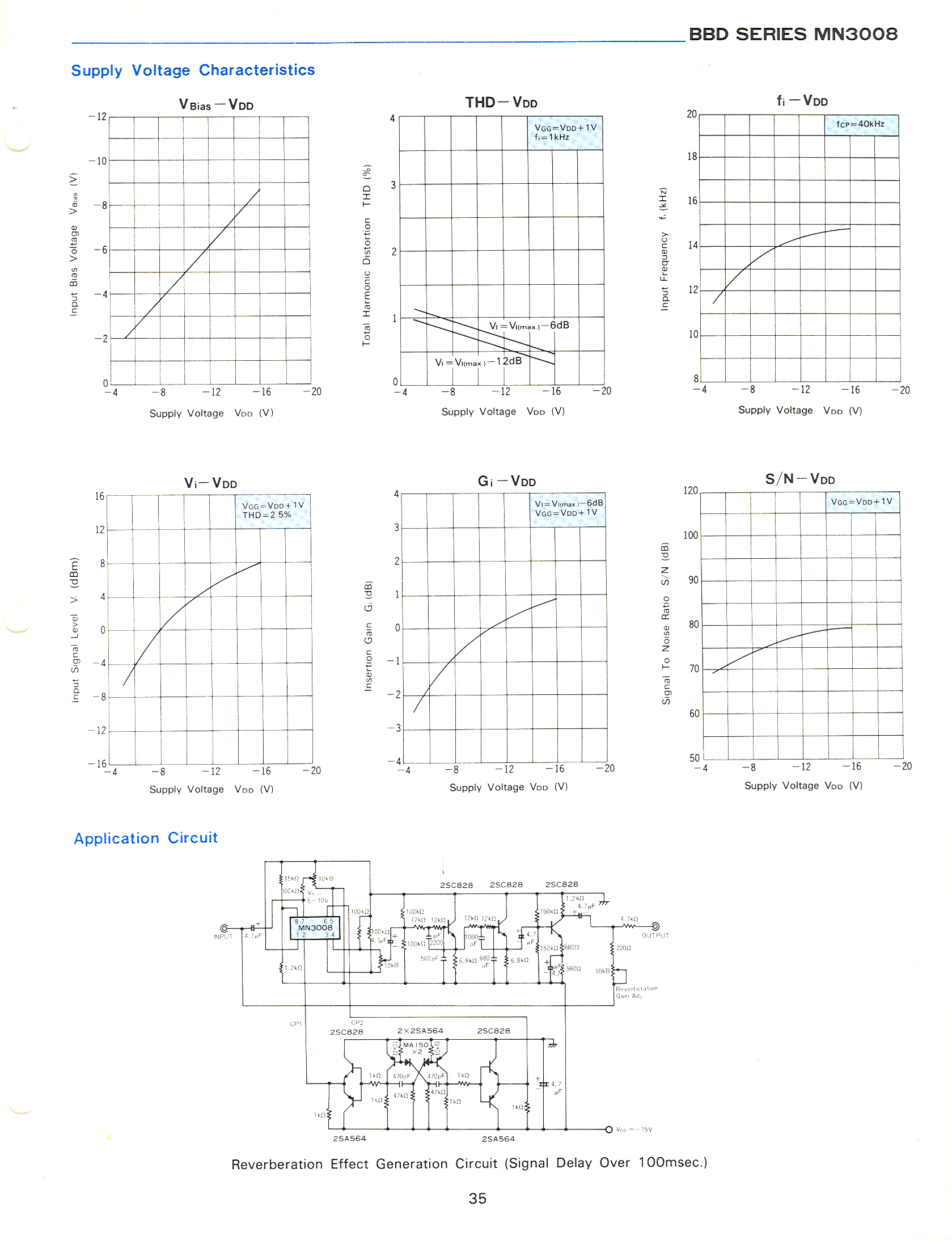

Page 35

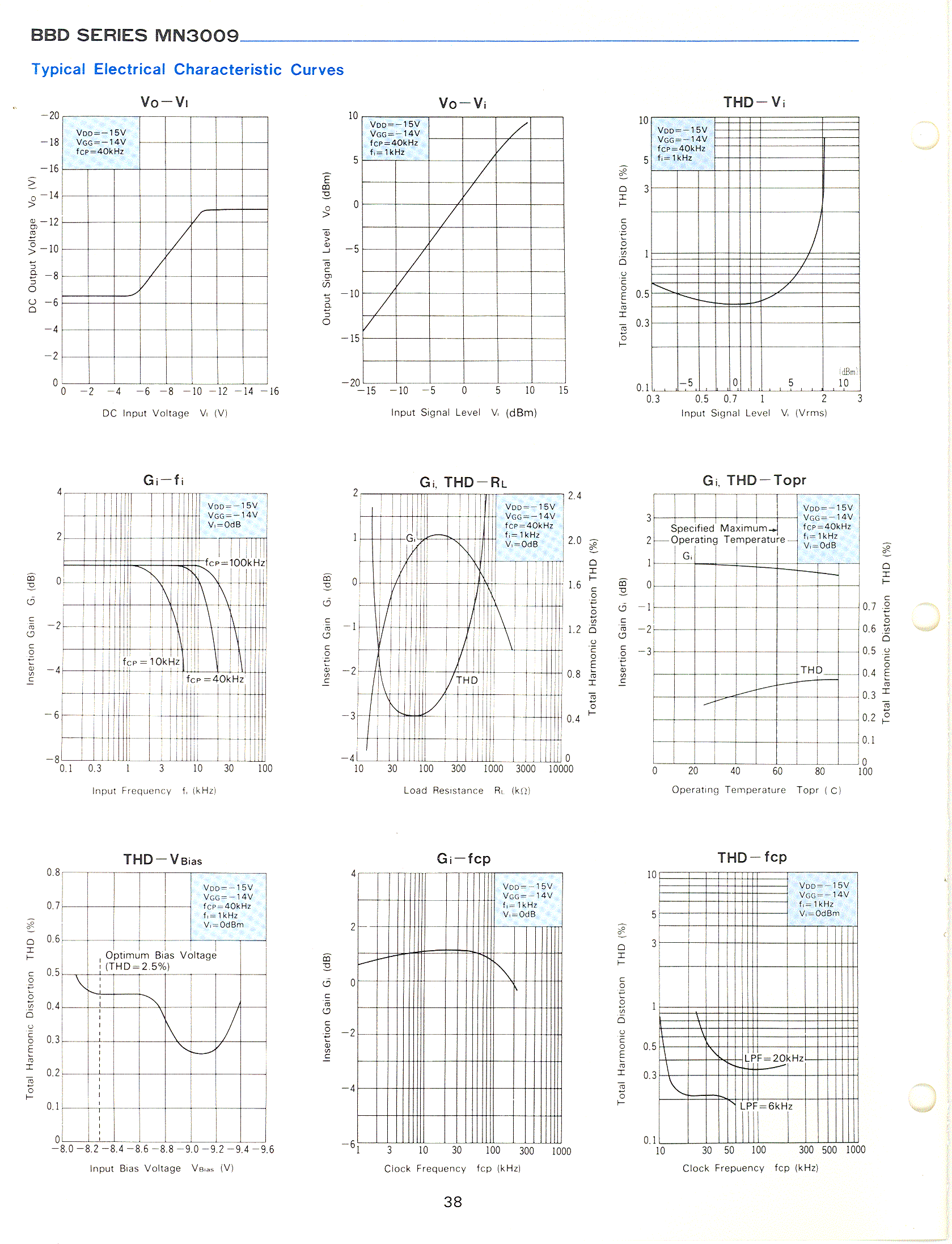

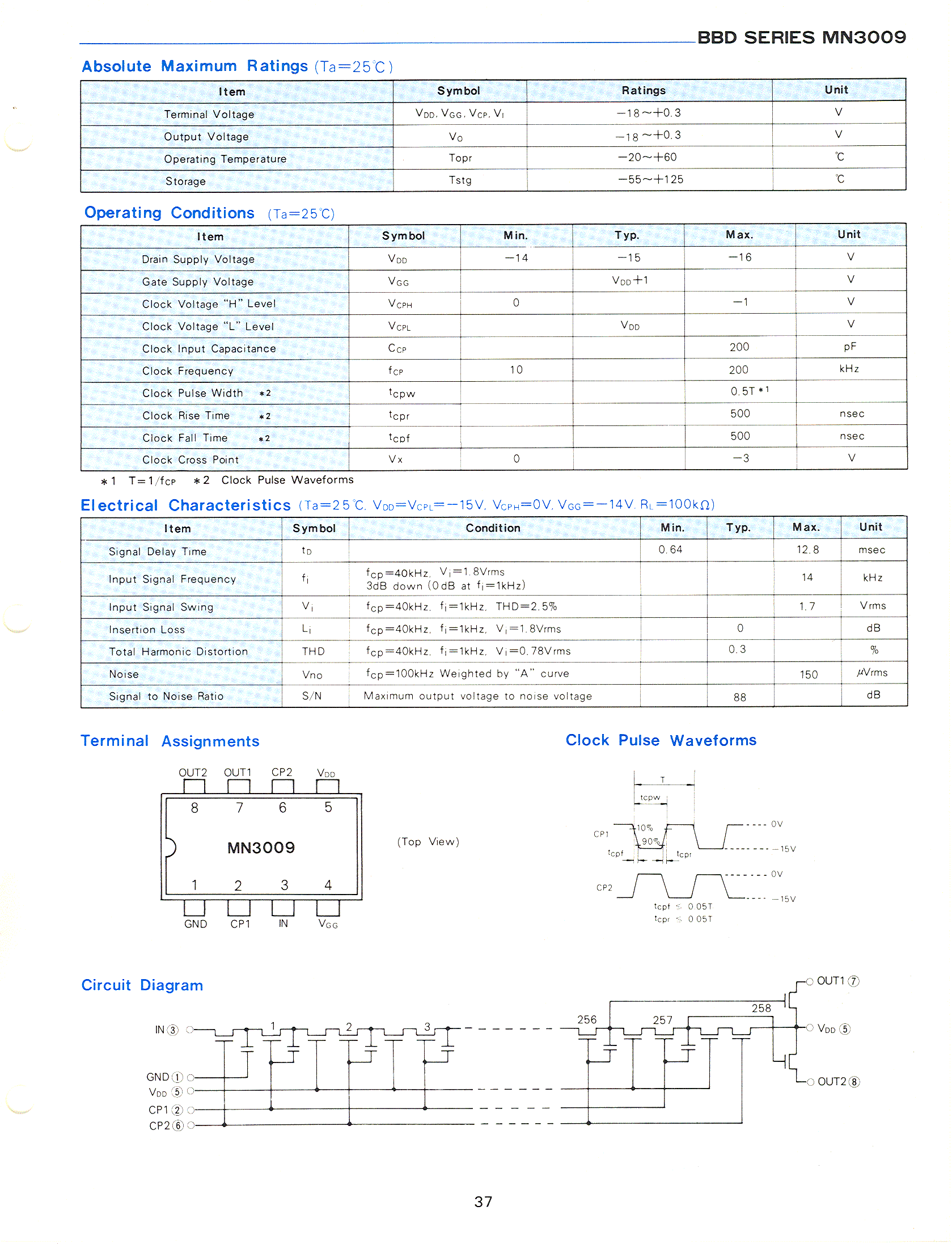

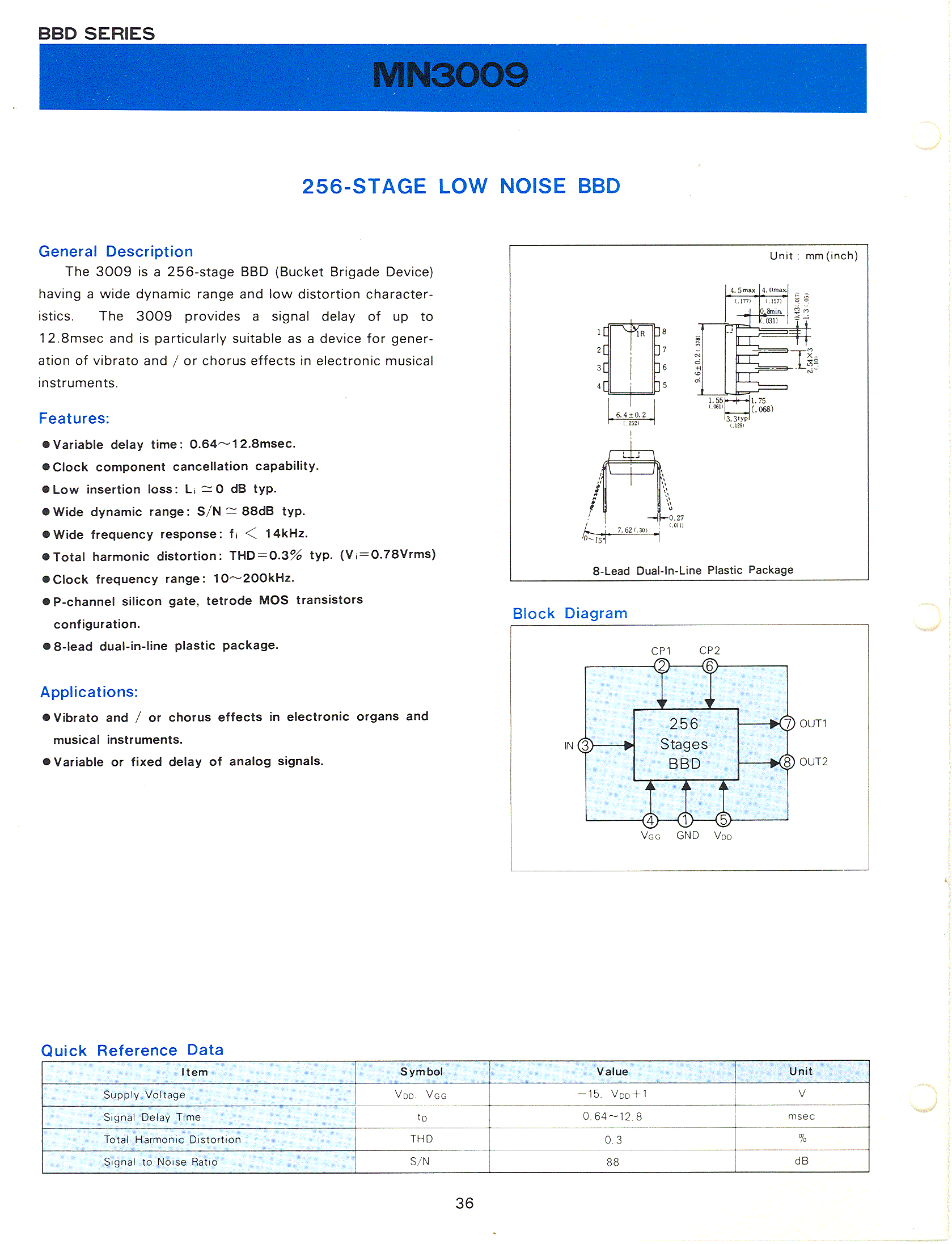

Page 36 MN3009
Page 37
Page 38

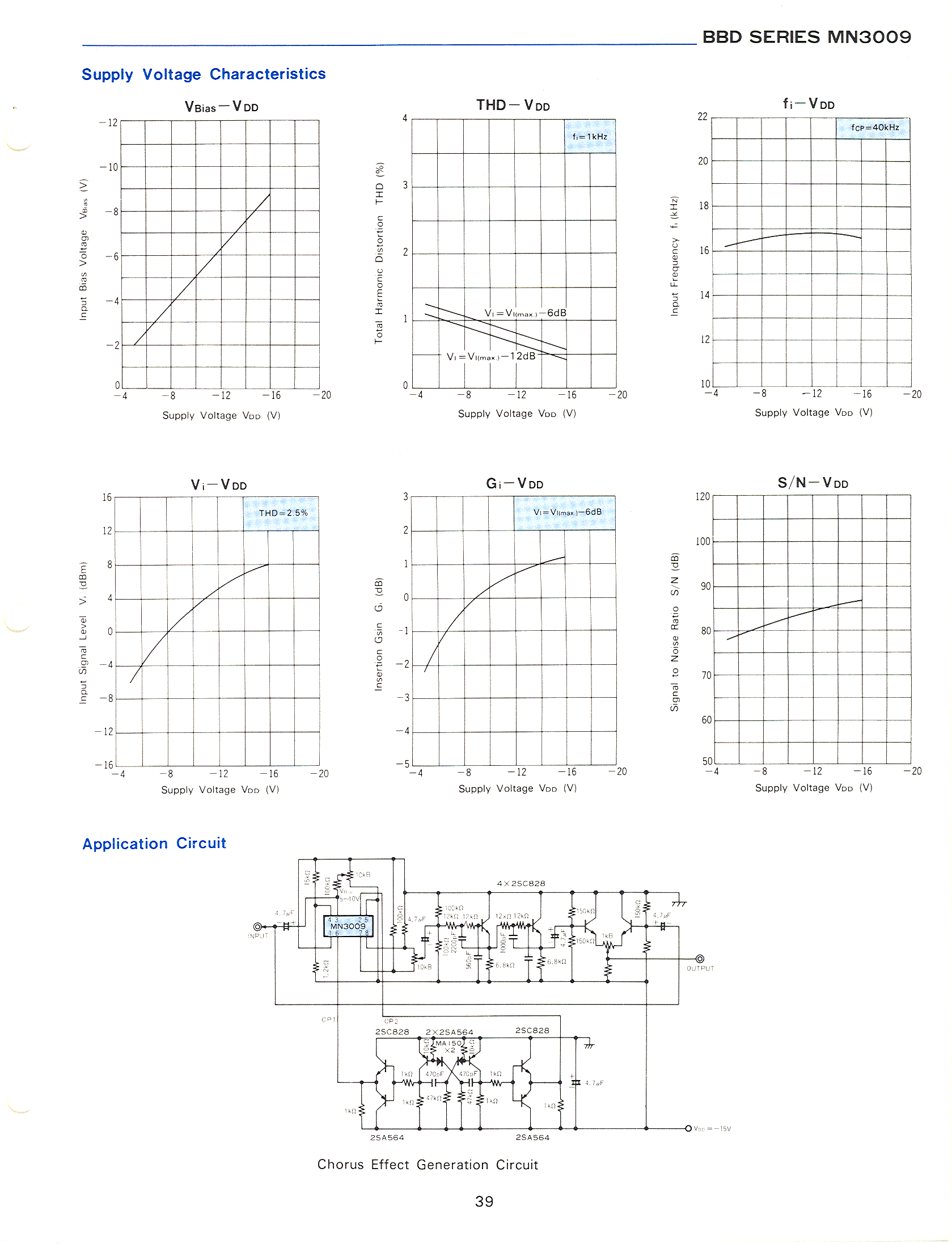

Page 39

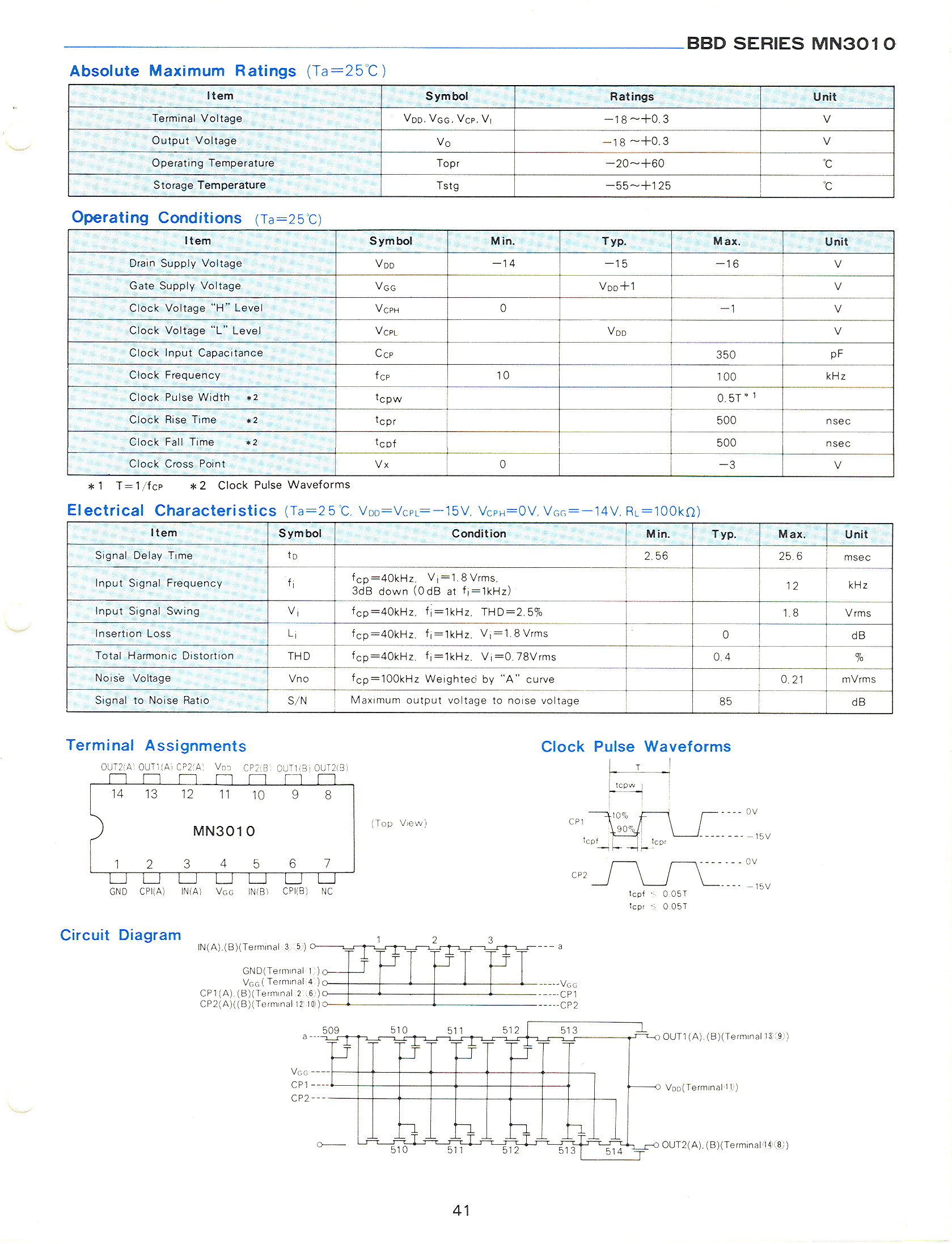

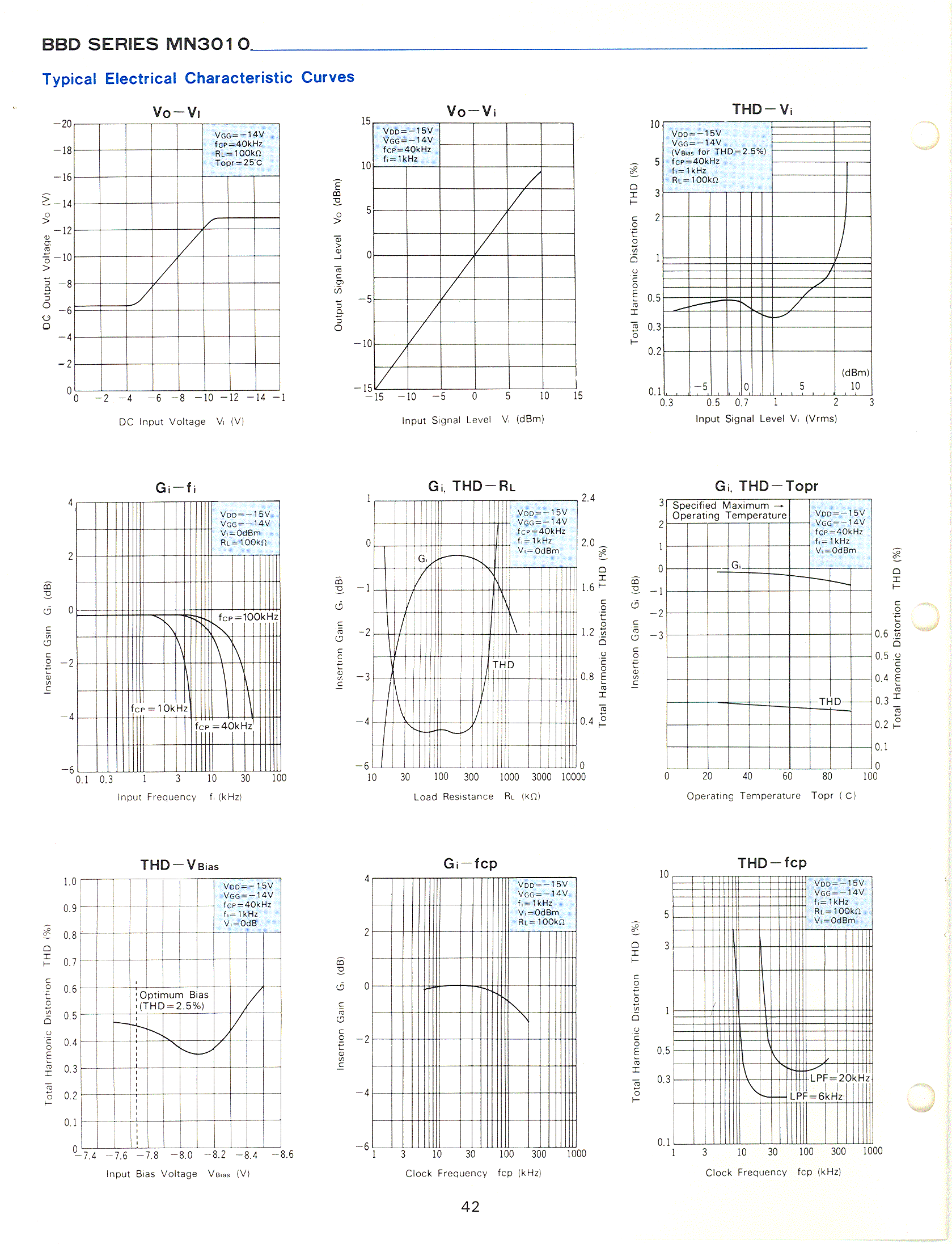

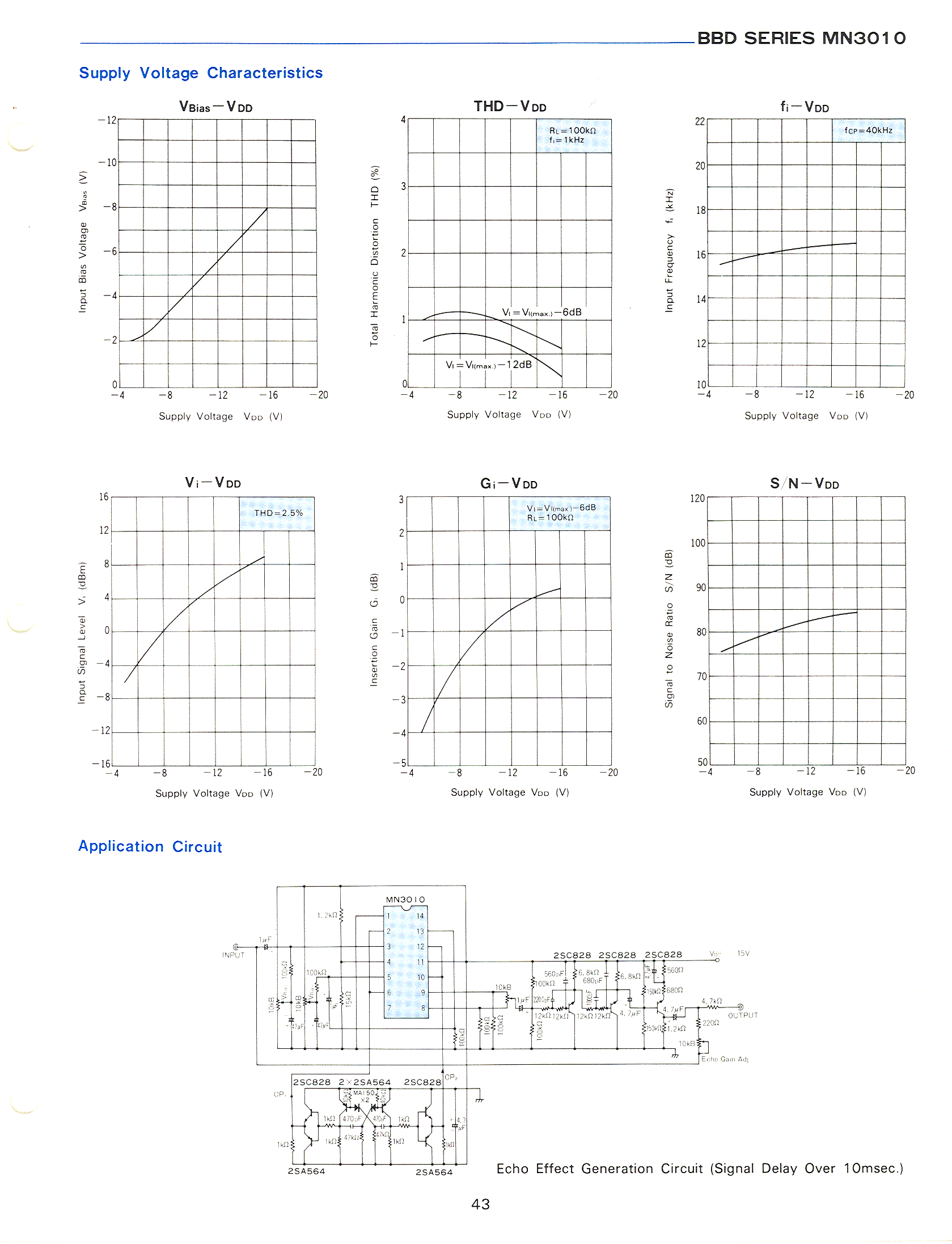

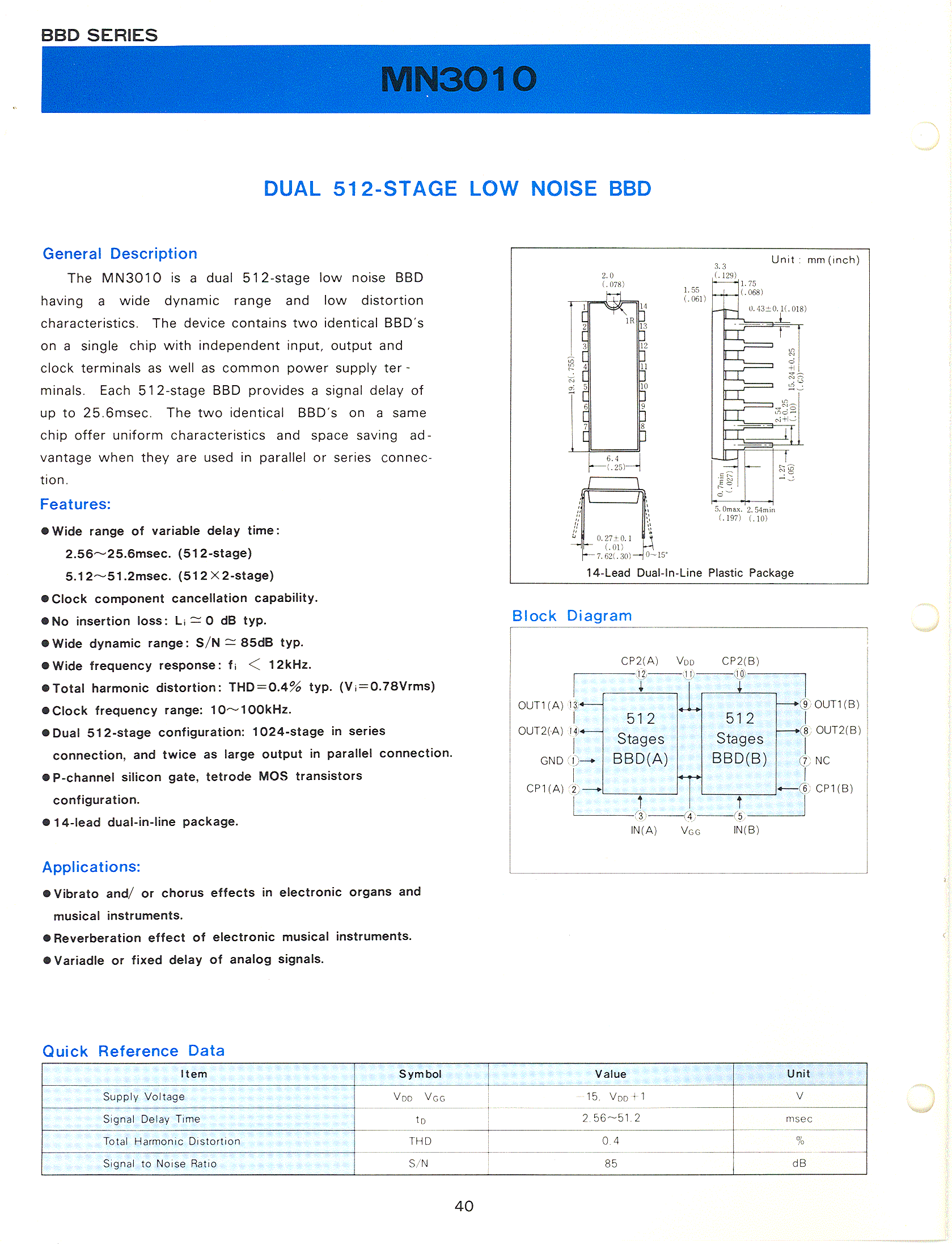

Page 40 MN3010
Page 41
Page 42
Page 43

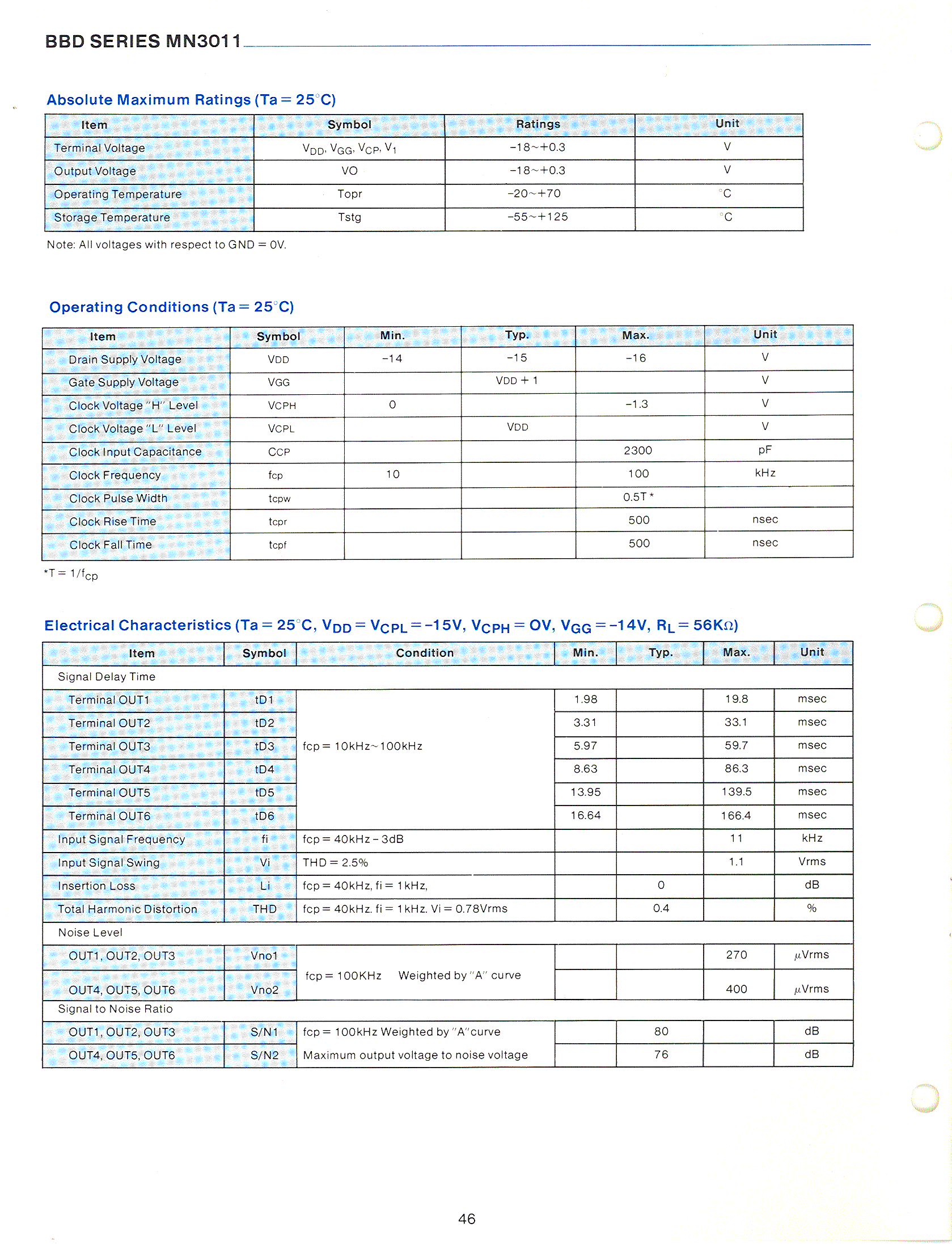

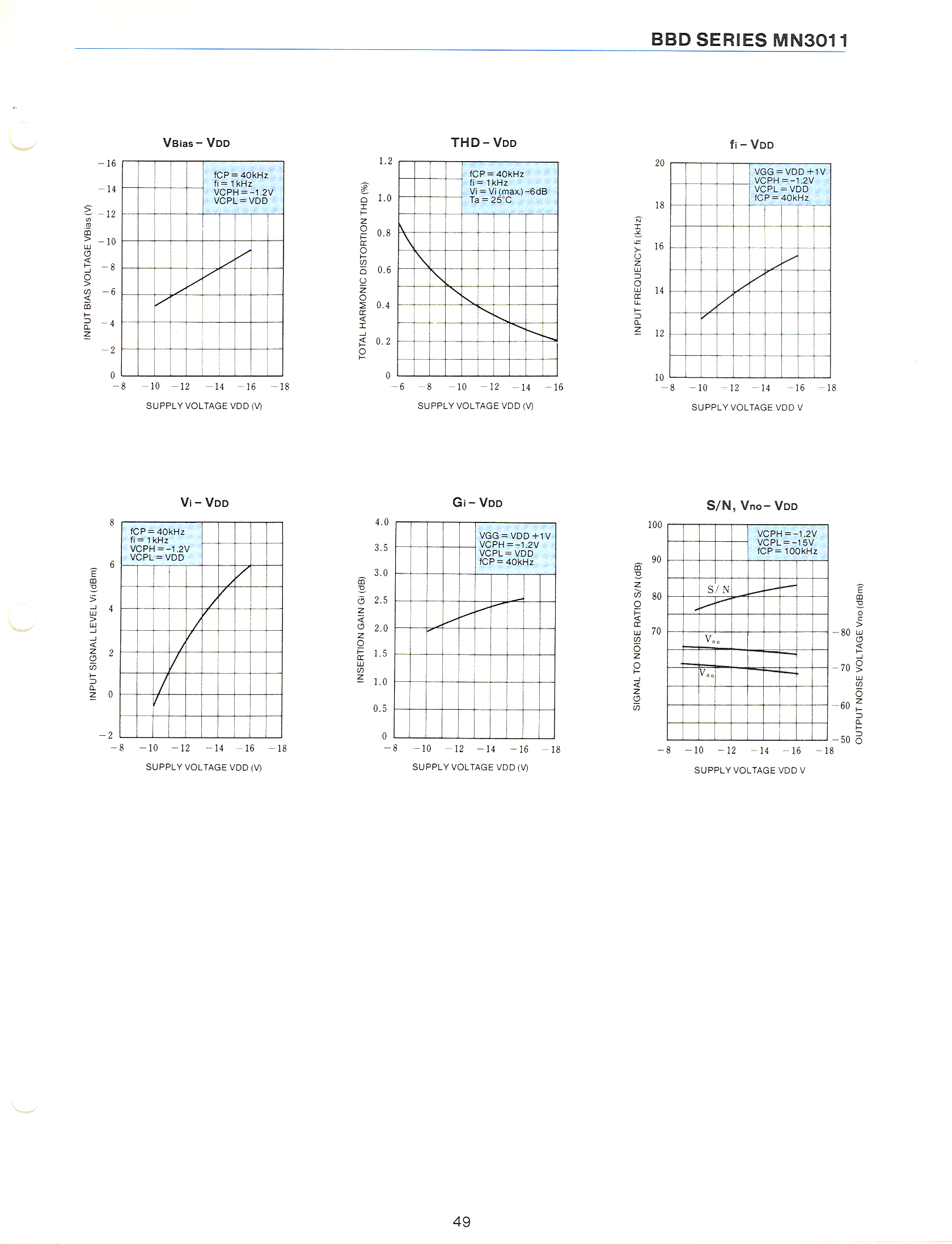

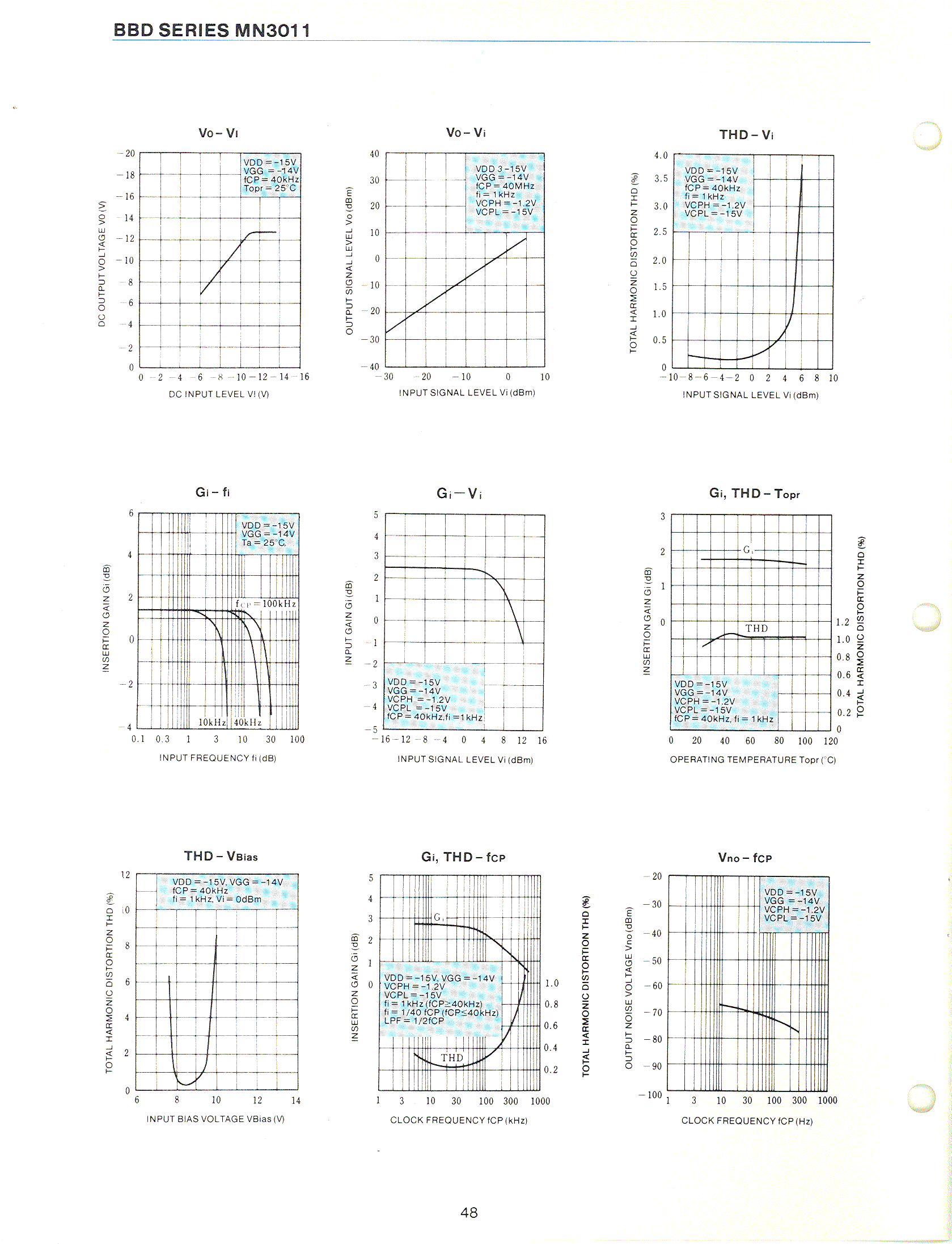

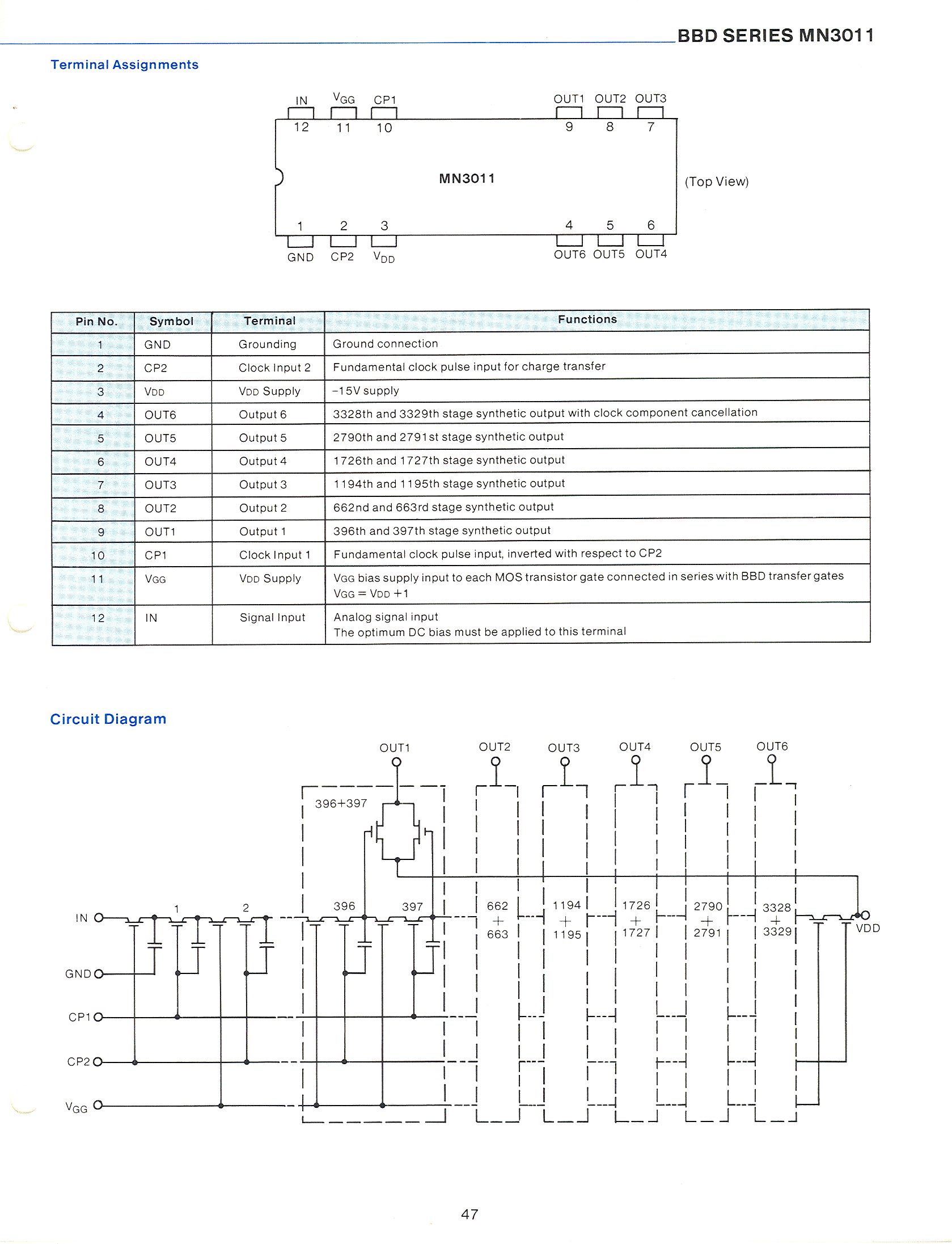

Page 44 MN3011

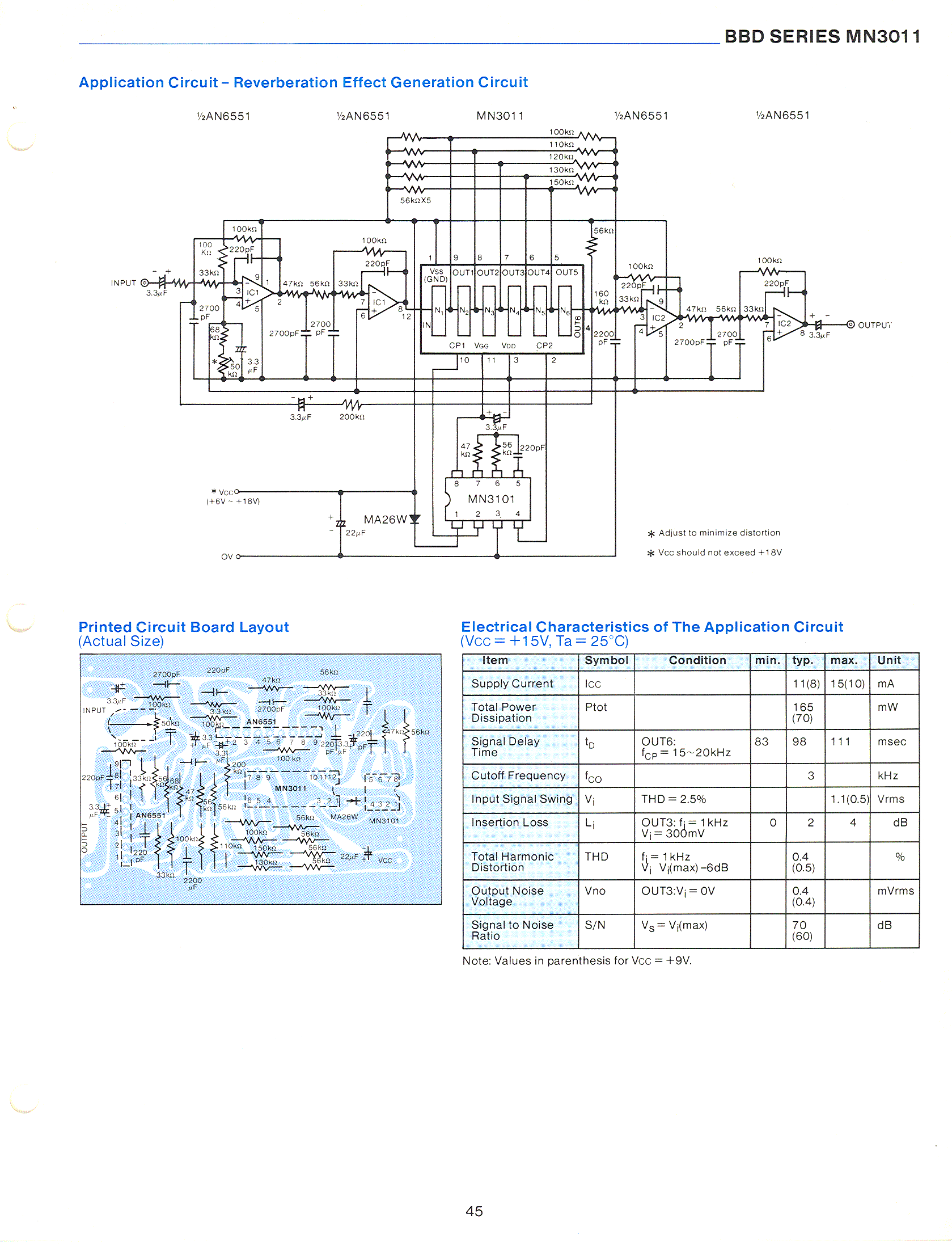

Page 45
Page 46
Page 47
Page 48
Page 49

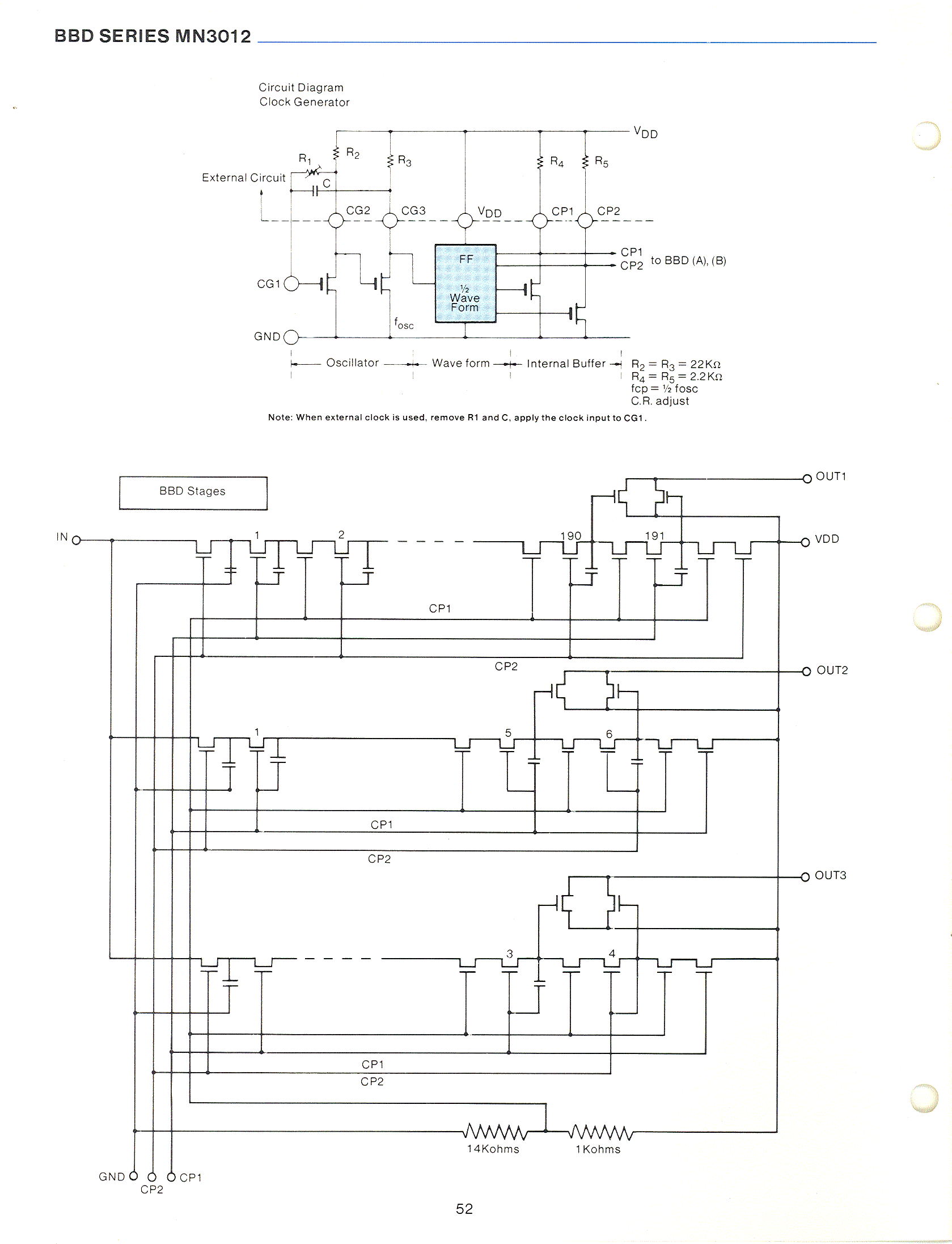

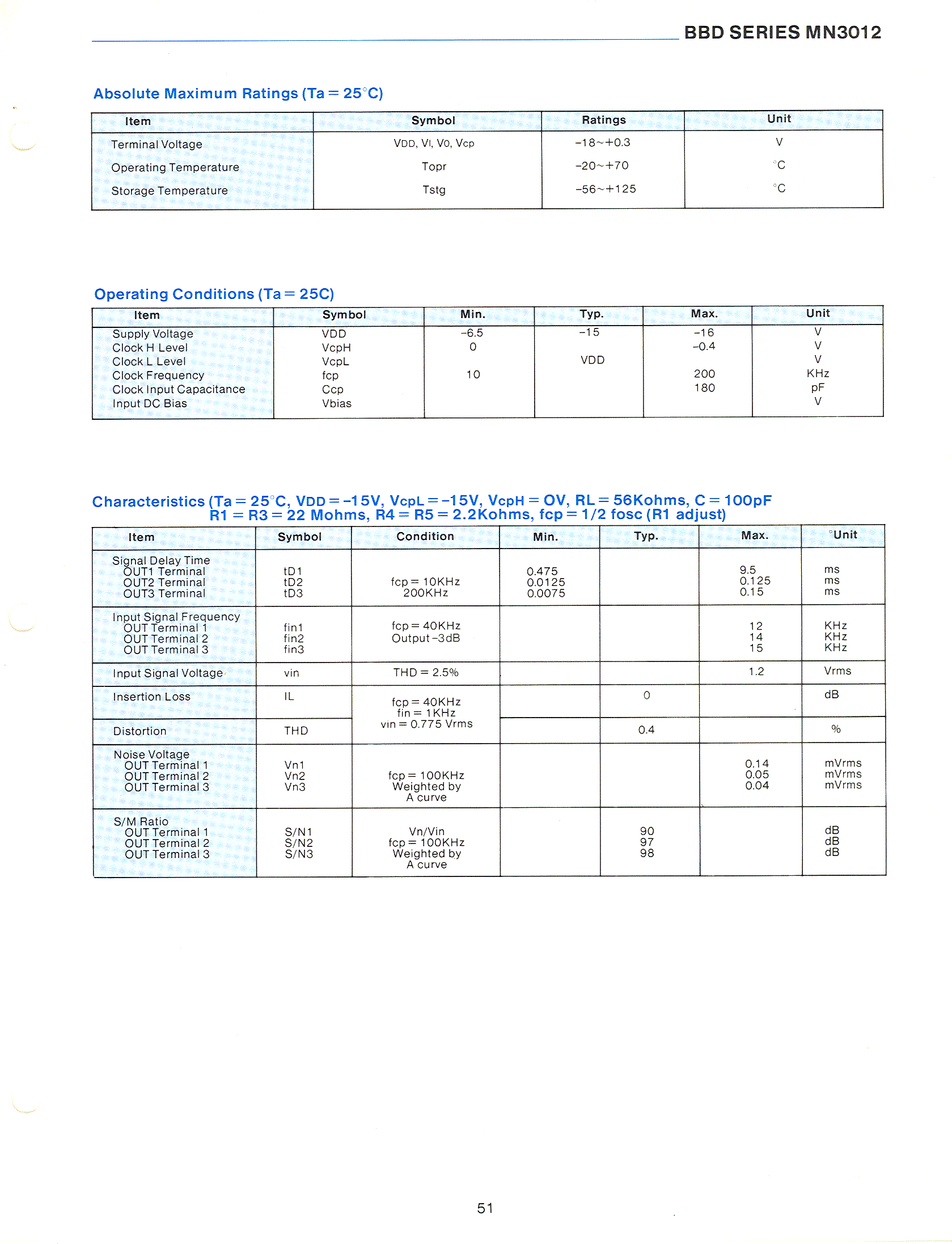

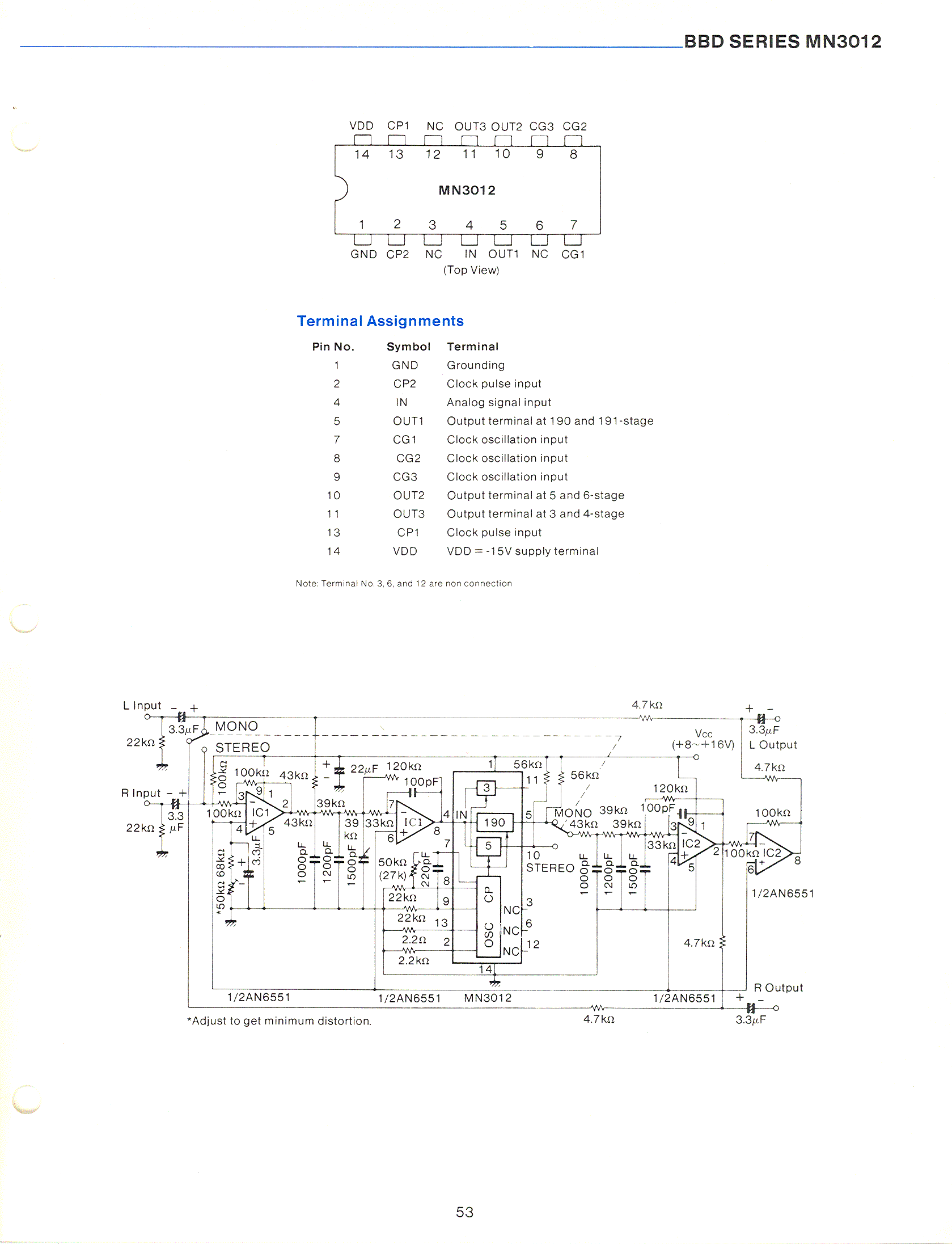

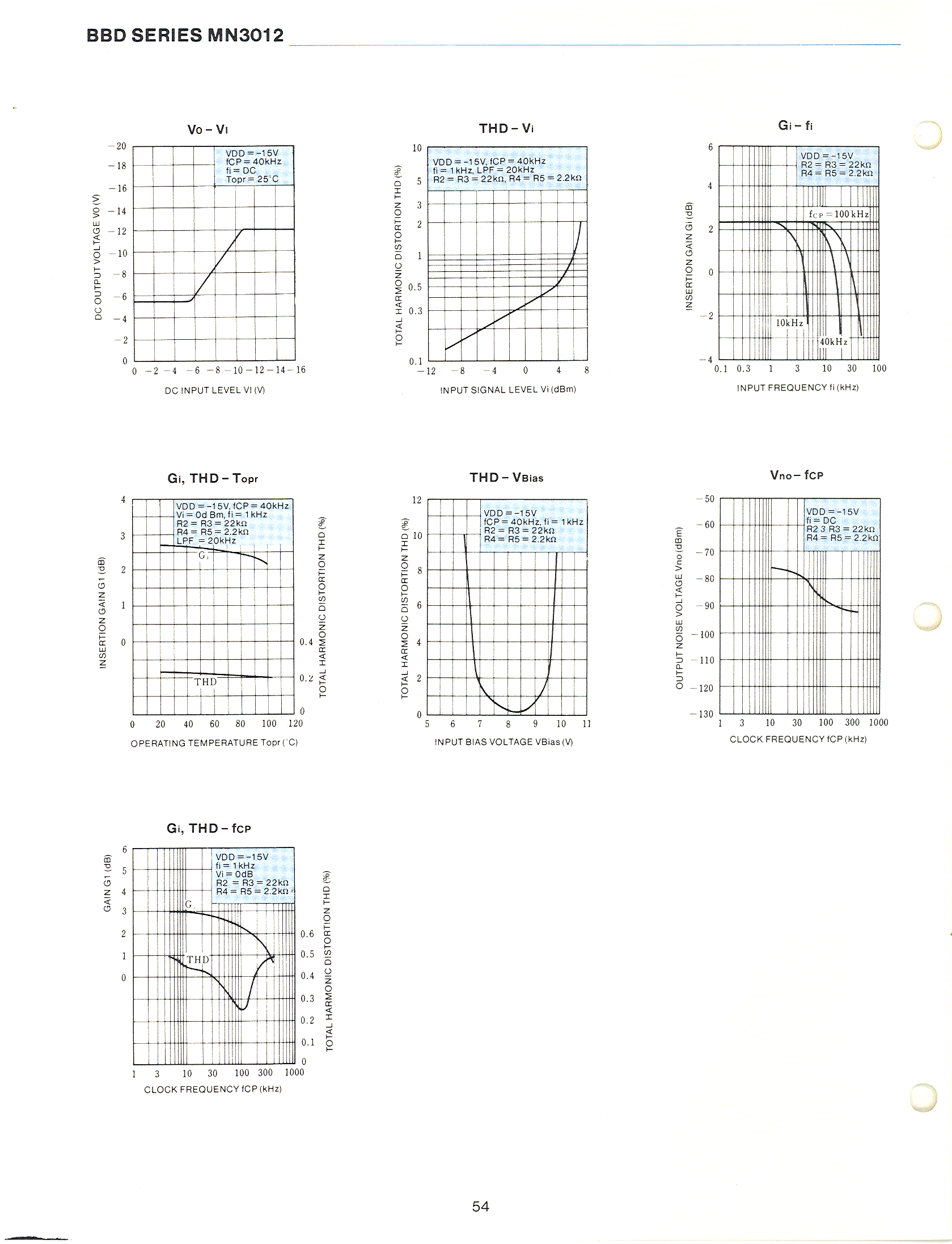

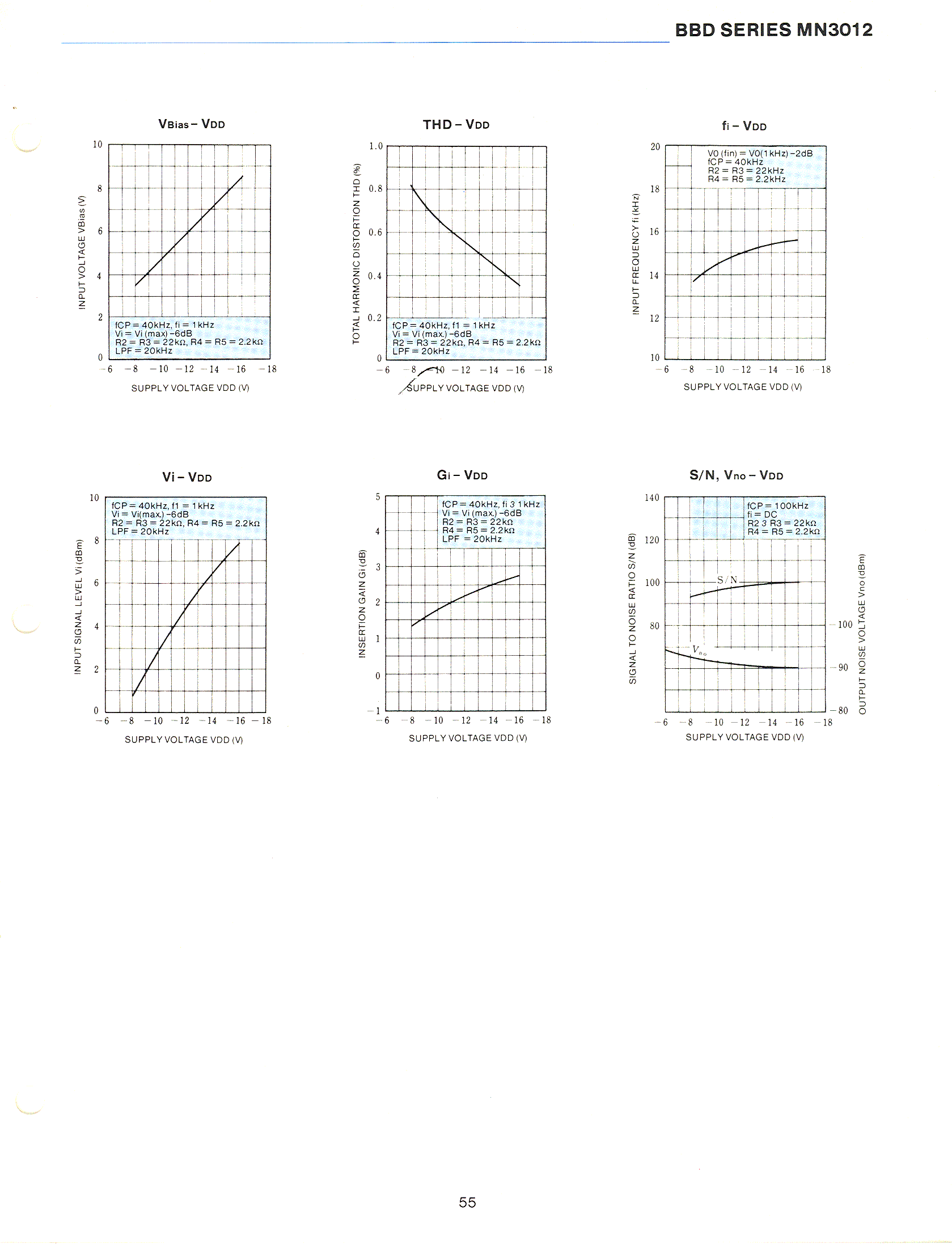

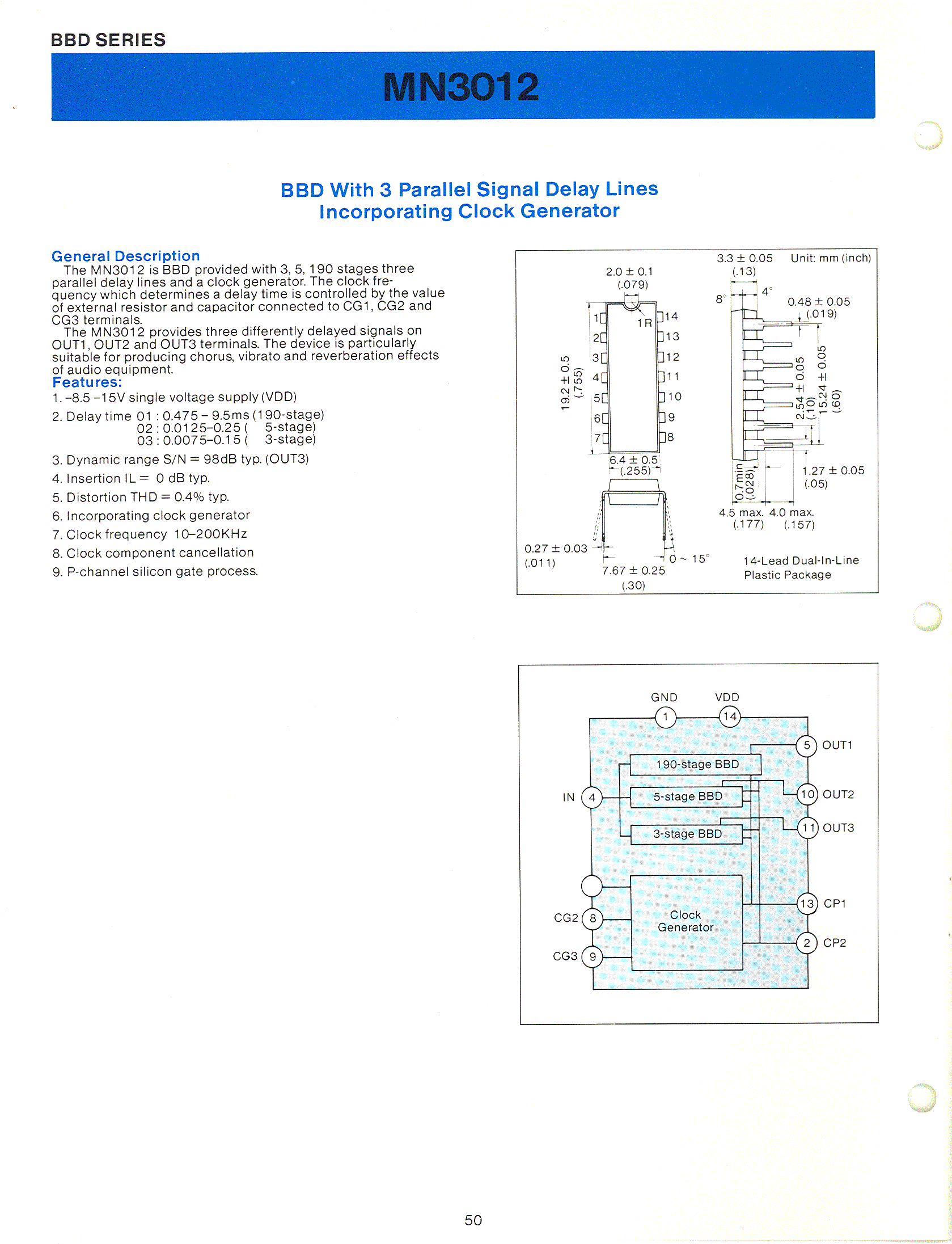

Page 50 MN3012
Page 51
Page 52
Page 53
Page 54
Page 55

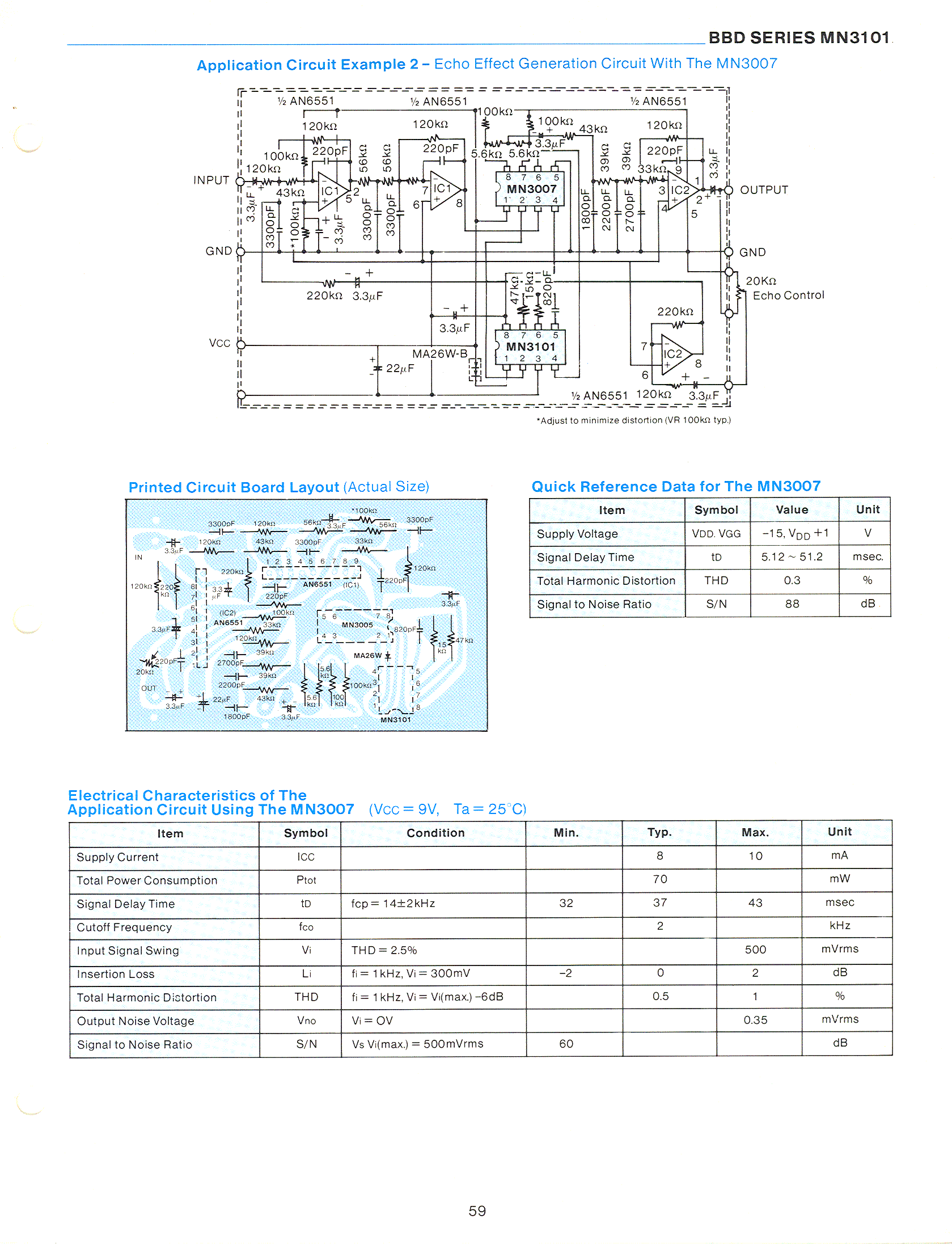

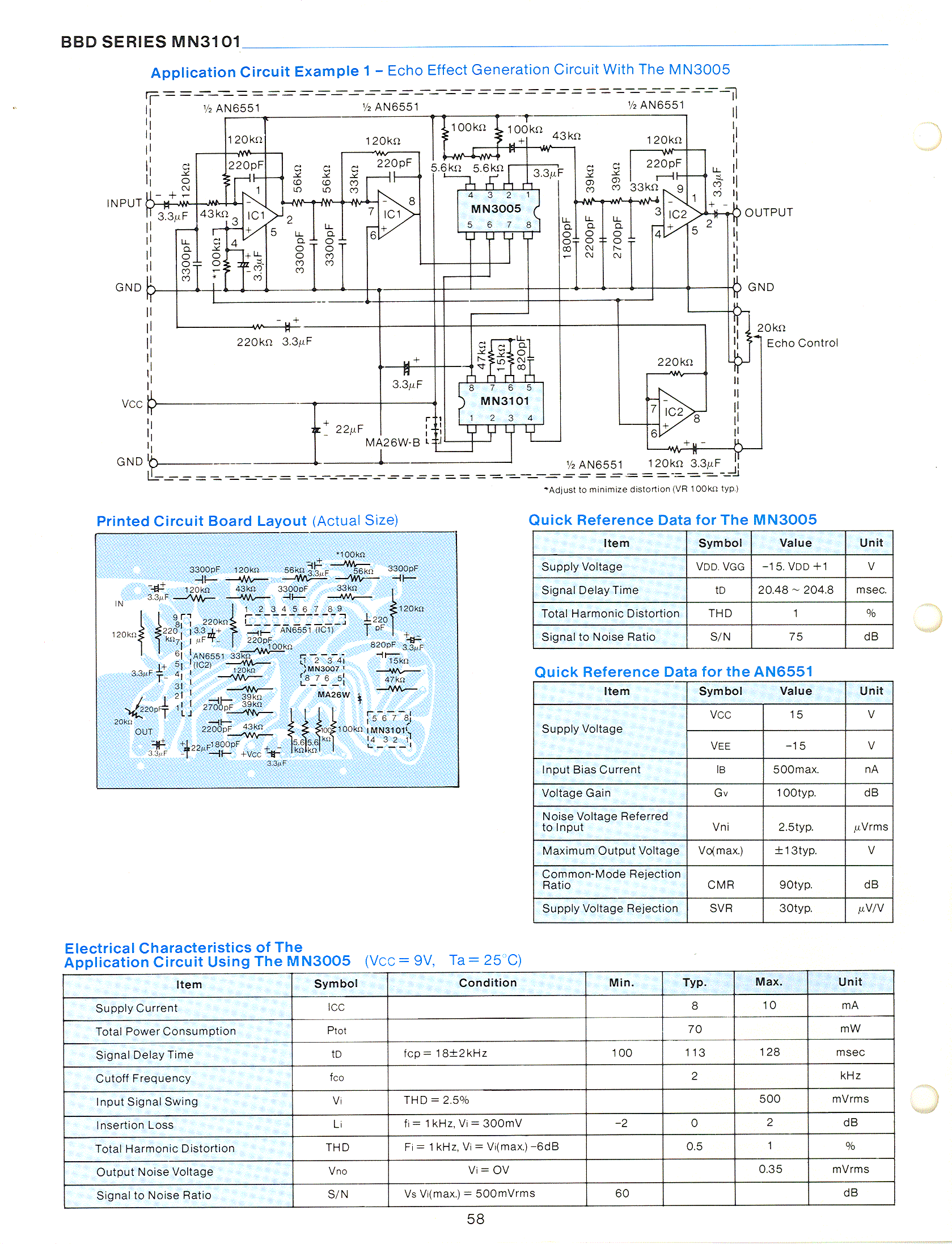

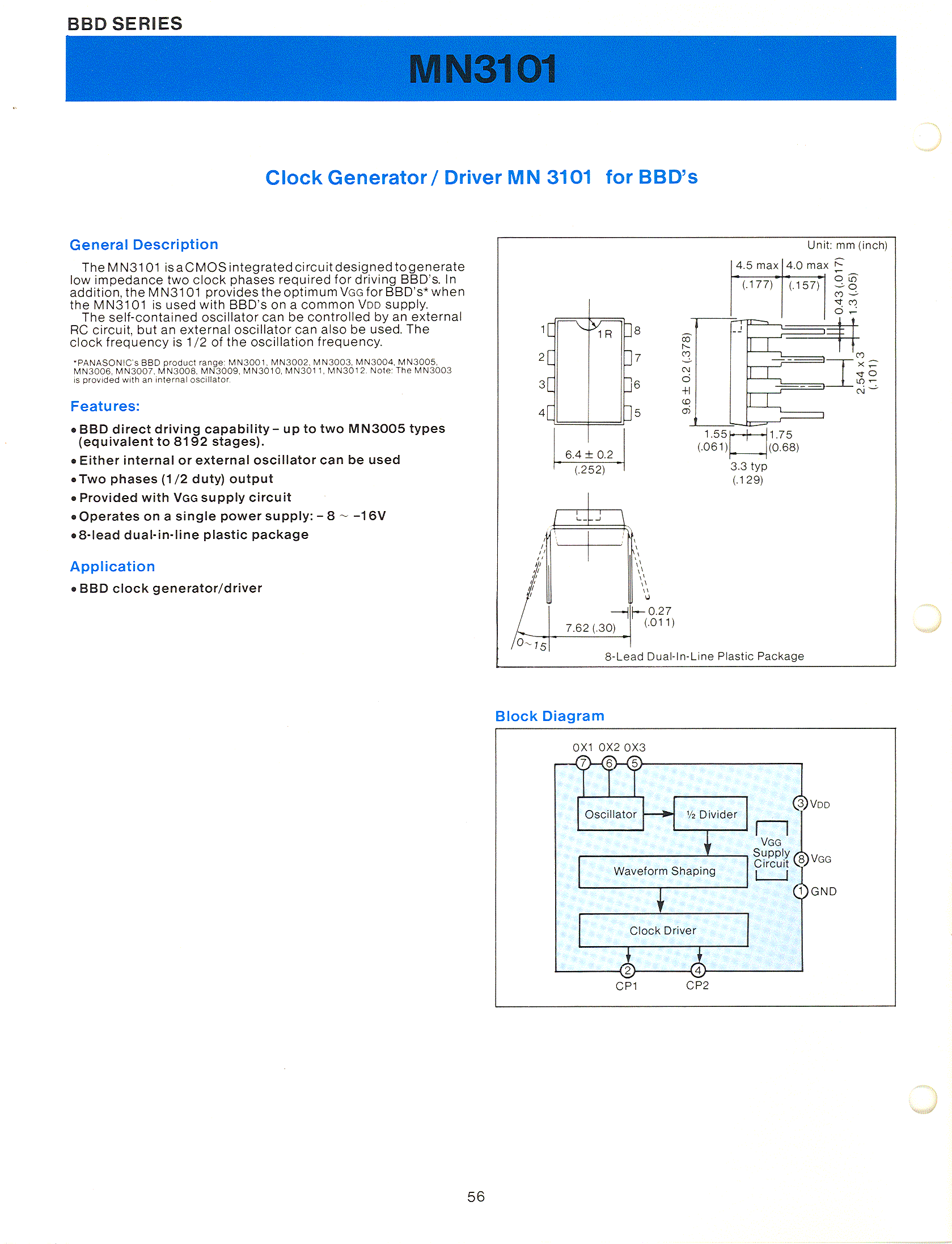

Page 56 MN3101

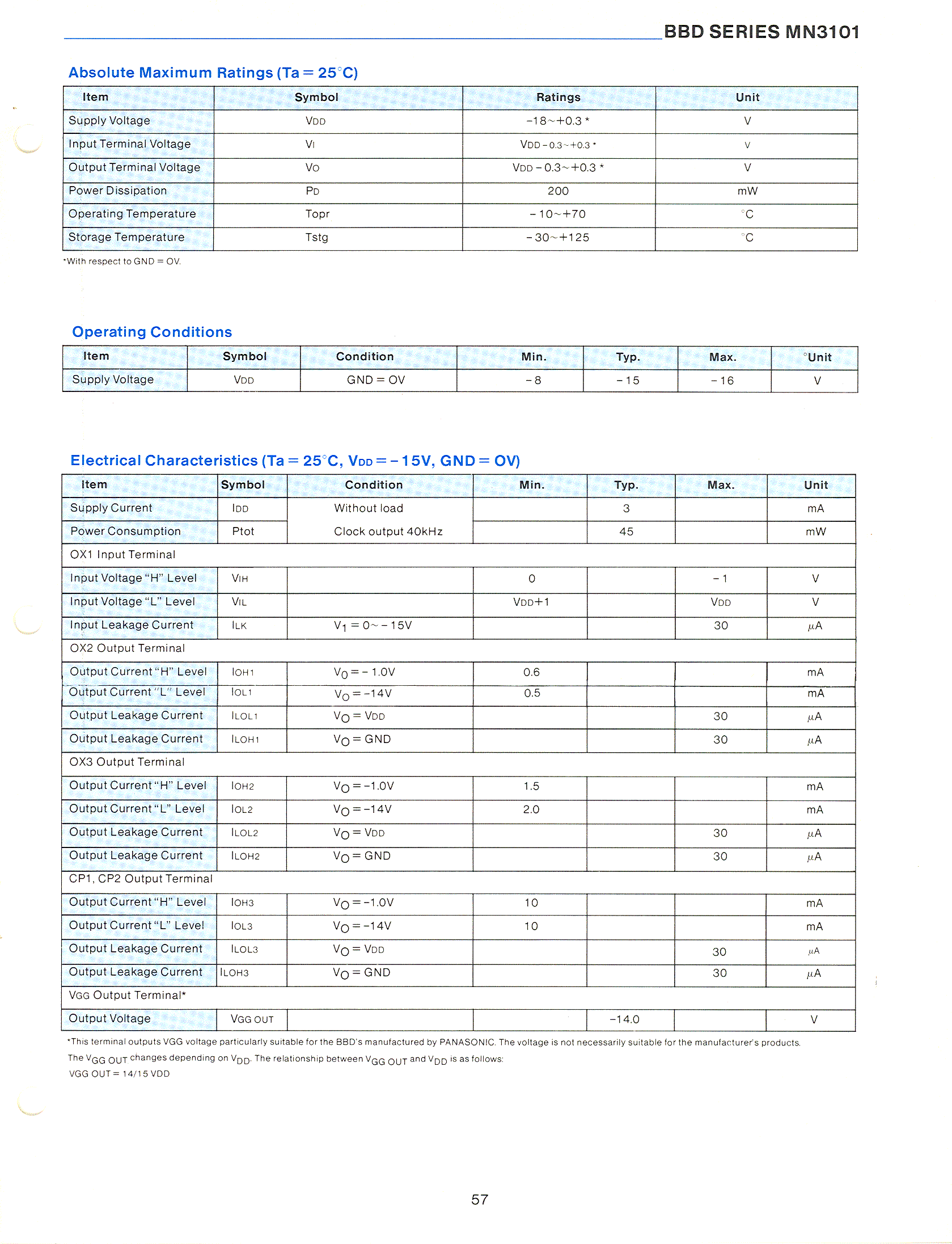

Page 57
Page 58
Page 59
Page 60

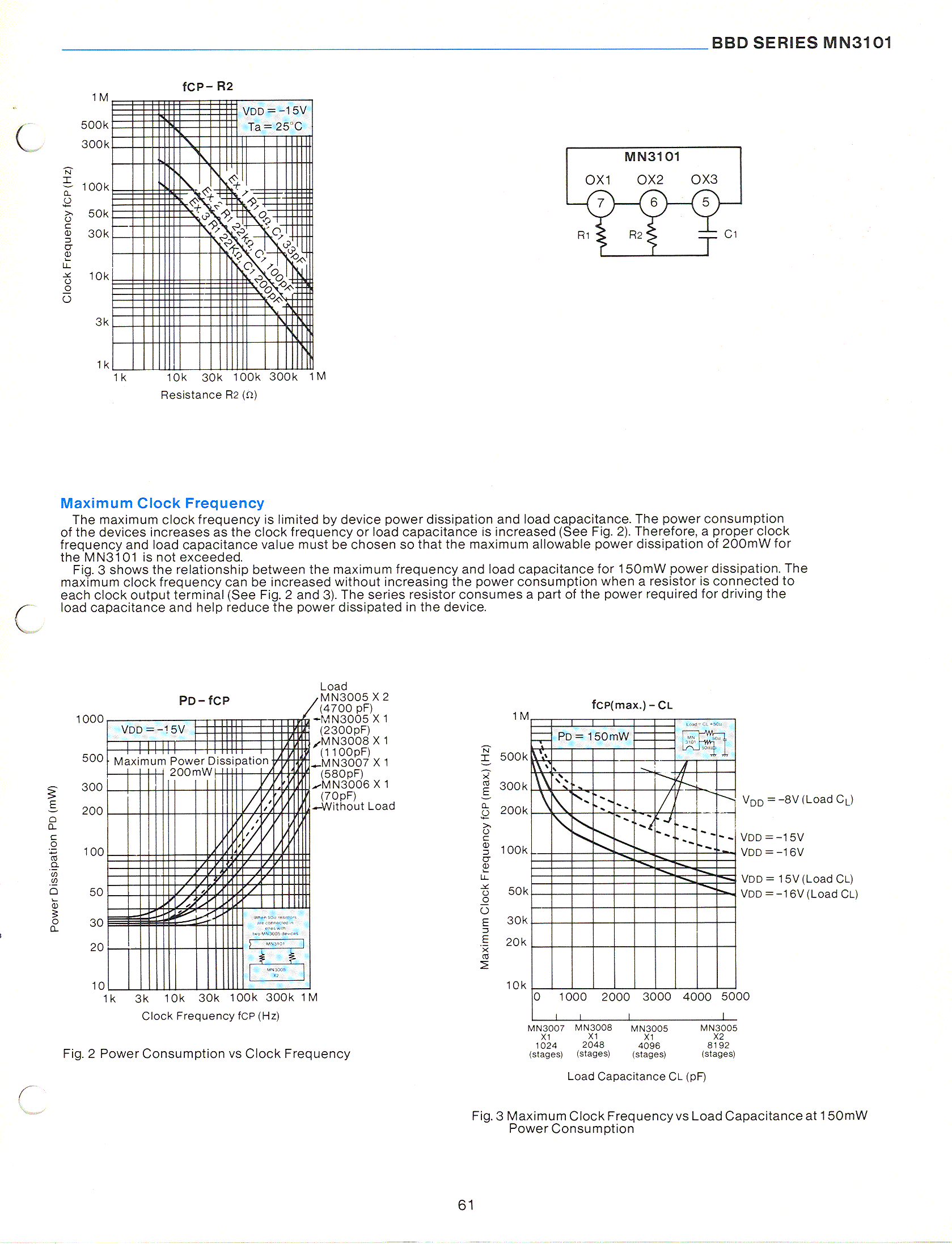

Page 61
Back Cover
