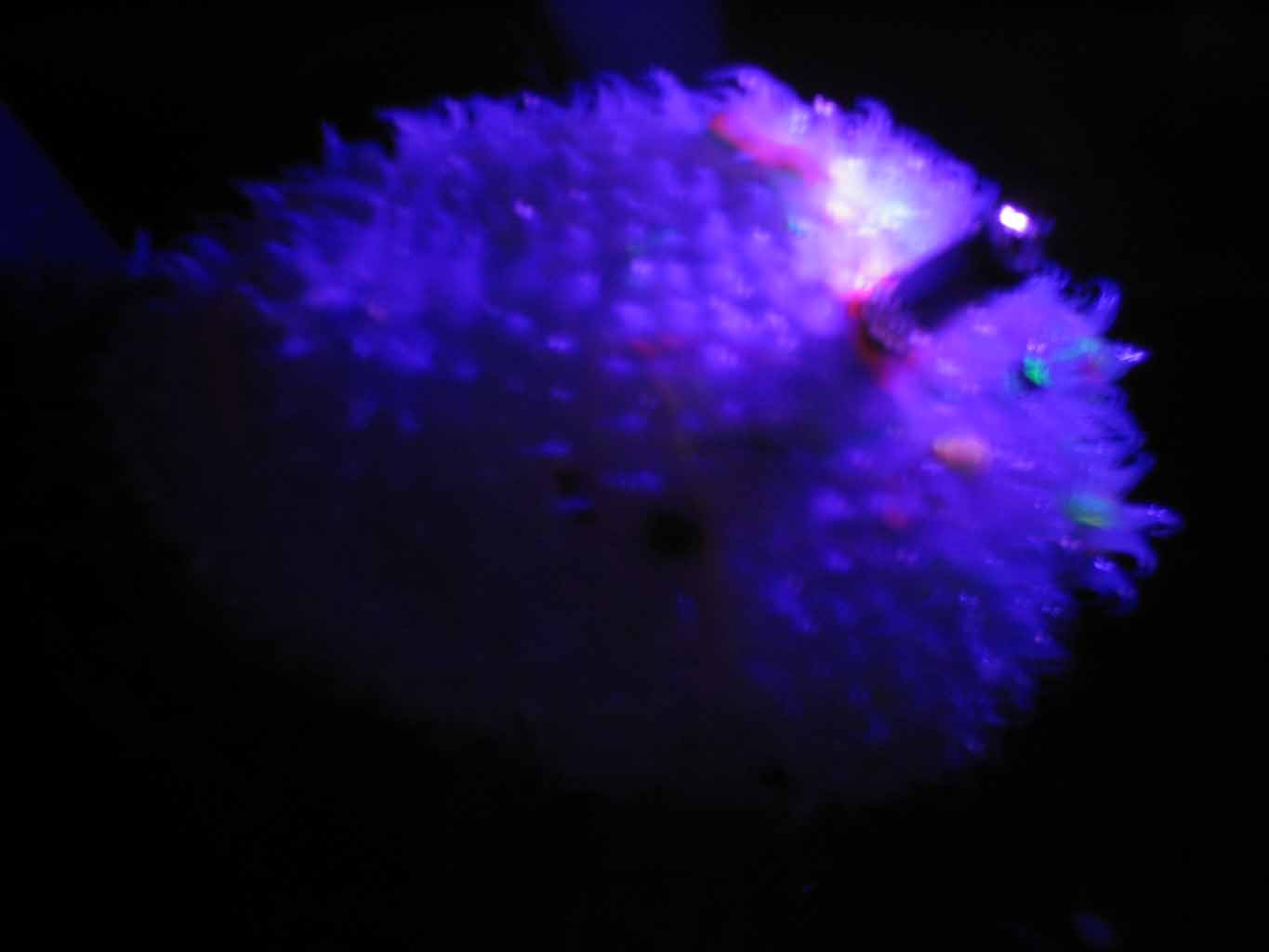

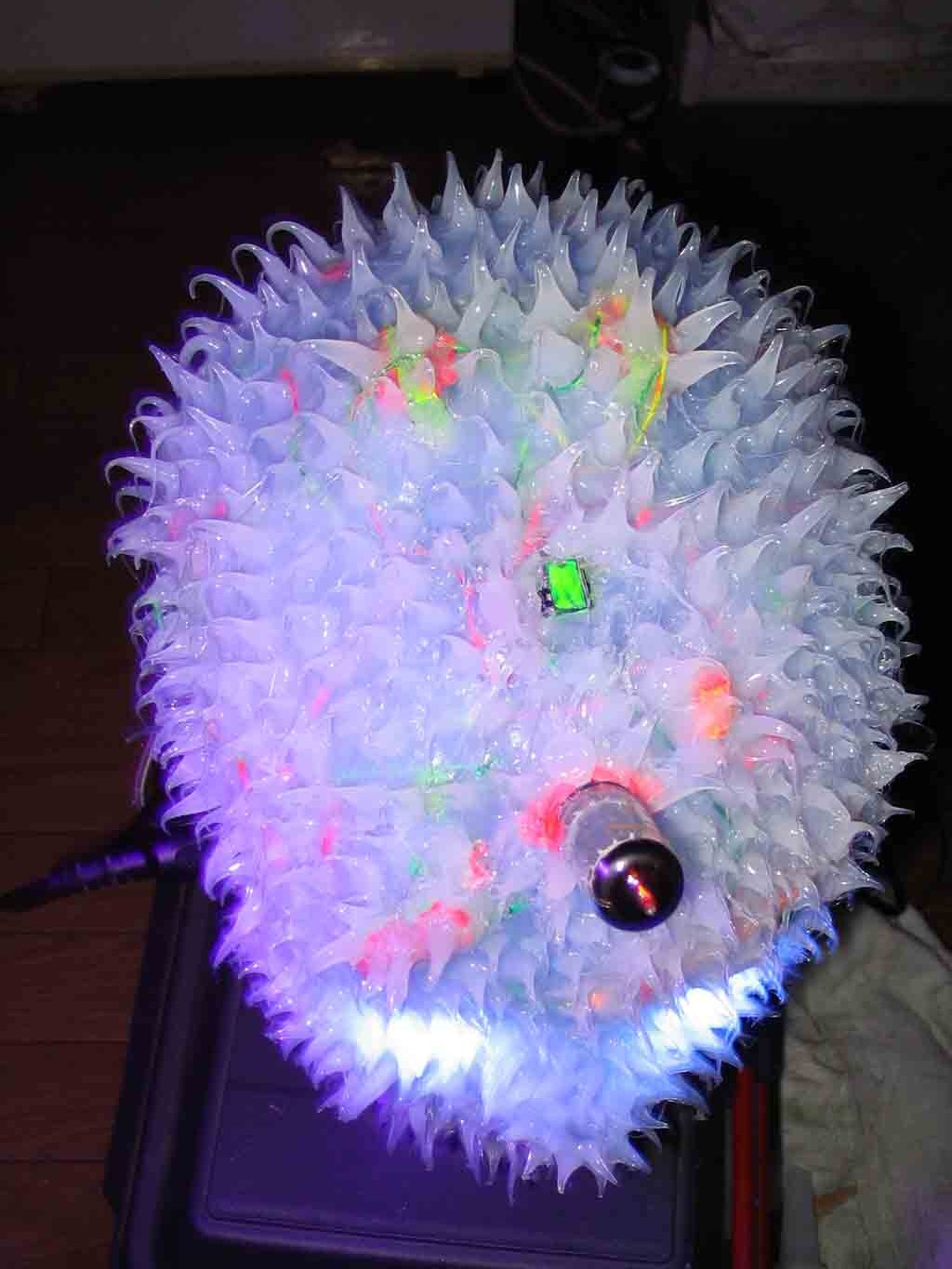

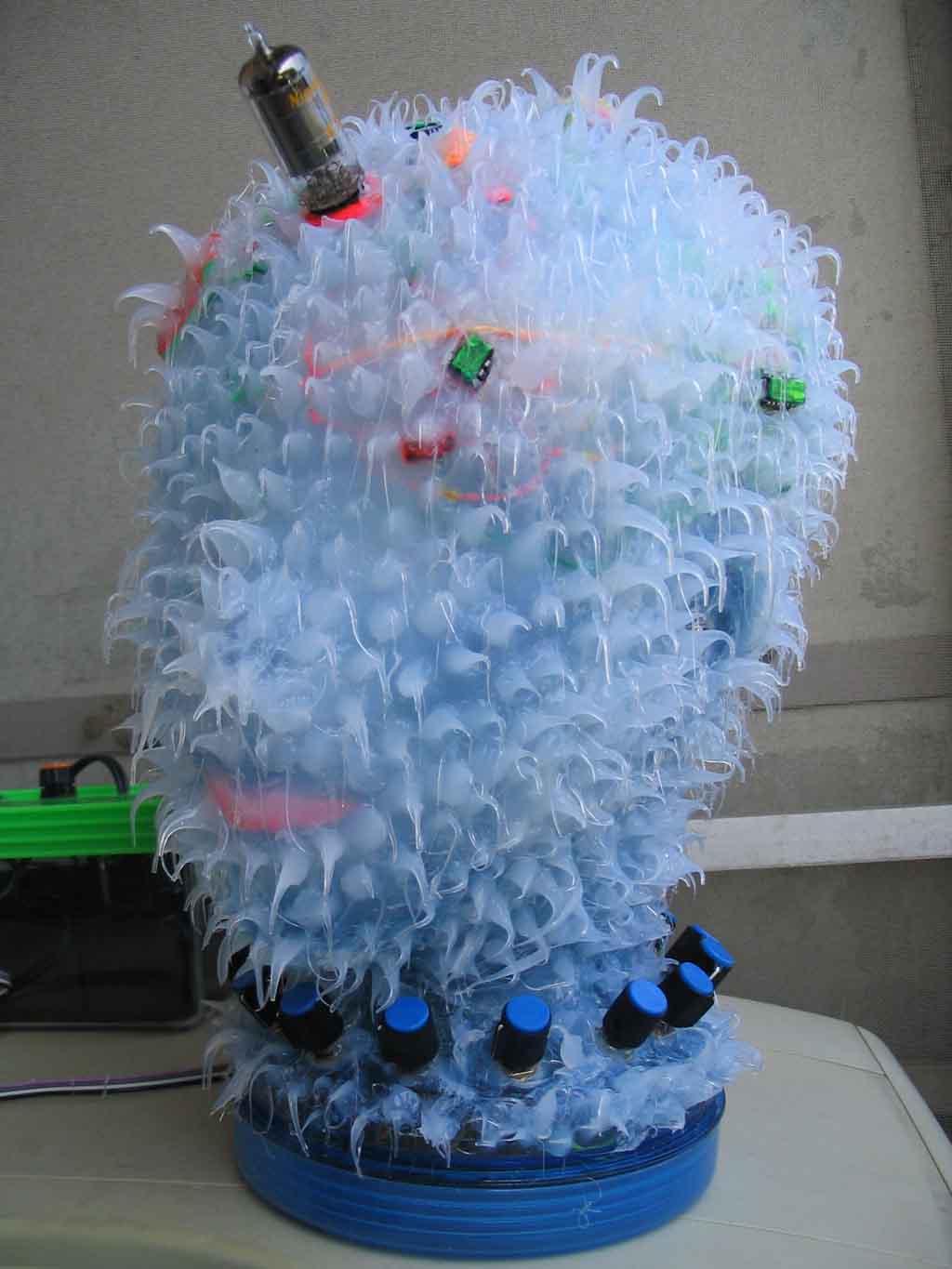

may2005 - its still running well and will be appearing at gunma full moon parties this summer. i built this for DJ Wobblyman and his live set - Clutch77.

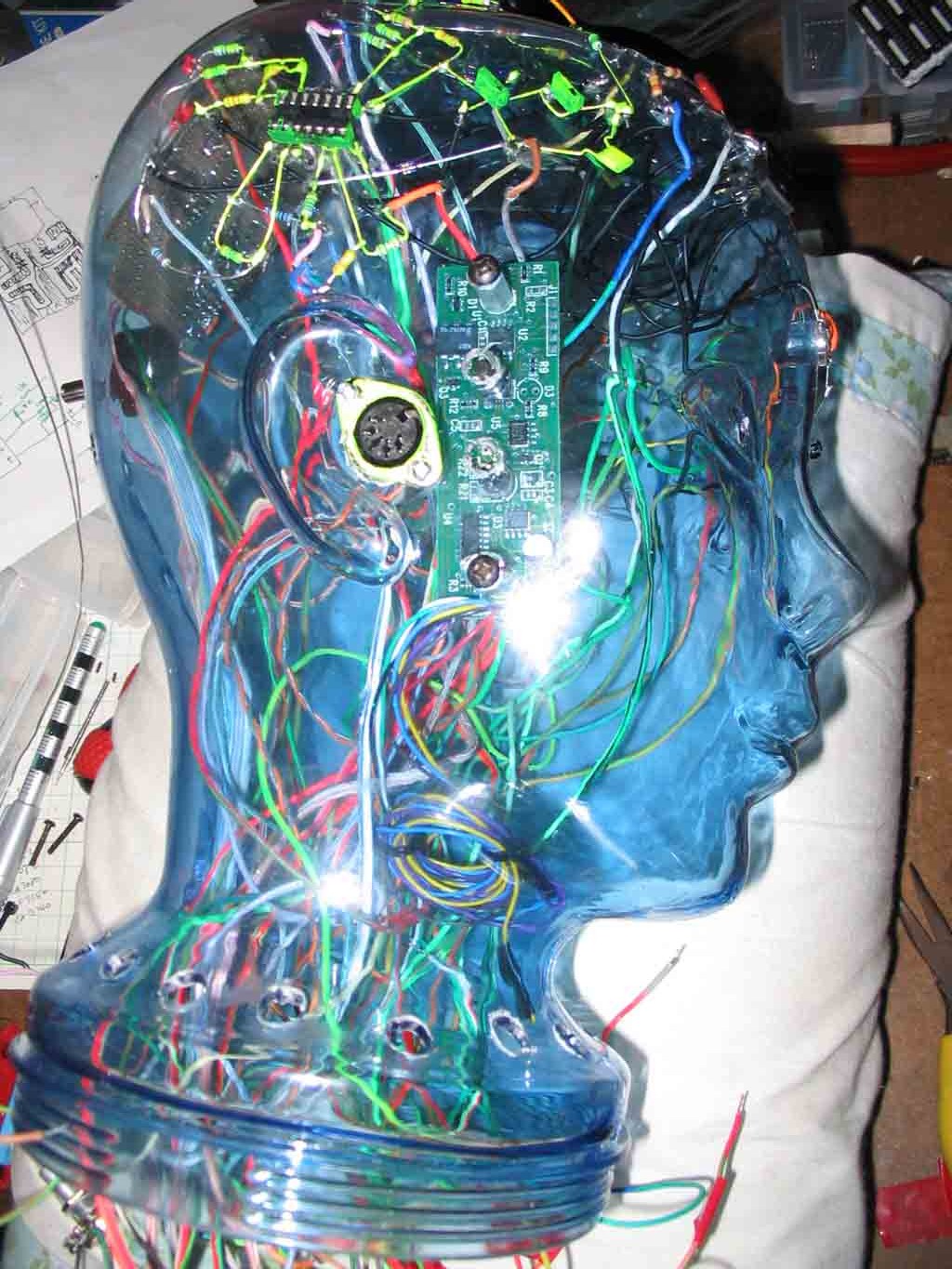

midijack midi2cv - this one has suffered in my hands but keeps on ticking.

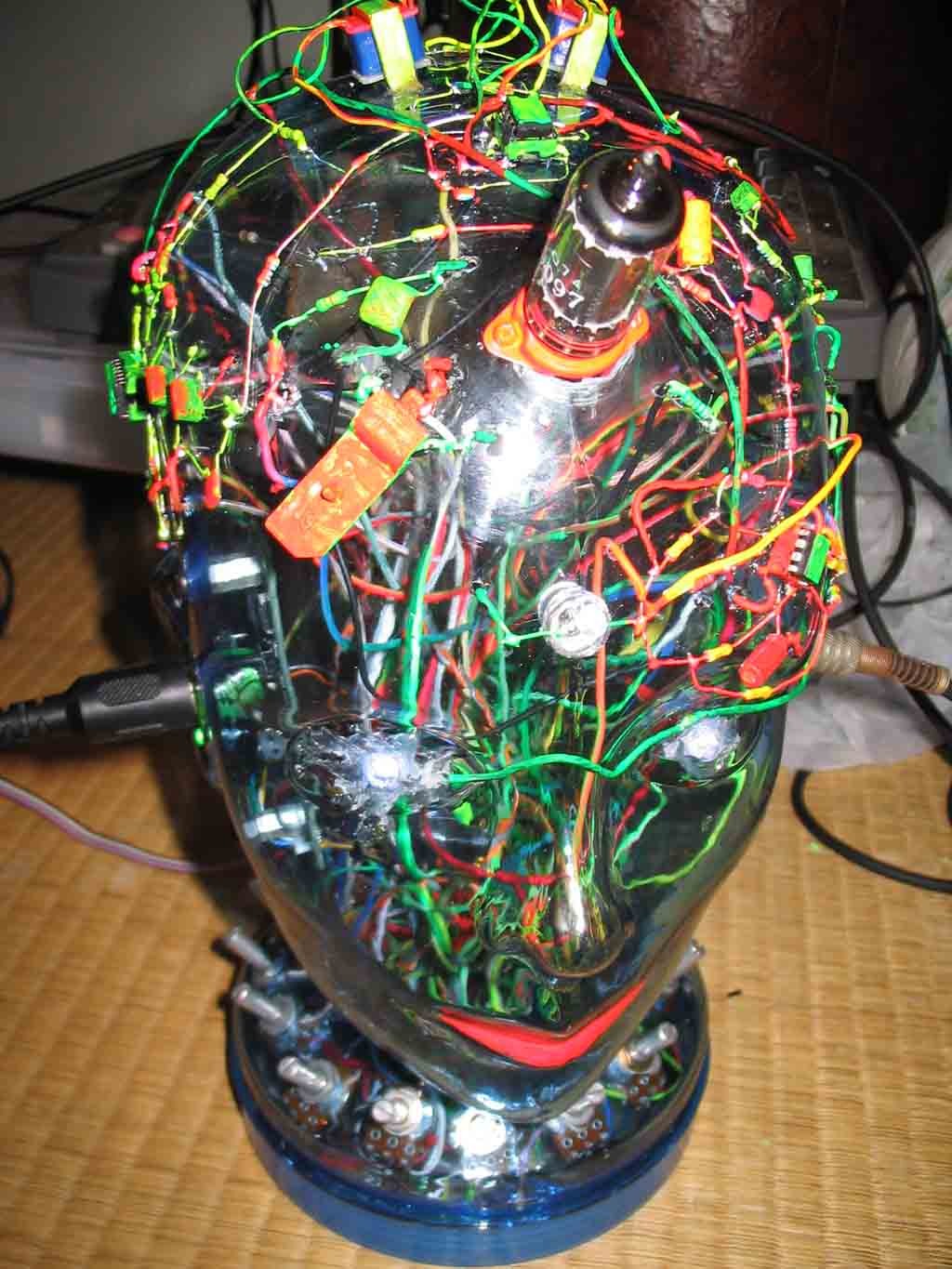

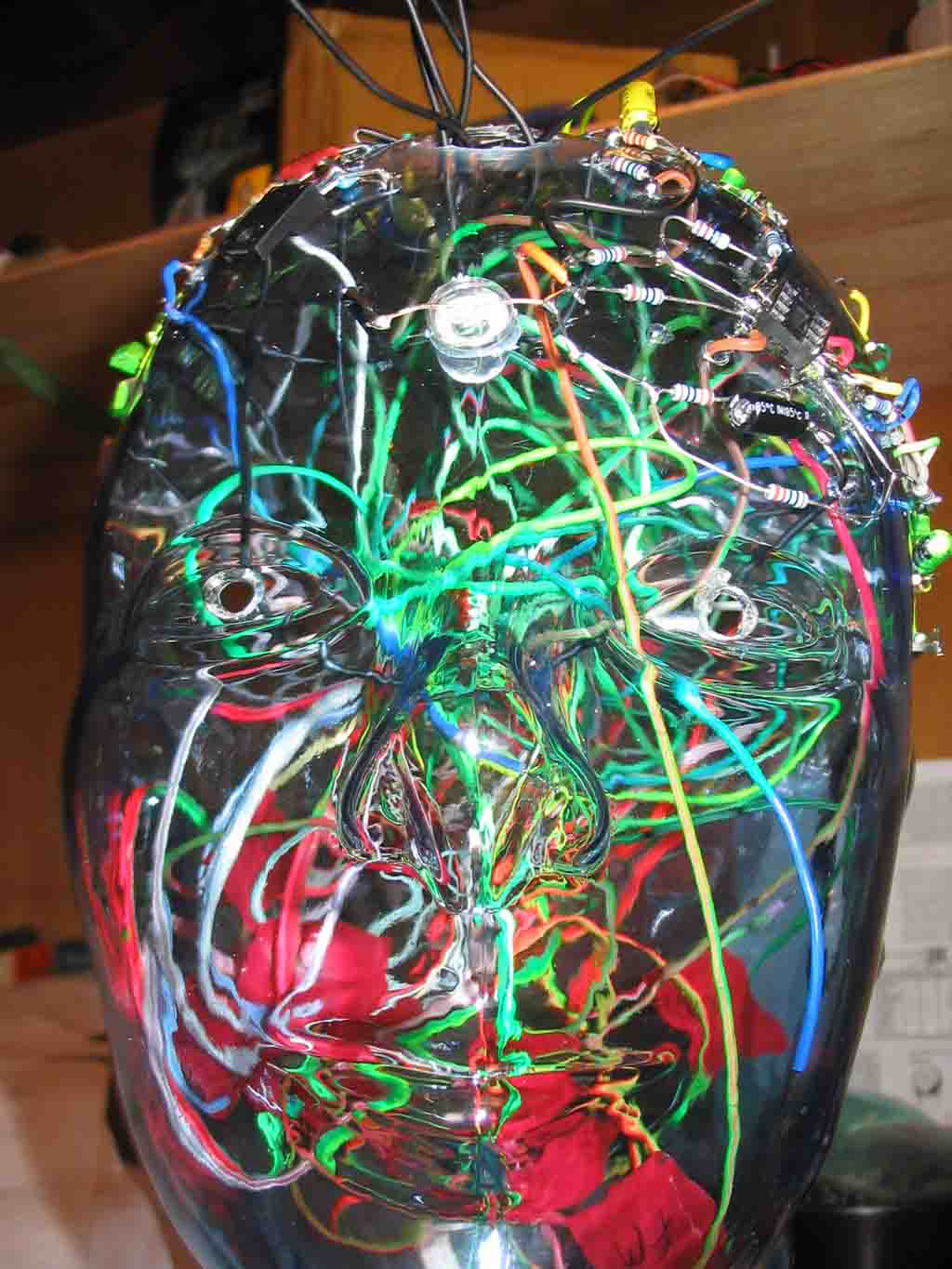

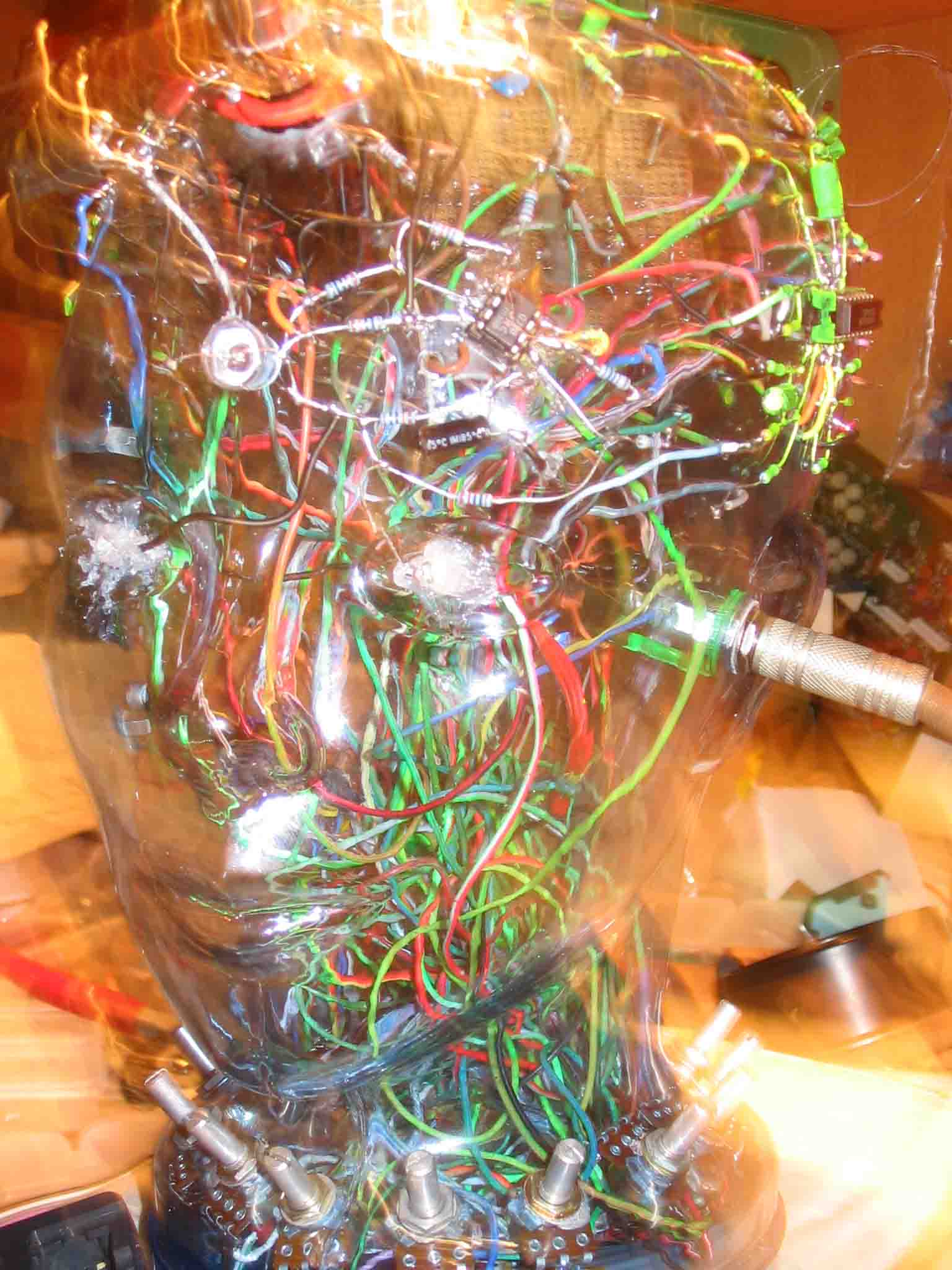

has a 555 VCO running thru a wave converter, then switchable to a passive ring modulator or a CGS basic wavefolder

also a sn76477 noise chip, driven by the midi trigger signal.

also a simple EG, LFO, CGS tube VCA and mixer.

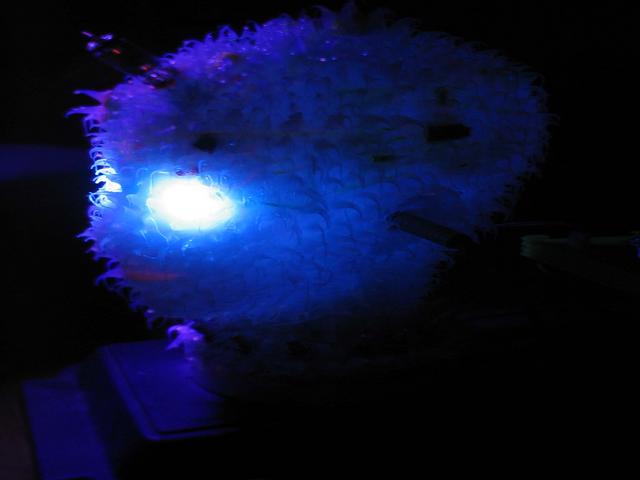

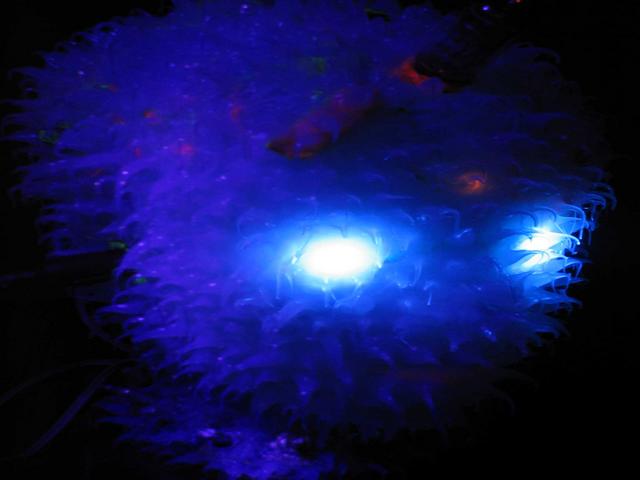

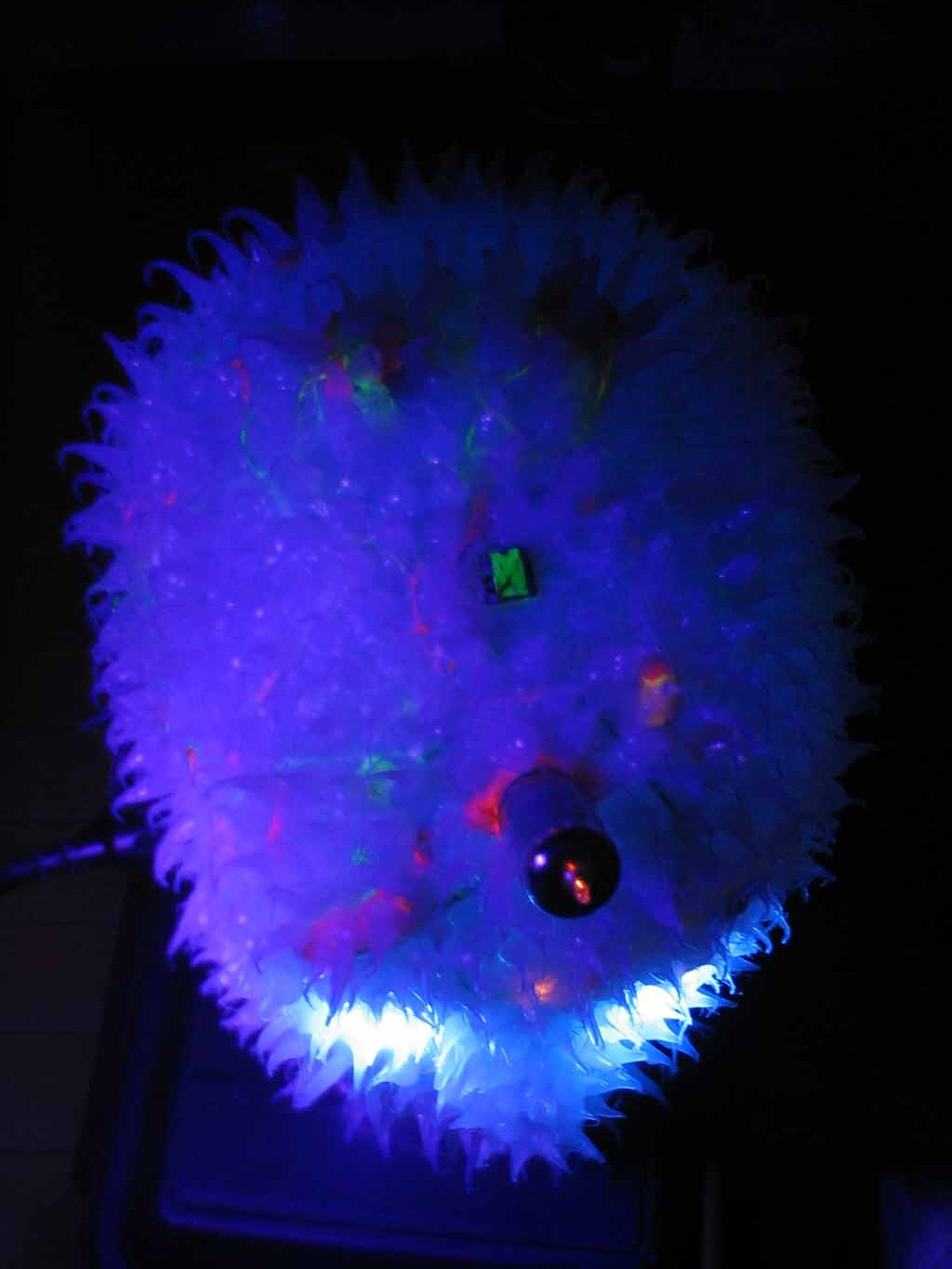

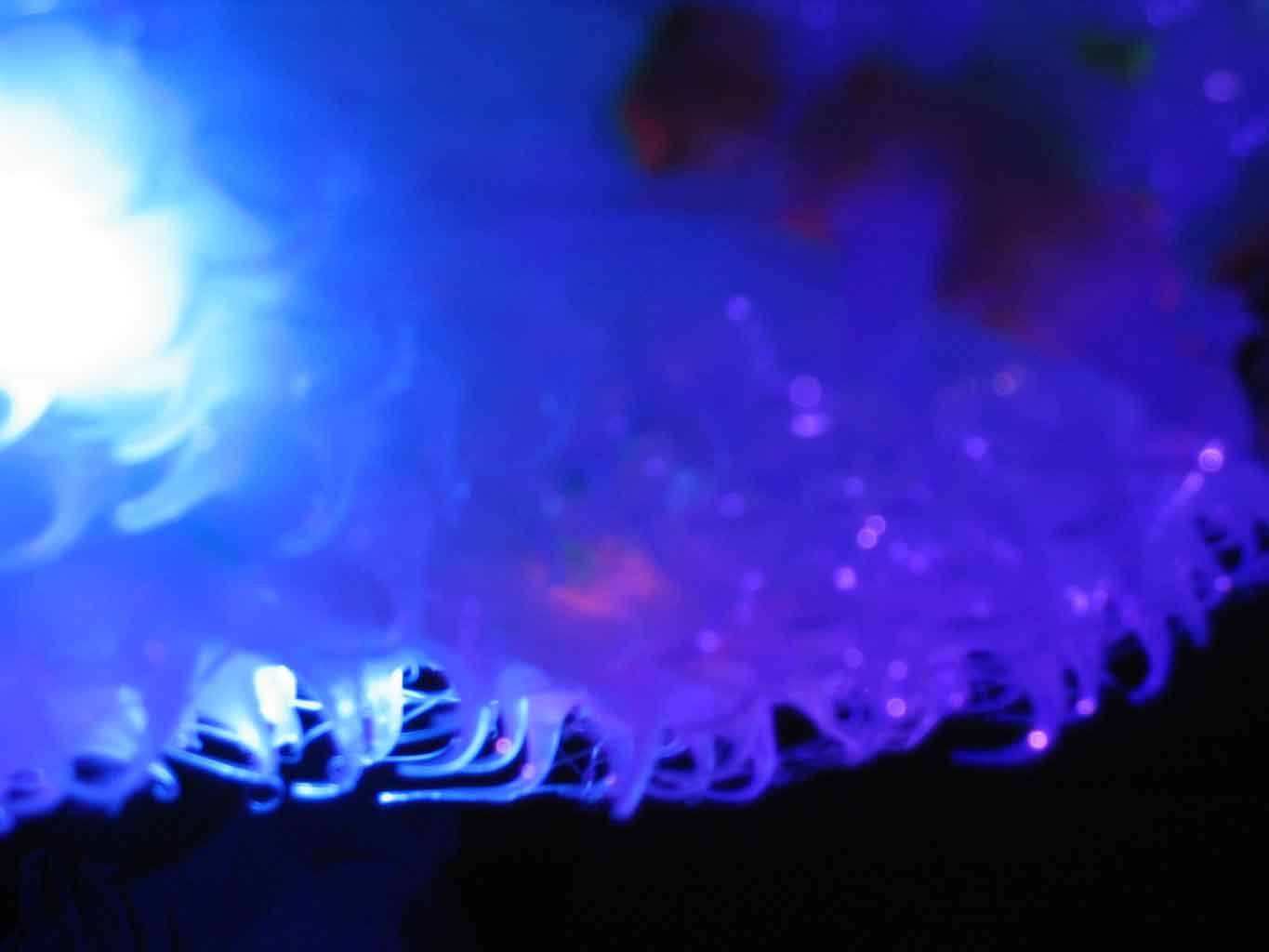

the eye leds are driven by the EG, so can pulse quite nicely depending on the attack/decay settings

its a little freaky being in the same room as this thing.

Thanks to Ken Stone, Ray Wilson and John Blacet for sharing such excellent designs.
