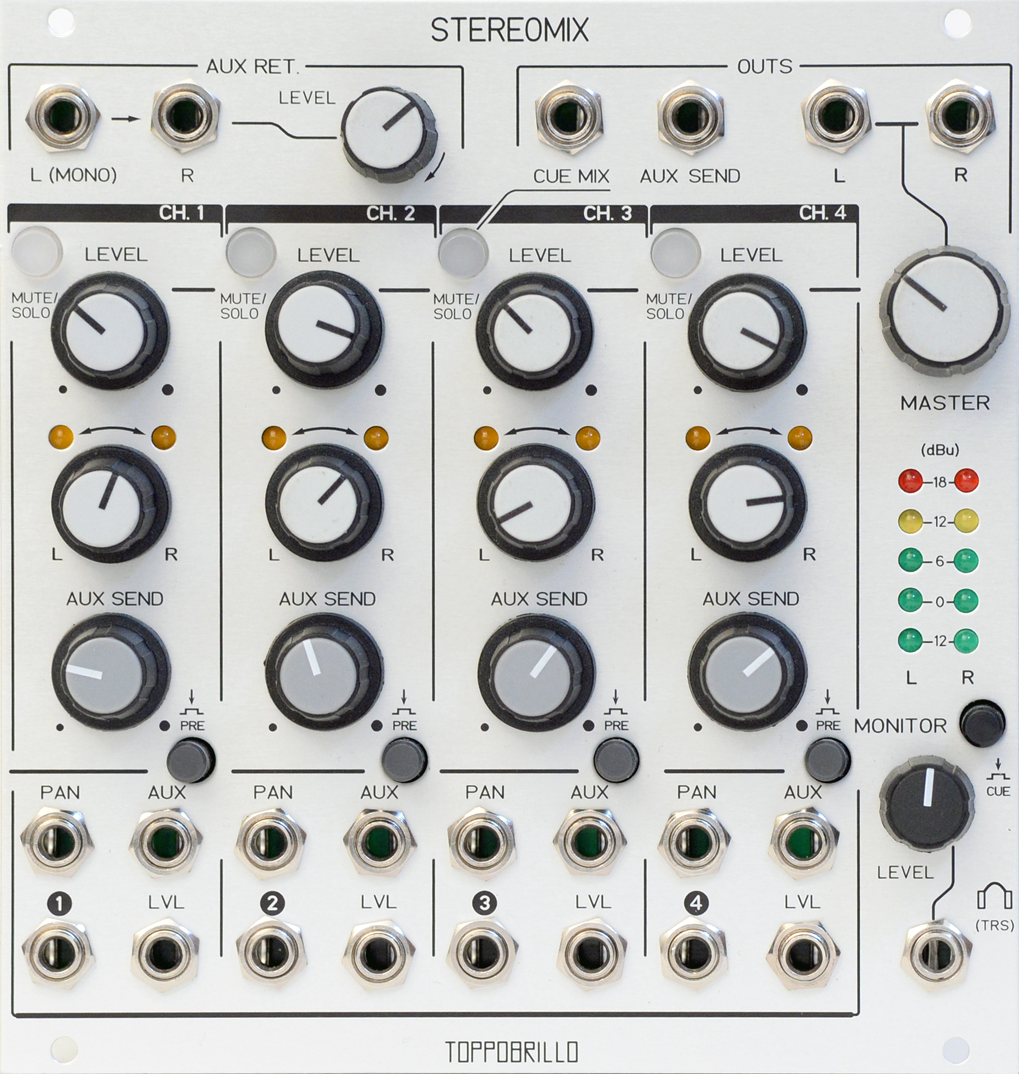

• Stereomix

    VOLTAGE CONTROLLED STEREO MIXER


    4 fully-featured input channels, with voltage control over LEVEL, PAN
    positionand AUX SEND level.

    Pop-Free Muting | Cueing | Soloing. (long press on the LED Mute Switch
    enables SOLO for selected channel).

    -3dB compensated "constant power" pan law.

    Stereo Aux Return with level control ("L/Mono" return normalized to "R"
    return for Mono if "R" is unpatched). Extra gain available for outboard
    effects.

    "Cue Mix" output available for use as pre-listen, a second FX send
    channel, alternate mix, etc...

    AUX send can be switched to PRE or POST fader for each of the four
    channels. -10dB pad available for aux send via jumper.

    Loud and super clean stereo headphone driver allows monitoring of either
    "Main Mix" or "Cue Mix" which allows for previewing input sources before
    adding them to the Main Mix. This can also be used to link to line level
    TRS outboard recording/processing devices, stereo send, etc...
    Independent level control of both headphone and main mix.

    Master volume control and dual 5-segment VU meterin​g.

    Efficient design. Relatively low power consumption and very low-noise/
    low distortion audio path. Audio AC coupled through low-distortion "audio
    grade" film capacitors and a very low-noise opamp.


    CHECK OUT THE MANUAL


    MODULAR GRID

    - 24HP Eurorack format
    - 1.375"/ 35mm deep
    - +200/-120mA average current draw

    AVAILABLE NOW @ these fine distributors
