![]() hi there! thanks for visiting. Please enjoy some pictures and sounds of my synths. sorry 'bout the cluttered layout.....getting there..below are a few links to more detailed pics of some synths. Jan2007 MINISYN. Korg EA1/ER1 trigger out mod Aug 2008 TUBE SYNTH #2. Aug 2008 EMSYN. * PINKY GALLERY * TUBE SYNTH SEQUENCER(Milton/Superseq) 1st modular synth DJ Wobblyman's HEAD |

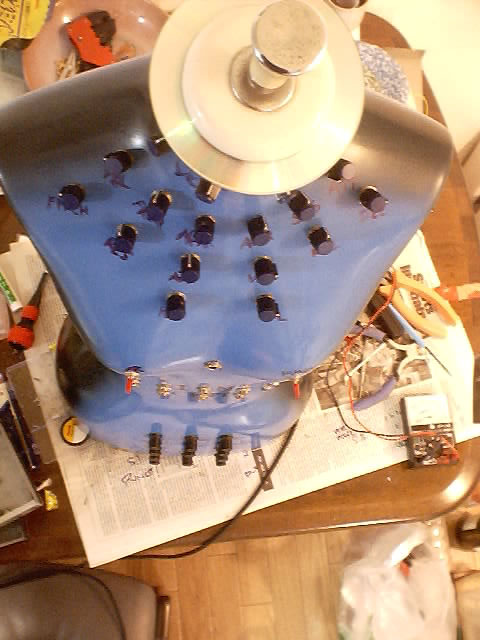

![]() pinky has mostly CGS boards - gate sequencer, with preset and cv add-ons, analog shift register, digital wavetable with numitron display, Harry's morph lag, digital noise, 2 vcas, steiner vcf, 2 bandpass filters, passive ring modulator, envelope generator, joystick-nipple, super psycho lfo, psycho lfo and dc mixer. cheers Ken! Also Paia dual VCOs and modulator. |

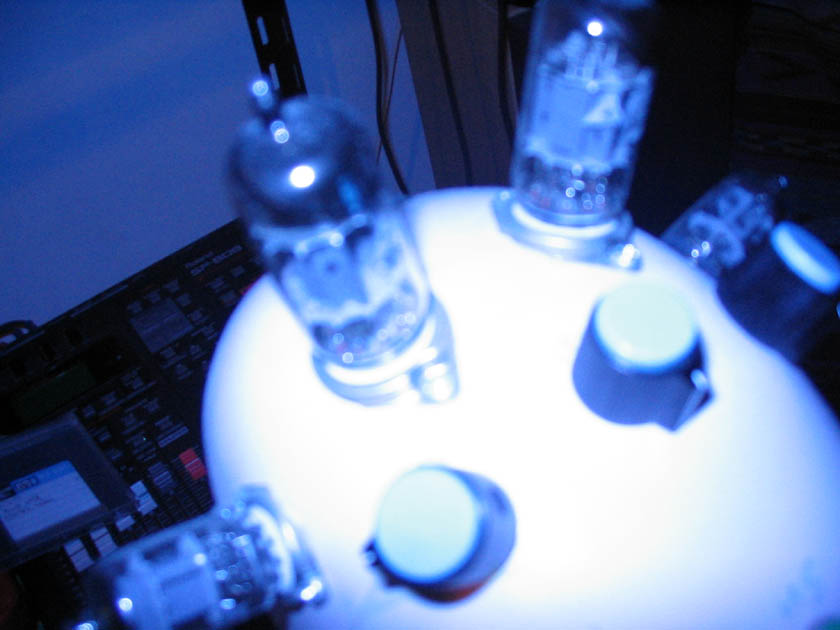

![]() Paia tube pre-amp and two CGS tube VCAs |
![]() update 12/2005 picture is from a CGS super psycho lfo. ive had a few requests for sounds, inspired by 'the Residents' commercial album, i aimed for 1 minute tracks. fun with a CGS wavetable 1 - this is not a test 2 - this is a test |
![]() more joyous tunes genki? |
![]() tube synth - 2 VCOs, 2 filters, VCA, neon LFOs . This is a bass drum into a CGS sub-oscillator rubbery skies |

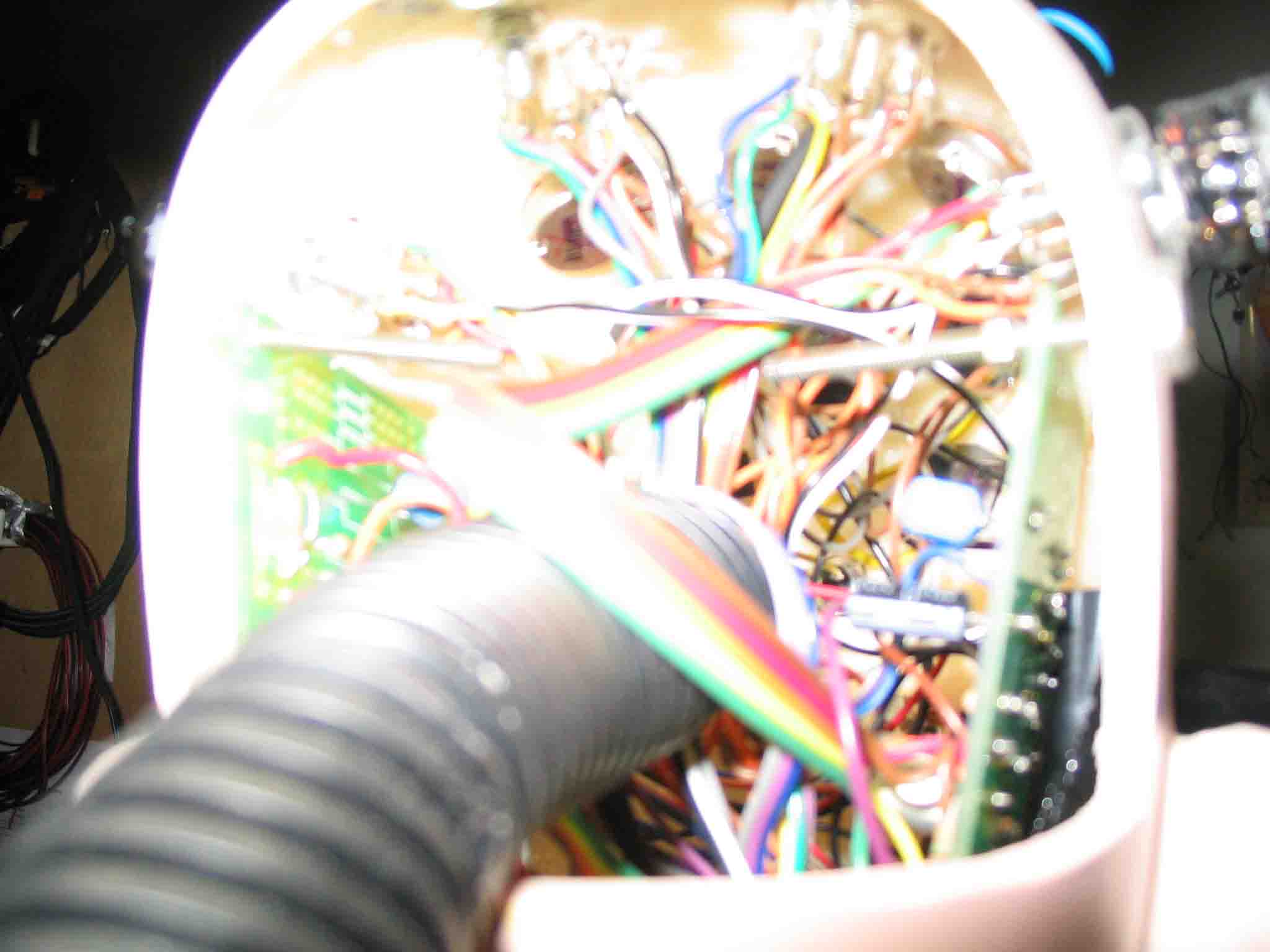

![]() The insides of the frequency shifter panel. This track is a drum processed by a CGS simple wavefolder, plus a Farm VCO plugged into a CGS wave multiplier bathing with you |
![]() another view of the freq shifter. A SN76477 driven by a cloned Buchla 258 VCO provides the happy melodies of this number hmm tangy |
![]() if you want to say hi - please write to pinkysynth [at] hotmail [dot] com . |
![]() CGS gate sequencer with preset board (on the left thigh) and CV mod |
![]() |
![]() |

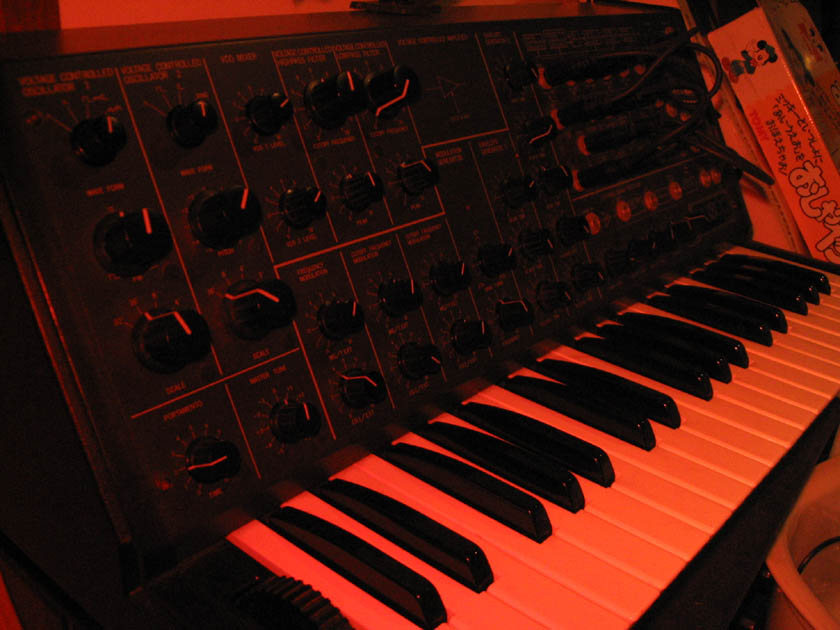

![]() Korg MS20 been in storage for 20 years. the original owner had wanted a moog, so he covered the 'korg' logo with 'moog' one. i haven't the heart to take it off...and its amazing how many people look at it and say "oooh you've got a moog, ive never seen one before" anyway the MS20 is an excellent synth, i'm pretty keen on old korgs (tho i wouldn't mind an old moog or 2). |
![]() vcf heaven! 2 steiners, ms20 clone, vc state variable filter - all from Motohiko Takeda's homepage, including his very compact pcb layouts. along the bottom is a CGS psycho lfo |
![]() VCO panel - 2 EFM VCO4s, Takeda San's VCO3, Buchla 258 clone (!!!) it took me 3 tries to etch a pcb for this but it was worth it, i usually use this Vco to drive my CGS Wavetable |
![]() CGS sequential switch, dc mixer, vc divider |
![]() CGS vco, CGS V8 simulator, 2 Farm vcoIII's (aka Takeda) |
![]() sweet music? |

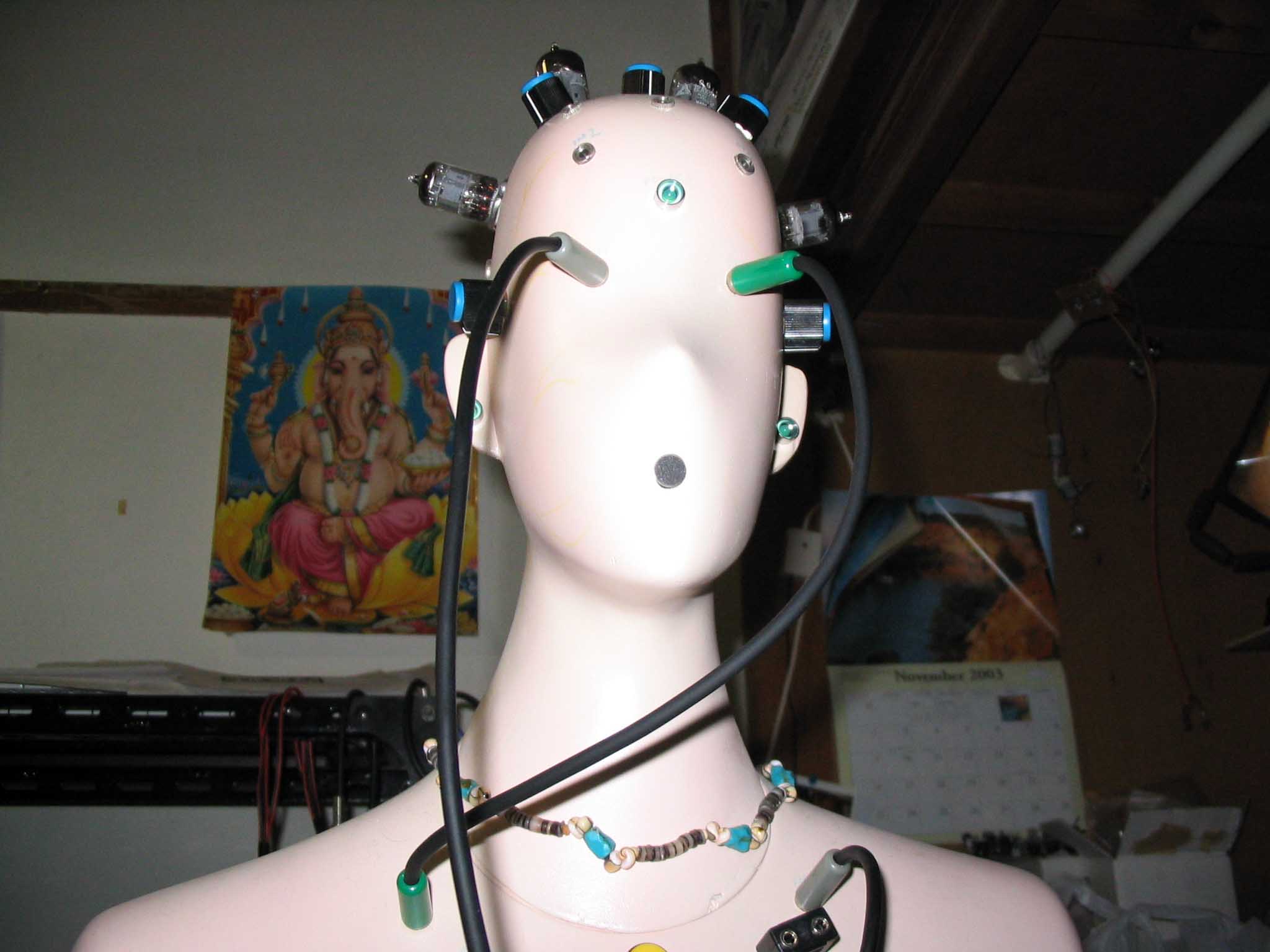

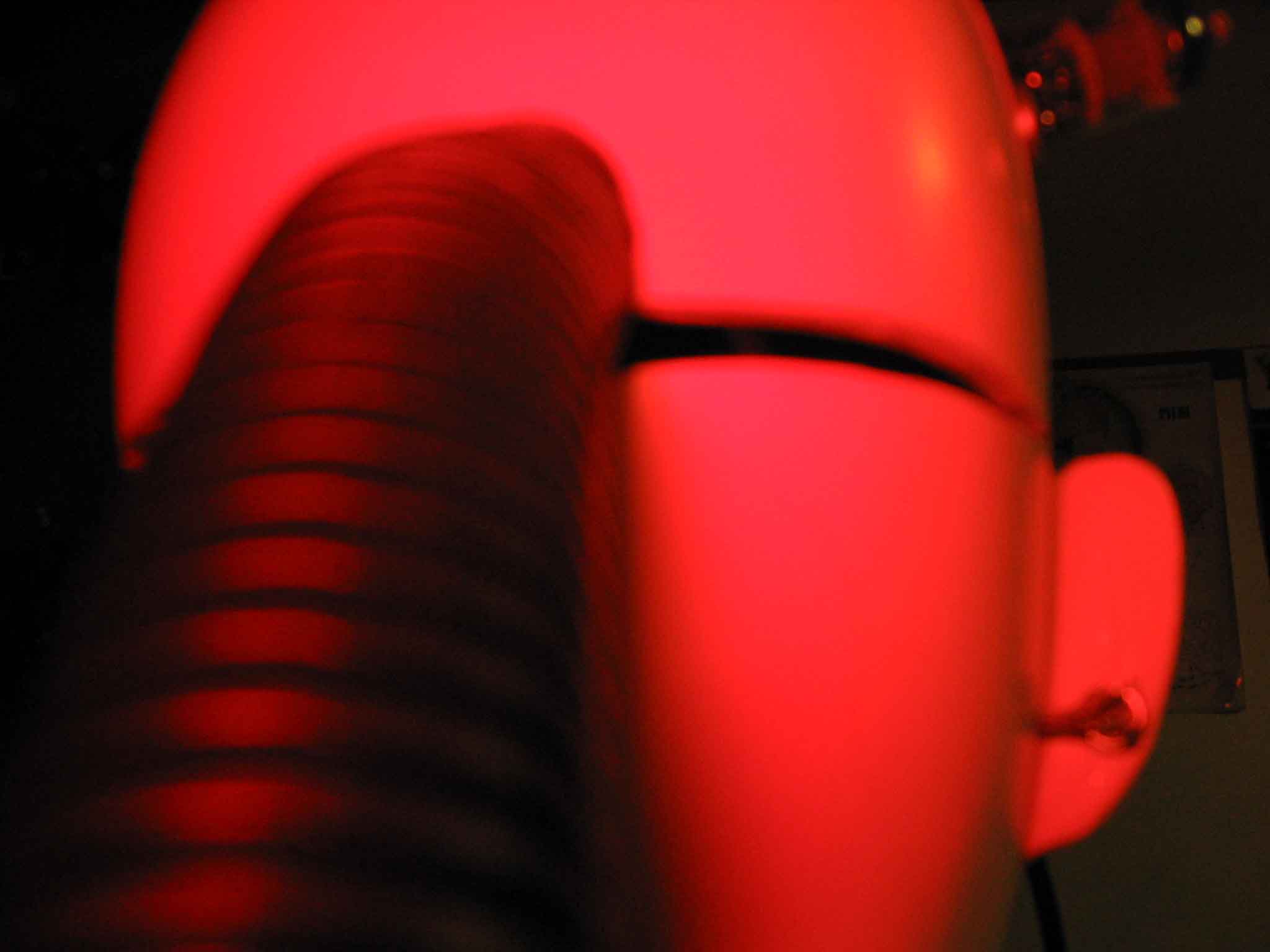

![]() the leds in the eyes are driven by the envelope generator, so can pulse, fade and strobe quite nicely. in the dark, the entire head glows blue. |
![]() Thanks to Ken Stone, Ray Wilson and John Blacet for sharing such excellent designs. |
![]() dawn - post drilling frenzy |
![]() Paia Fatman |
![]() some mods - diodes, sync, 4 LFO's. this was my first electronics project. if you are a total novice, imho Paia Fatman is a good launchpad. |

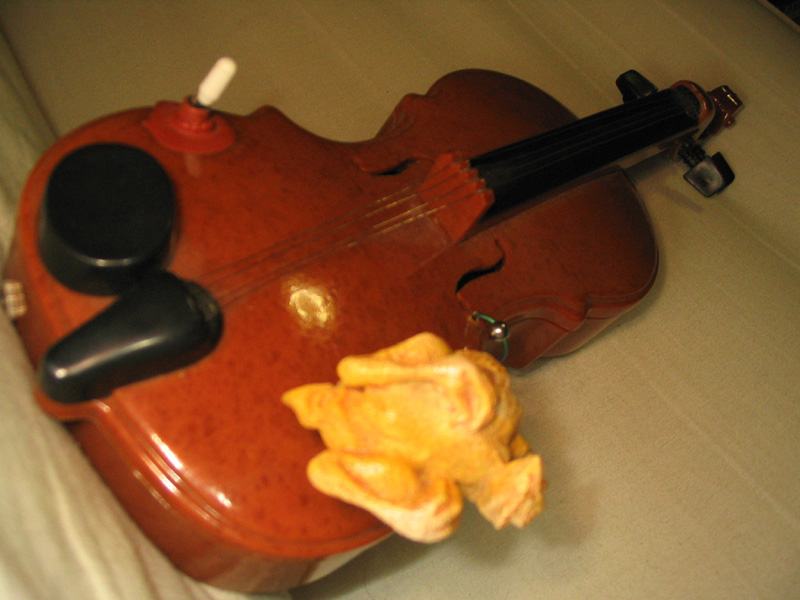

![]() the chickolin - output socket, touch switch for feedback, chicken controls pitch. |

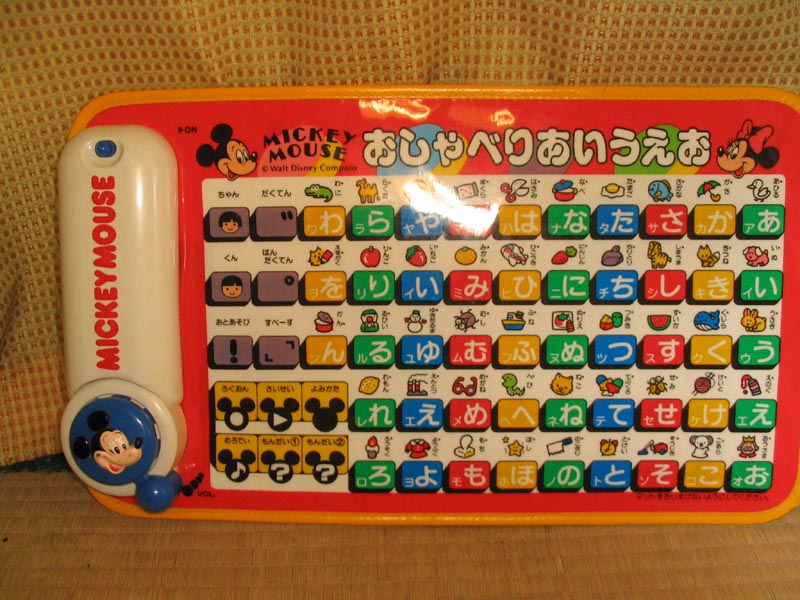

![]() Japanese Hiragana teacher - just type in any sequence and hit play. great mickey voice |
![]() |
